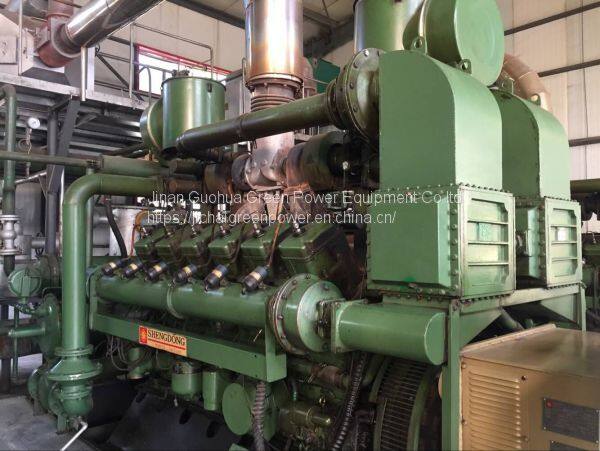

500KW G12V190ZDT-2 NATURAL GAS GENERATOR JICHAI BRAND JINAN DIESEL ENGINE MANUFACTURER

FOB Price

US$ 10000 - 150000 / Unit

1 Unit(Min. Order)

Port qingdao/guangdong
Payment TermsT/T L/C
Delivery Detail45 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SHENGDONG	Place of Origin	China
Model Number	12V190	Certification	CE,ISO9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	Jinan
Weight	1111KG	Dimension(LWH)	1111
Condition	New	Fuel	Natural Gas
Start	Electric Start	Cold Style	Water-Cooled
Stroke	4 Stroke	Usage	Other, ELECTRICITY
Cylinder	Multi-cylinder

Product Description

ENGINE SPECIFICATIO NS
Паспотр
Основные технические парамеры и показатели

тип установки	500GF1-PT
тип двигателя	T12V190Z_L-2
тип генератора	1FC6 455-6LA42
тип экрана управления	FCP1-ESM3-500 T
номинальная мощность(кВт)	500
номинальный ток(A)	902
номинальное напряжение(В)	400
номинальный коэффициент мощности	0.8
номинальная частота(Гц)	50
способ пуска	Электрический пуск постоянного тока 24в
образ регулирования напряжения	Автоматично
образ регулирования скорости	электронное регулирование
образ возбуждения	без щетки
образ включения	трехфазный четырехпроводный режим
образ соединения	Соединение гибкой муфты
Образ охлаждения циркуляционной воды	Бак с вентиляторами
габаритный размер(д×ш×в ),мм	5433×1970×2700
масса установки кг.	10750

2,Назначение : переработка электроэнергия
3,Сфера пользования: попутный газ
4,Габаритные размеры: 8930mm×2440mm×2900mm
вес:16000кг.
5,Упаковочный лист

наименование	количество (ком-т)	примечание
Газопоршневая генераторная установка контейнерного исполнения	2

Проверка

6.1Оборудование соответствует условиям JB/T 9583.1-1999 общие техническое условие газового топливного генераторного агрегатаи Q/SDL 32002-2009требование газового генераторного агрегата серии 190и успешно прошло испытание при выпуске с завода.
6.2Дата изготовления:в марте 2012г. (заполнить здесь дату изготовления ,с клеймом контролировано), Тип оборудования 1203013;1203014.
7,Гарантия
7.1При соблюдении правил об эксплуатация ,транспортировке ,монтаже и хранении изделий(здесь указать номера государственных или отраслевых страндартов )срок гарантии устанавливается в срок 1 год с даты выпуски с завода..

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.

NO	DESCRIPTION	QTY
1	O Seal Ring 1182.65 Part No. GB3452.1.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O1182.65	200
2	Screw M46 Part No. GB67.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M46	50
3	Bolt M1060 Part No. 5783.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M1060	50
4	O Seal Ring 563.55Part No.GB3452.1.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O 563.55	200
5	O SEAL RING 85X3.55:Part No.GB3452.1 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O85X3.55	200
6	Bolt M1235 Part No. 5783.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M1235	100
7	Bolt M1095-8.8 Part No. GB899.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M1095-8.8	50
8	O Seal Ring 1003.55 Part No. 3452.1.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O1003.55	400
9	Connecting sleeve Part No. 601.01,09.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	100
10	VALVE GUIDE : Part No. 601.03.10.03A. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). .	200
11	Rocker Bridge: Part No.601.03.30.01.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 Include(M12*1,GB/T6171;601.03.30.02;601.03.30.01;601.03.30.04;60103.30.04)	16
12	Adjusting screw capup:Part No.601.03.30.02.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	100
13	Bolt M1035 : Part No. GB5783.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M1035	50
14	Nut M141 Part No. GB6173.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M141	100
15	Nut M12 Part No. GB6170.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M12	100
16	Washer Part No. 601.03.21.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	200
17	O SEAL RING :Part No.601.03.23 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O	500
18	SCREW:Part No.601.03.12 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	200
19	BOLT:Part No.601.03.24 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	100
20	Nut Part No. Z12V.09.45A.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	200
21	O-ring 37.53.55 Part No :GB3452.1 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232 O37.53.55	200
22	CNNETING ROD BODY AND CAP: Part No. 601.05.10-GJ of 190SERIES DIESEL ENGINE H16V190ZLT2-2. 09-12-229 .	18
23	ROLLER TAPPET SUBASS EMBLY:Part No : 601.06.30 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232	10
24	Piston pin Part No.601.05.06 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232	20
25	Piston Part No.3412T.05.10of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232	20
26	REAR CRANKSHAFT,LEFT:Part No : 6016CT.06.20.02. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232	2
27	REAR CRANKSHAFT,LEFT:Part No : 6016CT.06.10.02. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232	2
28	Camshaft shell:Part No.601.01.34.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	36
29	Push rod subassembly :Part No : 601.06.40A. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232	160
30	Nut M16 Part No : GB6170 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232 M16	50
31	Bolt M1660 Part No : GB5783. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232 M1660	50
32	Heat-insulated coating:Part No. 6016H.09.80. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	10
33	Heat-insulated coating:Part No. 6016H.09.70. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	20
34	Heat-insulated coating:Part No. 6016H.09.10. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	20
35	Heat-insulated coating:Part No. 6016CT.09.30. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	12
36	Heat-insulated coating:Part No. 6016CT.09.40. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	12
37	Heat-insulated coating:Part No. 6016H.09.100. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	20
38	Heat-insulated coating:Part No. 6016H.09.90. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	15
39	Right bend exhaust pipe Part No. 6016CT.09.02. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	5
40	Bolt Part No.6016.09.02of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	50
41	NUT :Part No.3012.09.03 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	50
42	Exhaust pipe : Part No. 6016.09.06. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	15
43	Exhaust pipe : Part No. 6016.09.12. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).2009-12-230	15
44	Bolt:Part No.3012.09.06 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	200
45	NUT :Part No.601.09.11 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	200
46	Flanged ball valve Part No.1512Z.14.100.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	2
47	O seal ring 1095.3 :Part No : GB3452.1 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-232 O 1095.3	100
48	Screw 17:Part No.Q/JC14012.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 17	30
49	Washer M22:Part No.Q/JC14033.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M22	50
50	Screw plug M221.5 Part No.Q/JC14007.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M221.5	30
51	Bolt M1255. Part No.GB5782.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M1255	50
52	Bolt M1230. Part No.GB5783.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 M1230	100
53	O seal ring 303.1 Part No.Q/JC12003.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O 303.1	100
54	GASKET: Part No. 601.20.19 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T).. 2009-12-230 .	100
55	Oil Cooler assembly: Part No. 6016.21.00 of JICHAI GAS ENGINE H16V190ZLT2-2.	1
56	Spark plug gasket: Part No.601T.90.20.02 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	150
57	Spark plug cap: Part No.3412T.90.03.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	200
58	O Seal Ring38.73.55 :Part No.3452.1 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O38.73.55	50
59	O Seal Ring 252.65 :Part No.3452.1 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O252.65	50
60	O ring Part No.601.21.05. of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230 O	100
61	Oil pipe subassembly : Part No.6016.32.50.10.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	6
62	Oil pipe subassembly : Part No.6016.32.40.10.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	6
63	Oil pipe subassembly : Part No.6016.32.40.20.of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T). 2009-12-230	12
64	TURBOCHARGER ASSEMBLY: Part No.: 6016CT.26.10X (left side) Part No.: 6016CT.26Y.10X (right side) of JI CHAI H16V190ZLT2-2.	1
65	The special tool for dismantle camshaft shell	1
66	WATER COVER GASKET FOR INTER-COOLER ASSEMBLY Part No.6016CT.27.00 ,6016CT.27.00	30
67	TURNOVER WATER COVER GASTER FOR INTER-COOLER ASSEMBLY Part No.6016CT.27.00 ,6016CT.27.00	30
68	OUT PUT HARNESS: Part No. 6016CT.90.50 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230,	6
69	SLEEVE: Part No. 6016CT.13K.17 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230, .	6
70	GAS CONTROL VALVE : Part No. 1512Z.13K.02 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230,	1
71	SLEEVE II: Part No. 1512T1.13K.08 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230,	12
72	DIGITAL CONTROL VALVE: Part No. 3412T.13K.03 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230,	1
73	LUB.PRESSURE INSTRUMENT : Part No. 25PG-150(1/8-27NPTM) for 6016CT2.32.90 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230, line of 2.5m,	6
74	SPEED INSTRUMENT &SENSOR : Part No. ATHS-30-12 for 6016CT2.32.90 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230, line of 2.5m,	6
75	EXH.TEMP.THERMOCOUPLE: Part No. MGR-1 for 6016CT2.32.90 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230, M24X1.5(line of 5.5m),	18
76	PRESSURE TRANSMITTERS 1MPA: Part No. MBS1900 1Mpa for 6016CT2.32.90 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230, M10X1(line of 2.5m),	10
77	RESISITANCE STRAIN TEMPRATURE SENSOR : Part No. YWC for 6016CT2.32.90 of JICHAI GAS ENGINE H16V190ZLT2-2/(1200GF9-T) . 2009-12-230, M18X1.5-65(line of 4.5m),	10
