Myanmar Peanut Oil Machine, Rice Bran Oil Extraction Plant for Sale

FOB Price

US$ 3,500 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HNLY	Place of Origin	Henan, China
Model Number	oil extraction plant	Type	Cold & Hot Pressing Machine
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Weight	according to the capacity	Dimension(LWH)	according to the capacity
Voltage	270V,380V, 400V	Condition	New
Power(W)	according to the capacity	Automatic Grade	Automatic

Product Description

Myanmar peanut oil machine, rice bran oil extraction plant for sale

Product Description

Craft flow for rice bran pretreatment workshop

Rice bran → magnetic box → cleaning → puffing machine → plate dryer → to extraction workshop

Main Equipments:

1.Magnetic box: Clearing the iron impurity in the rice bran. In order to avoid the harmful to the following machines, the iron impurity need be moved first.

2.Cleaning: There are many different imputities in the rice bran, such as small stone, earth, straw and so on. They are not only broken the machine, but also effect the quality of final oil.

3.Puffing machine: The size of rice bran is very small, so it's not easy to press it.We will puff it and make it to small pellet. Then it will absorb more solvent in the solvent extraction section. The more oil will be extracted out.

4.Plate dryer: The water content of the extractor must be about 10%, so the dryer is used to adjust the water content in this step.

Main Equipments of rice bran pretreatment workshop:

1). Rice bran: It’s the shell and embryo of the rice. The oil content in the rice bran is about 18-22%. The rice mill can supply the rice bran.

2). Magnetic box: Clearing the iron impurity which might be in the rice brain. Since in the process of puffing, the iron impurity will be harmful to the screw of extrusion machine, affect the puffing effect.

3). Separator: Removing the chaff and broken rice in the rice bran, in case of they will influence the oil yield and the desolventizing of wet meal in the next process.

4). Quenching and Tempering: It is the process of preheating so that to improve the temperature of the rice bran before puffing.

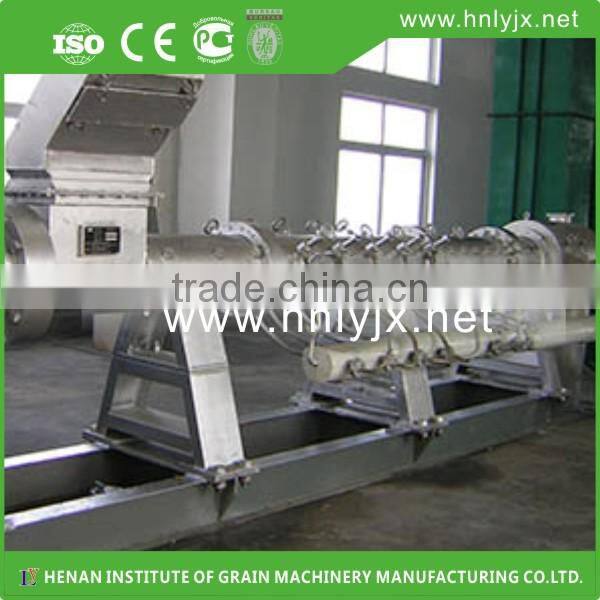

5). Bulking machine: This machine can make the rice bran becoming porous columnar structure from the original pulverized state. This is good for the oil extraction part and improve the oil yield.

6). Drying: The moisture of rice bran comes from the bulking machine is too big and the temperature is too high for direct extract, so the rice brain are usually dried and cooled by plat dryer.

Rice Bran Pretreatment plant

Introduction of oilseeds pretreatment machine:

Pretreatment and prepressing section is a very important section before extraction. It will directly affect extraction effect. The set of pretreatment and prepressing equipment includes cleaning, dehulling, separating, drying, crushing, softening, germ pressing, steaming, roasting and prepressing sections and so on.

1. Cleaning

1).According to different particle size between oilseeds and impurities,remove big and small impurities from oilseeds with vibrating screen.

2). Stones removal. According to different specific gravity and suspended velocity between oilseeds and stones, stones fall down and oilseeds suspend under the action of air flow to separate stones from oilseeds.

3). Magnetic selection. It uses magnet to remove metal impurities from oilseeds. Strong and uniform magnetism attract metals automaically and remove metals to prevent oilseeds carrying stones away, attracted metals by permanent magnet fall down automatically when metals reach non-magnetic area.

4). Remove impurities whose size is similiar to oilseeds according to different mechanical performance between oilseeds and clods, crush clods and then separate them through screen selection or wind selection.

2. Husking Adopt wind selection and screen selection methods to separate husks from kernels.

3. Crushing Before flaking, crush big oilseeds into smaller pieces to increase superficial area, beneficial for transfering softening temperature and moisture, improve softening efficiency.

4. Softening Adjust moisture and temperature of oilseeds to improve their plastivity and reach required flaking condition.

5. Flaking Roll oilseeds from pellets to thin flakes through mechanical method.

6.Cooking Steam and cook green-pressing to cooked flakes through moist, heating, steaming and cooking to break the cellular structure so as to improve pressing oil yield and improve quality of oil and cake or meal.

7.Pre-pressing For oilseeds with high oil content, it needs pre-pressing to press part of oil firstly and then extract residual oil in cake through solvent extraction method. Raw materials of oil pretreatment equipment involved: soybean, peanut, rapeseed, cottonseed, sunflower seeds, palm nuts, linseed, tea seed, corn embryo, rice bran, oil seeds, etc.

Rice Bran Oil Refinery

Crude oil can be refined as Second,first and high class cooking oil.It can be heated by thermal oil and Omitted the boiler. The refinery can be operated easily and intermittent.It has all the functions of Large and medium-sized refinery and widely used.

The unit is integrated in one assembly factory.It has the advantage of convient transportion,small covering area,less operation staff and saving energy.It is no need of special plant and special equipment.It can be set indoor and outdoor. Main steps of refinery section in rice bran oil processing plant.

1.Neutralizing: This pot is used to degum and deacidify.

2.Decolorizing (bleaching) : The function of this part is to move the color of the oil.The color of the oil can be controlled by yourself.

3.Deodorizing: This is the part to move the odor of oil.

4.Dewaxing: This is the special part for rice bran oil. Because rice bran oil includes much wax, we must move the out.

30TPD Rice bran solvent extraction plant

Oil extraction plant designed mainly contains Rotocel extractor,loop extractor and towline extractor,according to diffierent raw material,we adapt different type,and we adopt DTDC desolventizer machine.Full negative pressure evaporation and paraffin recycling equipment at the same time.Equipments are in high quality,advanced technology,high safety ,interlocking control,automatic control,stable operation,low consumption,low oil residue and high final products.

Rice bran oil (also known as rice bran extract) contains relatively complete fatty acid composition. It is rich in oryzanol, squalene, γ-tocotrienol, phytosterol and other biologically active substances. The content of unsaturated fatty acid is more than 80%. It is acclaimed as “nutritional and healthy cooking oil"by nutritionists.

Main steps of oil extraction plant

1.Rotary extractor: this is the very important machine in extraction section. The function of this machine is to extract oil from the seeds cake.

2.Toaster: This is the equipment to separate oil from the cake.

3.1st, 2nd evaporator and stripping tower: The function of these machines is to separate oil and solvent.

4.Cooling system: Cooling system is important in solvent recycling. It helps to recycle the solvent,so the consume of solvent is little.

Packaging & Shipping

Packaging

Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.

shipping

Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.

Our Services

Our service

1. One year quality warranty for the machine and spare parts

2. Overseas engineers service for installation

3. Whole-life after-sales service and free consultation

4. Customized requirements available

5. Technician guide at the site.

6. 24Hr online service
