AMEC's Best-selling Quality Poultry Feed Mill Equipment in Tanzania

The feed granulation production line has a simple and light structure, and the production capacity is 500-1000 kg, which is convenient for assembly and maintenance, and is very practical

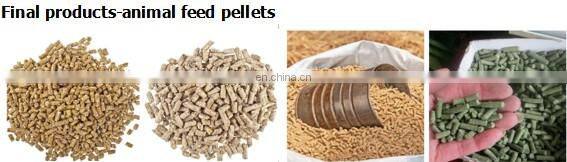

Final Feed Pellets:

Hammer crusher:With hammers, it can crush the corn, wheat, Cardamom, straw, alfalfa etc.

Vertical Mixer:The materials after crushing will be fed into mixer by pipes. The other small addtions can be put in from the oTher Inlet Hole directly.

Screw Conveyor:Convey material for pelleting

Pellet Mill:1. Pellet diameter: 2-12mm         2. Alloy steel flat die mould and roller sheel with long using life.


Hammer Crusher

With hammers, it can crush the corn, wheat, soybeans, straw, alfalfa etc. into particles suitable for pelleting.

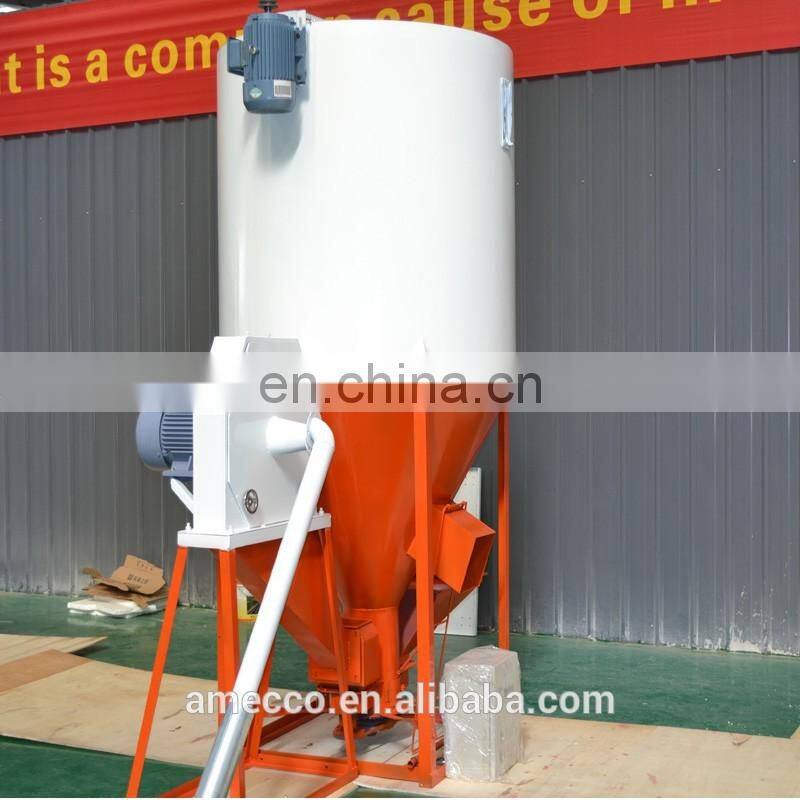

Vertical Mixer

The screw inside the mixer conveys the material from bottom to the up and then the material fall down from both sides inside the mixer, the same motion are repeated to achieve the effect of material mixing.

Flat Die Feed Pellet Machine

Pelleting process( flat die pellet machine):When materials meet the pelleting requirement, which means the material particle size is less than 6mm, and the moisture is 12-20%. At this time, the materials can be transferred to the pellet machine for pelleting. When raw material is delivered into the pelletizing chamber, they will be pressed into die hole. The die rotates and the roller is stationary at the same time. The resulting pressure will compress the material and extrude it through the hole of the die. As they are extruded, cutting knives will cut the pellets into specified size. You can adjust to get pellet with different length.

Big Capacity Feed Production Line:

    1-2T/H                                        3-5T/H                                        5-8T/H                                       8-12T/H
