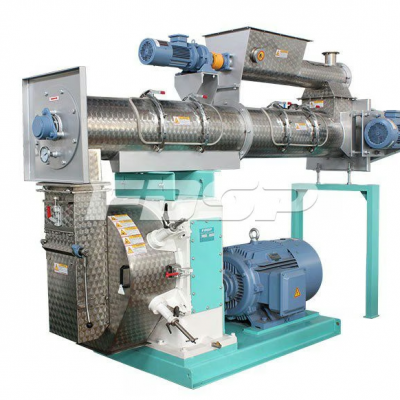

5-8tph SZLH400 High Grade Ring Die Pellet Mill Feed Making Machine

5-8tph SZLH400 High Grade Ring Die Pellet Mill Feed Making Machine

SZLH400 high grade ring die pellet mill is mainly used for medium sized feed mills producing kinds of granule feed which can reduce the cost. It is suitable for chicken, duck, goose, pig, cattle, sheep, fish, shrimp, crab breeding and etc. This pellet mill is more suitable for granule feed production of medium-sized feed mills.

Feature Description

1. This machine is with small occupy, low power consumption, low noisy and adjustable feeding. It also featured with compact structure, beautiful appearance and  stable performance.

2. The main transmission casing is made by casting with large bearing, good stability, long service life.

3. Gear directly-connecting driving is adopted for high efficiency; the capacity could be 15% higher than belt pellet mill, high precision aircraft grade gear grinding process is adopted for ensure the stable and low noisy gear driving.

4. The feeding system of this machine is controlled by stepless variable frequency motor, and easy to adjust the speed.

5. Be equipped with safety pin which will broke if main motor overloaded to protection.

6. Be equipped with two cutter which can control the length of granule effectively.

7. Full stainless steel feeder, conditioner and door cover will avoid the corrosion to pollute the raw material, with long service life.

8. This machine has high output, low noise, low power consumption, long service life, easy to use and other features.

9. Humanized design, careful for safety operation and use: the door cover is equipped with travel switch, the main motor will automatically power off to achieve active protection when the door cover opened, in addition, the transmission parts are with closed shell.

10. The ring die are assembled with clamp type which is easy to change and reliable in driving.

11. Single stainless steel conditioner can be optional to meet the requirement for normal poultry feed production.

12. Double stainless steel conditioner can be optional to meet the requirement for high grade poultry feed production.

13. Double jacket conditioner can be optional to meet the requirement for normal aqua feed production.

14. Double jacket conditioner and retentioner can be optional to meet the requirement for middle grade  aqua feed production.

15. Double jacket conditioner, retentioner and DDC can be optional to meet the requirement for high grade aqua feed production.

Parameters

Ring die material: 4Cr13

Door cover of pelleting chamber: -5/SUS304

Feeding chute: -3/SUS304

Gearbox casing: HT250

Gear: 42CrMo

Pinion shaft: 20CrMnMo

Main shaft: 40Cr

Empty shaft: ZG45

Bearing: bearing for pinion shaft and main shaft are NSK, roller shaft bearing is China qualified bearing

Oil sealing: Germany/Taiwan

Overload protection: safety pin

Serpentine spring coupling driving

Motor: Wannan/Siemens China
