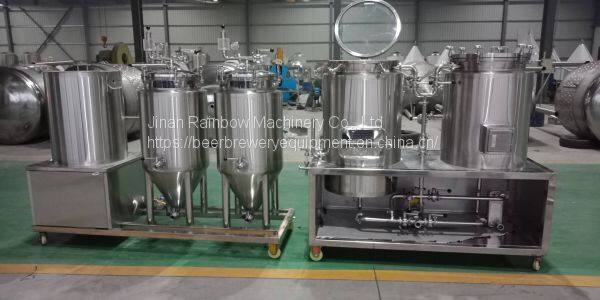

100L Turnkey Small Beer Brewery Equipment
- Qingdao
- T/T L/C Other
- 45 days
You May Like
-
1000l Beer Brewing Tank for Micro Brewery
-
5 Barrel Brewing System for Sale
-
Brew Kettle, Mash Lauter Tun, Brewing Equipment
-
120BBL Beer Fermenter, Jinan Rainbow Beer Brewing Equipment
-
Beer Brewing Equipment, Conical Fermenter for Brewery
-
1000L Beer Fermenter, Stainless Steel Conical Beer Fermenter for Brewery Equipment
Product Details
| Brand Name | RAINBOW | Place of Origin | China | |
| Model Number | 100L | Certification | CE ISO PED | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 3 years for main tank | |
| Weight | 200-3000kg | Dimension(L*W*H) | up to the tanks | |
| Condition | New | Voltage | 3phase/380v/50Hz | |
| Power(W) | up to the heating method | Processing Types | Alcohol |
Product Description
100L brewing system configuration for your reference.
| Brewhouse system | Mash/Lauter tun |
Brew kettle/whirlpool tank | |
Plate heat exchanger | |
| wort pmp | |
| PID control panel | |
| Fermentation system | Fermenter |
| Glycol tank | |
| Glycol chiller | |
| Glycol pump | |
| PID control panel |
Brewhouse System
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6 μm without dead corner
-Heating method:Steam/gas direct fire/electricity heating
-Side manway for spent grains
-Steam jacket:Both on bottom and side,thickness:3.0mm
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom
Fermentation System
-Dome top and cone bottom;bottom cone 60 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6μm without dead corner
-Cooling jacket:both on cone and cylinder parts
-Cooling media: glycol water
-Test pressure:0.3Mpa,Working pressure:0.2Mpa
-Rotating racking arm on cone with butterfly valve
-Thermowell with high accuracy temperature sensor:PT100
-3/4 Legs with height adjustable pad
