Turnkey Beer Brewing Equipment Fermentation Tanks

Beer brewing equipment

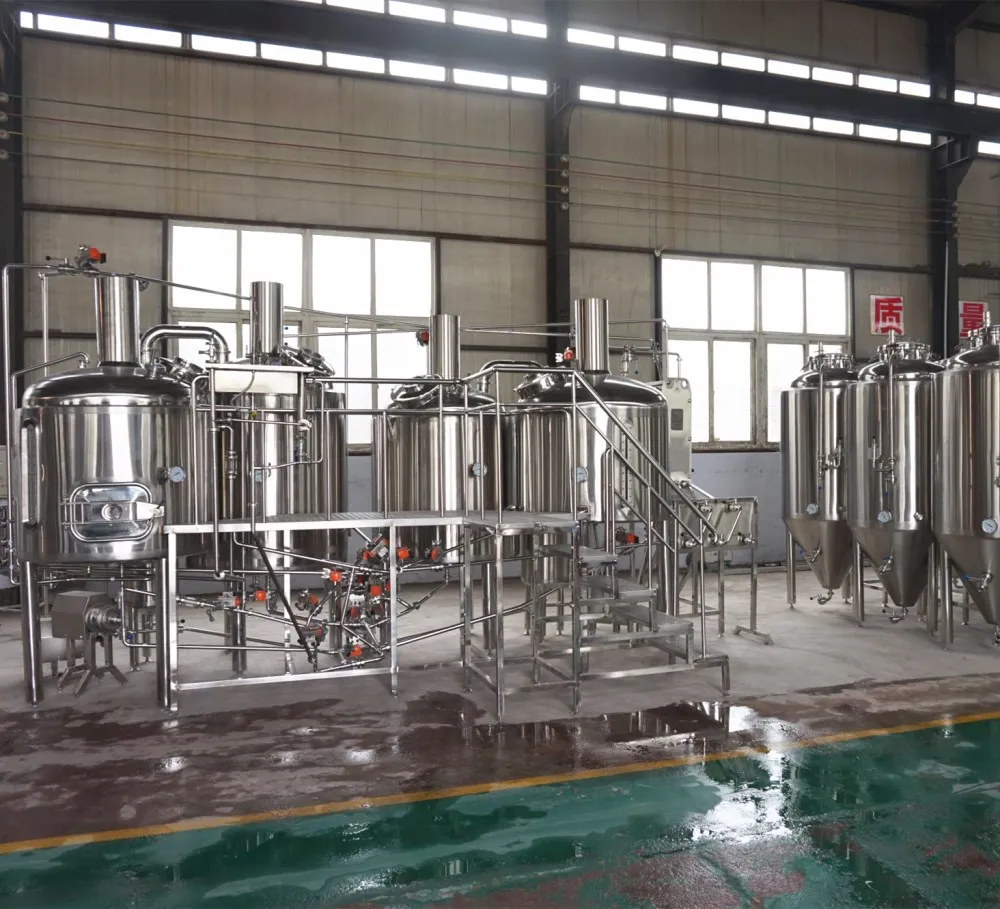

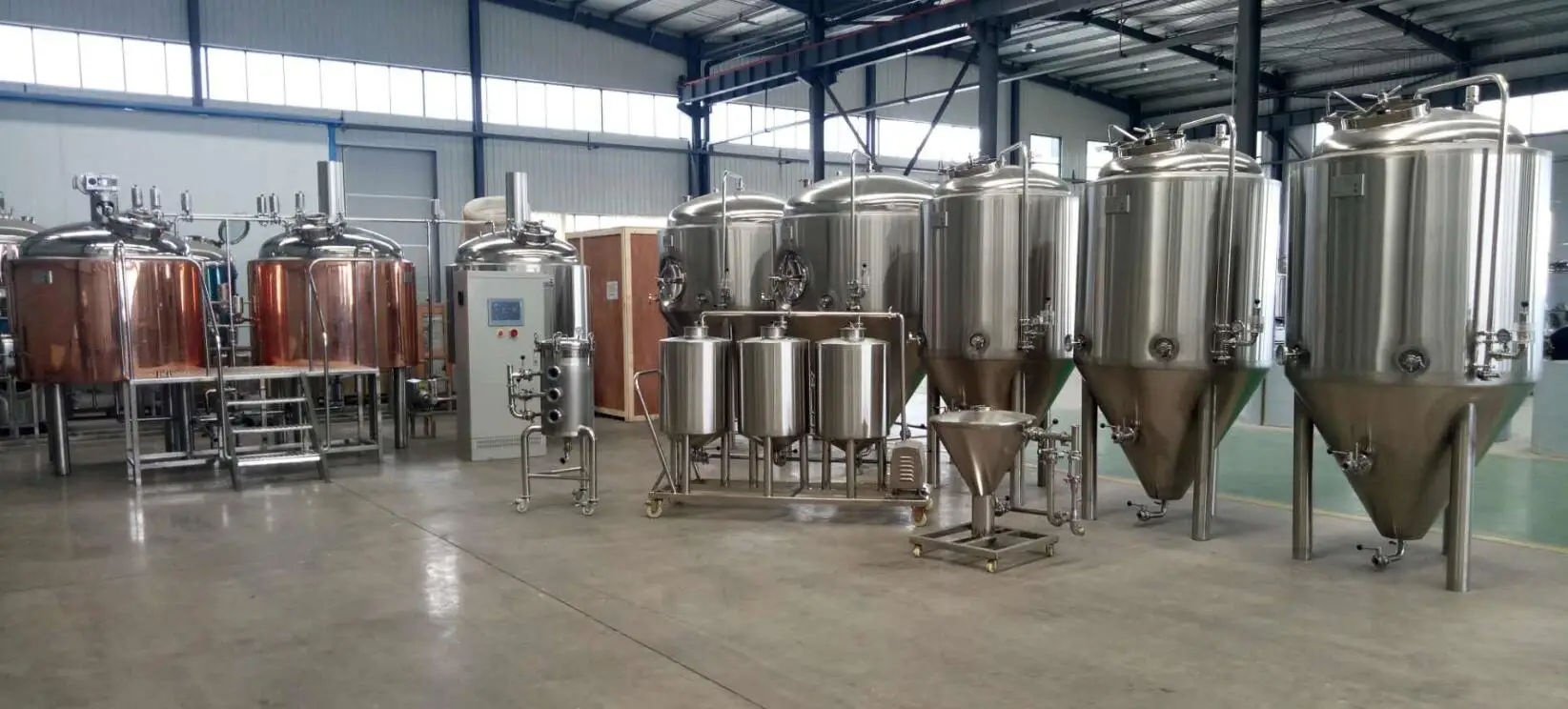

This is 1000L brewing system configuration for your reference.

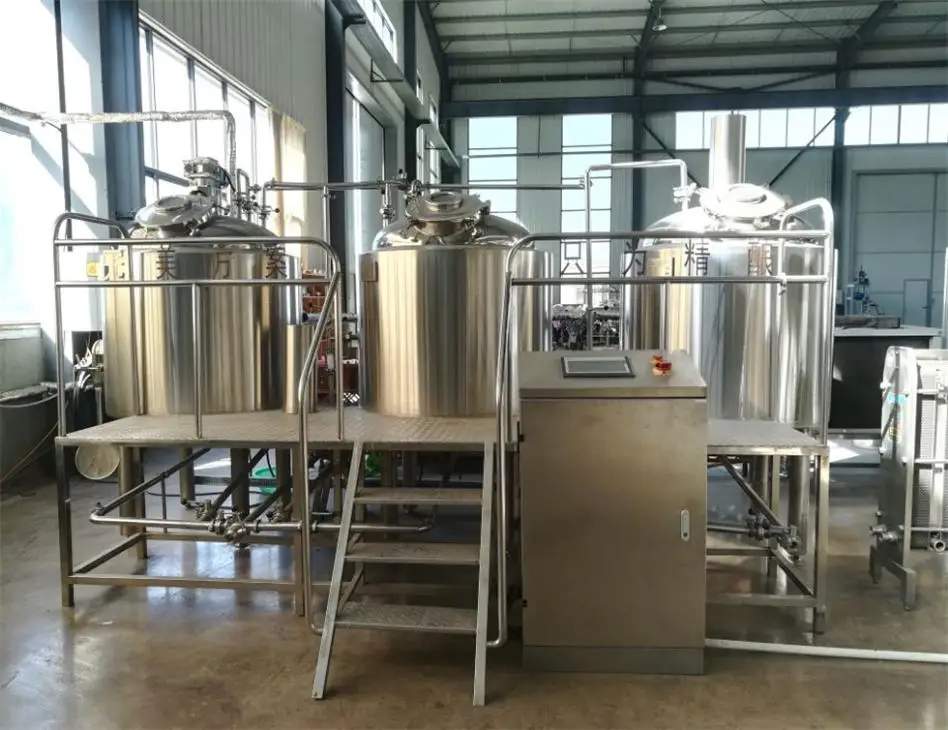

Brewhouse System

  -Dome top and cone bottom;bottom cone 160 degree

  -Interior Shell:SUS304,thickness:3.0mm

  -Exterior Shell:SUS304,thickness:2.0mm

  -Insulation:Polyurethane, thickness:100mm

  -100%TIG welding with pure argon gas shield

  -Interior Fish:Overall polishing to 0.4~0.6 μm without dead corner

  -Heating method:Steam/gas direct fire/electricity heating

  -Side manway for spent grains

  -Steam jacket:Both on bottom and side,thickness:3.0mm

  -Easy-clean and detachable sparging arm

  -Easy-clean and detachable false bottom

Options:

2-vessel: mash/brew kettle, lauter tun/whirpool

2-vessel: mash/lauter tun, brew kettle/whirpool

3-vessel: mashtun, lauter tun, brew kettle/whirpool

4-vessel: mash tun, lauter tun, brew kettle, whirpool

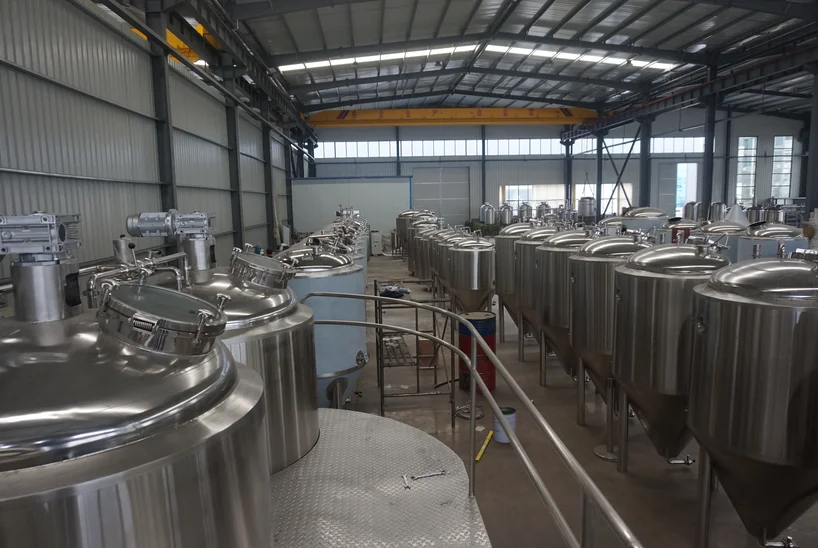

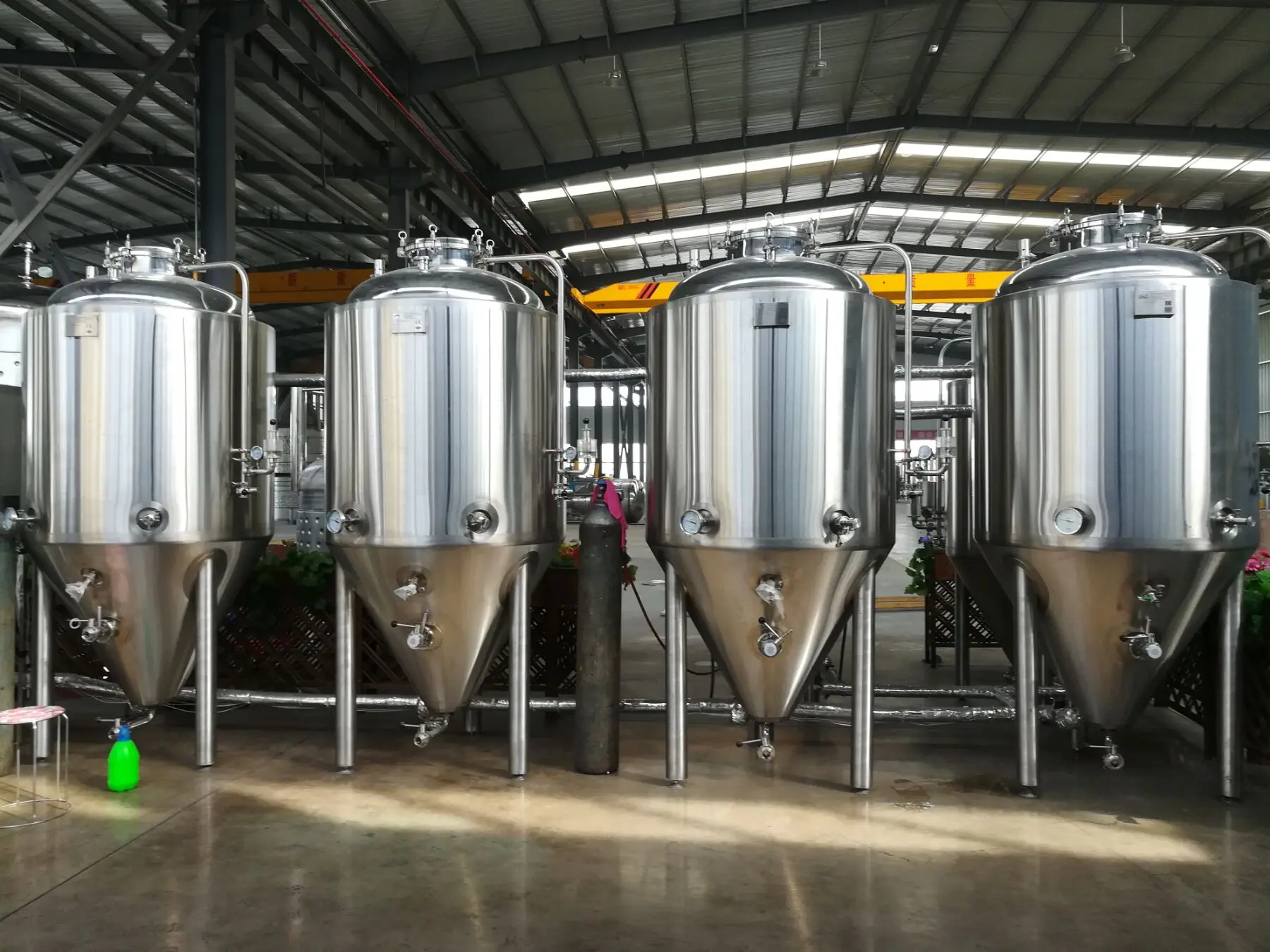

Fermentation System

  -Dome top and cone bottom;bottom cone 60 degree

  -Interior Shell:SUS304,thickness:3.0mm

  -Exterior Shell: SUS304,thickness:2.0mm

  -Insulation:Polyurethane, thickness:100mm

  -100%TIG welding with pure argon gas shield

  -Interior Fish:Overall polishing to 0.4~0.6μm without dead corner

  -Cooling jacket:both on cone and cylinder parts

  -Cooling media: glycol water

  -Test pressure:0.3Mpa,Working pressure:0.2Mpa

  -Rotating racking arm on cone with butterfly valve

  -Thermowell with high accuracy temperature sensor:PT100

  -3/4 Legs with height adjustable pad

Options:

-Carbonation stone

-Dry hopping port on top

-Bright beer tank

Cooling System

  -Cooling unit always includes glycol chiller, glycol water tank and sometimes an extra cool water tank

  -It provides cooling media to both wort cooling and fermentation cooling

CIP System

  -Used for cleaning and disinfection of whole set of equipment

  -Movable Alkali tank & Sterilization tank, can be heated by electricity or steam

Control System

  -Used for Electrical control of whole set of equipment

  -It has mainly 2 types. PLC type and digital type

Our services

1.turn-key project solution from design and produce to installation and service.

2.Provide company’s certifications and the drawings.

3.Customize products according to what you need.

4.Long-term after-sale service.

5.We will test before shipment, such as materials, smooth finish, and pressure test for every produce to ensure the quality of final produce.

F A Q

1.Minimum Order Quantity: One set

2.Custom-made: Our beer equipment can be custom-made

3.Price Term: Price based on FOB Qingdao Port, China

4.Delivery Time: Within 30-35working days after receive the deposit

5.Payment Term: T/T 30% in Advance, 70% balance to be paid before shipment

6.Package: Standard export package suitable for long marine transport

7.Warranty: 36 months for main equipments

Packaging & Shipping

Certification

About us

  Established in 2011,Jinan Rainbow Machinery Co.,Ltd, is a professional manufacturer and leading exporter of craft beer brewery equipment.

  Rainbow Machinery is exporting brewing tanks to many countries like France, Norway, Czech Republic, Switzerland, USA,Canada, Australia, Singapore, Rwanda and Malawi...etc.

  Rainbow Machinery is running with ISO9001 standard and CE certificate. It focus on using good quality material SUS304/316, using 100% TIG welding and doing fine polishing so as to get superior quality brewery tanks.

  Rainbow Machinery provides turn-key project solution from design and produce to installation and services.
