Product Description

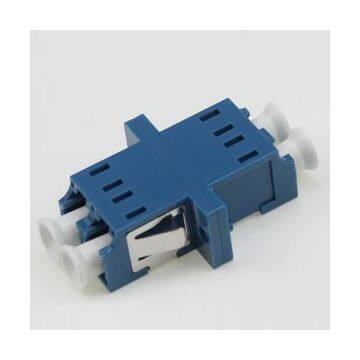

LC SM DX Adapter with ear
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. We supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
| Connector Type | LC |
| Polish Type | UPC |
| Fiber Mode | Single mode |
| Fiber Counts | Duplex |
| Insertion Loss | ≤0.2dB |
Specification
Parameter | Unit | LC,SC,FC,ST,MTRJ,MPO | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | dB | ≧45 | ≧50 | ≧60 | ≧30 |
| Exchangeability | dB | ≤0.2dB | |||
| Repeatability | dB | ≤0.2dB | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -40~85 | |||
Features
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Precision anti-rotation key
4. Nickel plated brass body
5. Telcordia style boots
6. Free-floating ceramic ferrule
Application
Local Area Network
Optical fiber communication system
Optical access network(OAN)
Optical CATV
Optical fiber sensor
Fiber optics data transmission(FODT)
Active device termination
Equipment test
