LC MM SX Adapter
- 10000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
You May Like
Product Description

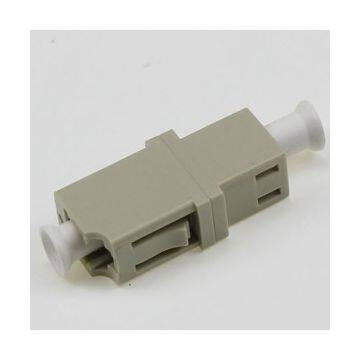

LC MM SX Adapter
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. we supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
| Connector Type | LC |
| Polish Type | UPC |
| Fiber Mode | Multi mode |
| Fiber Counts | Simplex |
| Insertion Loss | ≤0.2dB |
Specification
Parameter | Unit | LC,SC,FC,ST,MTRJ,MPO | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | dB | ≧45 | ≧50 | ≧60 | ≧30 |
| Exchangeability | dB | ≤0.2dB | |||
| Repeatability | dB | ≤0.2dB | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -40~85 | |||
Features
Excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged
Application
Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
