Hydraulic Crawler Rock Drill Water Well Drilling Machine
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
Post Tension Mono Strand Hydraulic Jack
-
Hydraulic Cold H-beam Pipe Bending Machine For Railway
-
Prestressed Mono Strand Post Tension Hydraulic Jack
-
High Quality Steel Bar Connection Rebar Coupler
-
12-40mm Standard Cold Forged Parallel Threading Rebar Coupler
-
CNC Cold Pipe Bending Machine Tube Bending Machine
Product Details
| Brand Name | Zhongtuo | Place of Origin | China | |
| Model Number | ZT635 | After-sales Service Provided | No overseas service provided | |
| Warranty | 1 year | Weight | 11000kg | |
| Dimension(L*W*H) | 11300*2430*2900mm | Certification | CE | |
| Application | Quarry,Mine,and more | Condition | New |
Product Description

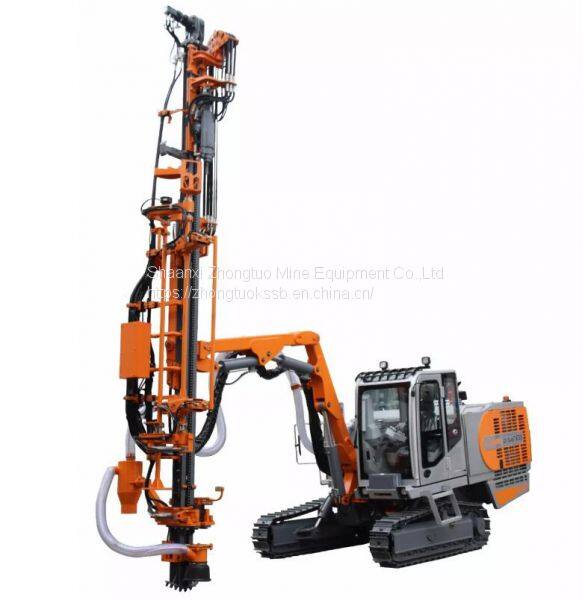

T635 Rock Drill Advantages:
1. High efficiency and energy saving

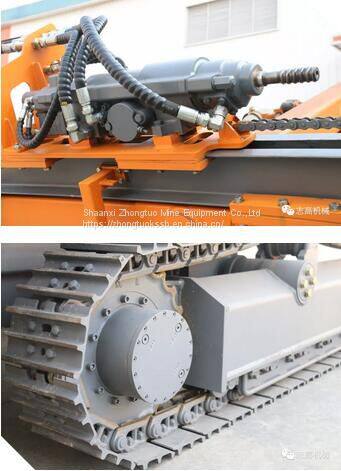

1 Efficient walking: The whole vehicle is driven by a combination of heavy-duty chassis and leveling cylinder. The machine is flexible and fast when moving, adapting to complex road conditions and good off-road performance. At the walking speed, the high speed is 4km/h and the low speed is 2km/h.
2 The boom adopts a folding arm, which has a larger working range and can be punched at the corners.
3 energy saving, low fuel consumption: T635 is equipped with high hydraulic rock drill and off-road performance strong walking mechanism, the machine consumes less fuel when in use.

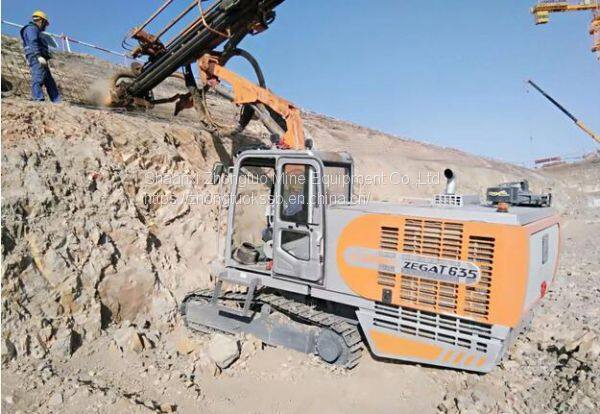

According to the actual data collected on the T635 site, under the condition of rock hardness F=7, the impact pressure is 190 bar, the machine aperture is φ89 mm, the pure rock drilling speed is 1 m/min, and the comprehensive fuel consumption is 0.35 L/m. It is much lower than similar products.
2. Green environmental protection

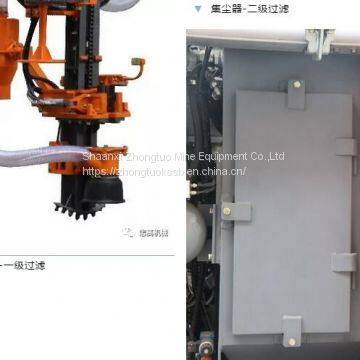

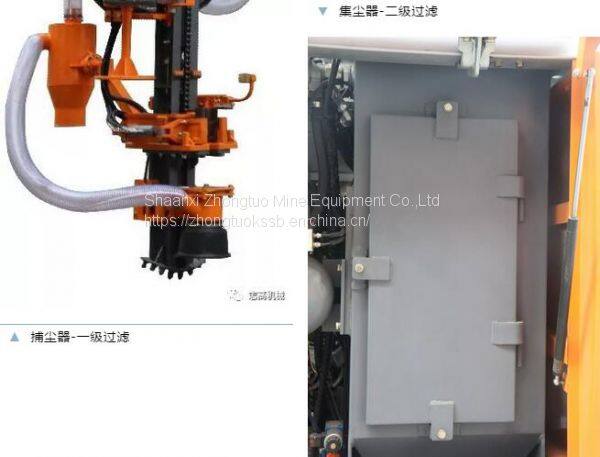

The T635 adopts a double dust collecting device, and the movable dust collecting hood and the pre-separating barrel form a dust primary filtration; the second dry strong dust collecting system makes the rock drilling dust-free.
3. Safe and comfortable
The operating room of the T635 machine is designed to meet the top protection standards for labor safety in Europe and America. 1The cab is wide, clear and environmentally friendly when operating in the cab; 2 omnidirectional visual range, low vibration, low noise design to achieve the best comfort; 3 audio, air conditioning system standard configuration, easy for operators to enjoy Working environment; 4 easy to operate control system, very operability, easy to learn; 5 various display, prompt, alarm functions make the equipment always maintain the best working condition.
Rock Drill | |
Model | ZY103 |
Drill holes diameter | 64-102mm |
Swing speed | 0-192pm |
Swing torque | 860N.m |
Impact frequency | 40-60HZ |
Drill pipe specifications | T35(T45) |
Drilling depth | 17m |
Maximum impact rate | 15kw |
Motor | |
Model | QSB4.5-C160-GIII |
Rated power | 119kw |
Rotating speed | 2200pm |
Fuel tank capacity | 280L |
Drill arm and thruster | |
Drill arm angle | 71o/105o |
Swing arm angle | -25o-+35o |
Pitch angle | -54o-+50o |
Angle of swing angle | -92o-+15o |
Rock drill stroke | 4.12m |
Propulsion compensation | 1.2m |
The total length of the propulsion beam | 7.2m |
Drill pipe length | 3.66m |
Rod changer and number of poles | 4+1(Auto) |
Screw Compressors | |
Exhaust air volume | 5.7m3/min |
Maximum wind pressure | 8.5Bar |
Chassis | |
Maximum climbing ability | 25o |
Ground clearance | 340mm |
Track frame swing angle | +/-10o |
High and low walking speed | Max:4.0km/h, |
Largest traction | 77KN |
Size | |
Weight | 11000kg |
Width | 2430mm |
Length | 11300mm |
Hight | 2900mm |
