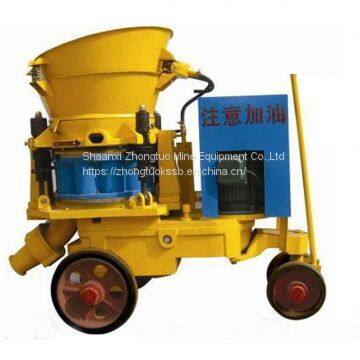

Pz-05 Concrete Wet and Dry Mixer Shotcrete Spraying Pump Machine

PZ-05 Concrete Wet and Dry Mixer Shotcrete Spraying Pump Machine:
1 through the rotor-type non-adhesive material cavity, the material smooth, efficient and time-saving;
2 four-point elastic compensation compression, sealing effect is good, machine dust less, wearing a long life;
3 stream uniform, continuous and stable;
4 new nozzle, the material elbow device to improve the spraying effect, less rebound, spray layer of high quality.
To serve as the basis, to the quality of survival, technology and development
PZ-05 Concrete Wet and Dry Mixer Shotcrete Spraying Pump Machine:
Pz-5 Dry Shotcrete Machine is mainly driven by motor, reducer, rotor assembly, sealing plate, rubber plate, compactor mechanism, hopper seat, mine wheel, vibration hopper, compression mechanism and air Systems and electronic control devices and other components. The motor shaft ends the drive gear shaft and, after decelerating by the gear unit, drives the rotor mounted on the output shaft to rotate. After the gears are decelerated by the gear unit, the rotor mounted on the output shaft is driven to rotate. The transmission gear is lubricated by the lubricating oil in the reducer box and the oil level is measured by the oil injection needle.
PZ-05 Concrete Wet and Dry Mixer Shotcrete Spraying Pump Machine Use:
PZ-5 dry-mix shotcrete machine is a kind of common shotcrete equipment, which is widely used in engineering construction, mine, tunnel, culvert, subway, hydropower project, underground engineering and coal mine marsh roadway shotcrete construction work: all kinds Type of industrial furnace, lining the refractory spray molding or repair: all kinds of slope protection green construction, the soil transport and spraying. The machine can be used for tidal spray, can also be used for dry spray and a class of fiber jet operations.


PZ-05 Concrete Wet and Dry Mixer Shotcrete Spraying Pump Machine Parameters:

10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEER
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO,SGS certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it,
We can give you a best solution within 24 hours
10 fast delivery, save your time.
