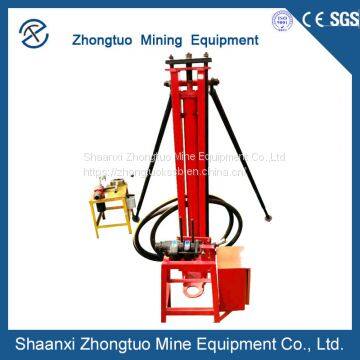

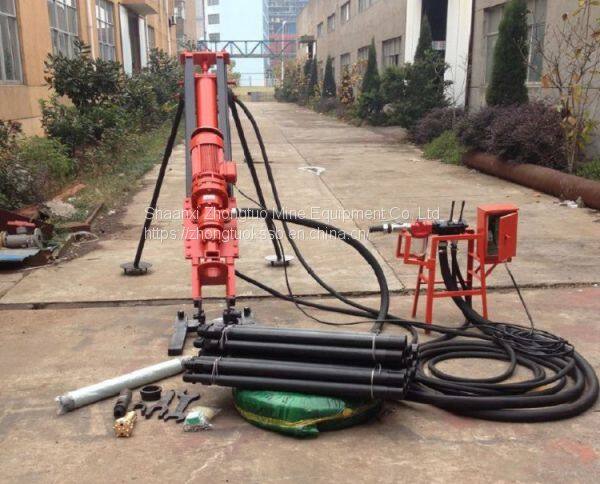

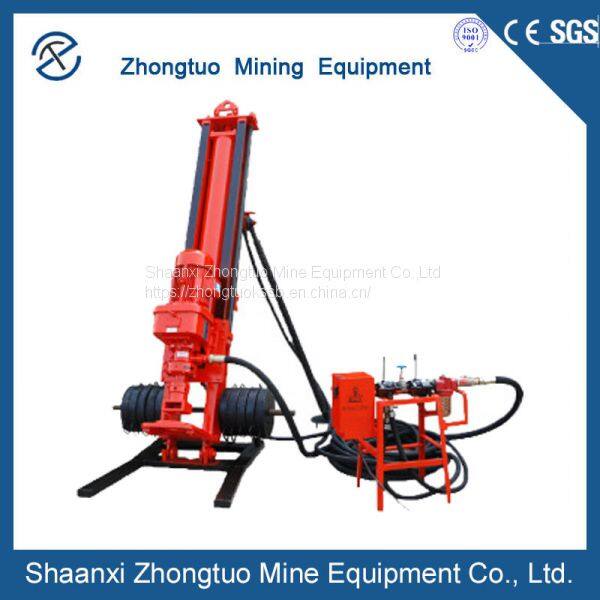

20m Deep Hydraulic Rock Drill DTH Drilling Machine
- Shanghai
- T/T L/C D/P D/A Other
- 10 days
You May Like
-
GB45 Steel Threading Rebar Coupler For Construction & Building
-
H- Beam Metal Steel Cold Bending Machine For Railway
-
Hydraulic DTH Water Wall Drilling Machine for Railway Working
-
CNC Hydraulic Press H-beam Steel Pipe Bending Machine
-
Hand Held YT-28 Jack Hammer Drill Break Rock Drilling
-
Hydraulic Steel H-Beam Bending Machine With Best Quality
Product Details
| Brand Name | Zhongtuo | Place of Origin | China | |
| Model Number | SKD-90 | After-sales Service Provided | No overseas service provided | |
| Warranty | 1 year | Weight | 100kg | |
| Certification | CE | Application | Quarry,Concrete | |
| Condition | New |
Product Description
Hydraulic DTH Rock Drilling Machine Feature:
1) Low center of gravity.Reliable and easy to move and transport convenience.Particularly suitable for rugged terrain and original landscape
2) Impactor low air consumption,Supporting air compressor displacement is small,Energy-Efficient Economy
3)Rotary reducer torque is large,In the strong vibration, high load working conditions, good reliability
Advantage:
1. Safe and stable traveling system
Low gravity, great ground clearance, make cars easily make drill through rugged road.The advanced automatic balance system, not only makes drilling stable, also greatly reduced the impact of the car, and ensure the safe driving.
2.Centralized operating system of Mobile Drilling Rig Drill carriage designed with advanced hydraulic system and completely functional gas circuit system.
3.Powerful feeding and rotating system of Mobile Drilling Rig
Promote reducer drives adopt turbine and worm, which have a big push- pull effort and can reliaze self-locking.
4.Adjustable boom
Adopt adjustable boom, the dip angle of hole and Level hole height can adjust by control the oil tank stretch out and draw back.
SKQ DTH Rock Drill Rig Specification | |||||
Model | SKD70 | SQD70 | SKD100 | SQD100 | SKB100-4 |
Drilling Hole Dia. | 60-80M | 60-80MM | 90-130MM | 90-130MM | 90-130MM |
Drilling Depth | >15M | >15M | >25M | >25M | 30-40M |
Rotation Speed | 110r/min | 110r/min | 84r/min | 110-160r/min | 90r/min |
Working Pressure | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-1.0Mpa | 0.5-1.0Mpa | 0.5-1.0Mpa |
Drill Rod Dia.*Length | 42*1025mm | 42*1025mm | 60*1025mm | 60*1025mm | 60*1025mm |
Air Consumption | 3.5m3/min | >10m3/min | 6m3/min | 12m3/min | 10m3/min |
Max. Push Power | 3600N | 3600N | 9600N | 9600N | 9600N |
Driven Power | 3kw motor | 3kw motor | 4kw motor | 4kw motor | 4kw motor |
