SX011832 GCr15 or GCr15SiMn Crossed Roller Bearing P5 / P4 / P2 Accuracy
US$ 1 - 1000
/ Piece
1 Piece(Min. Order)
- Shanghai or Beijing
- T/T L/C D/P D/A Money Gram Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
High Speed GCr15 Cross Roller Bearing RB5013 OEM For Harmonic Reducer
-
RB60040UUCC0P5 Rb Series Precision Crossed Cylindrical Roller Bearing For Harmonic Drive Gear Reducer
-
RB50025UUCC0P5 RB50040UUCC0P5 RB50050UUCC0P5 Precision Crossed Cylindrical Roller Slewing Bearings
-
RB45025UUCC0P5 Medical Equipment Cross Roller Bearing
-
RB40035UUCC0P5 RB40040UUCC0P5 Material Handling Equipment Slewing Rings Medical Bearings
-
RB35020UUCC0P5 Rb Thin Section Customerized Crossed Roller Bearings For Harmonic Drive Reducer
Product Details
| Brand Name | Monton | Place of Origin | China | |
| Model Number | SX011832 | Number of Row | Single Row | |
| Seals Type | open or sealed | Precision Rating | 50000r/min | |
| Outside Diameter | 10, 260 | Bore Size | 25, 245 |
Product Description

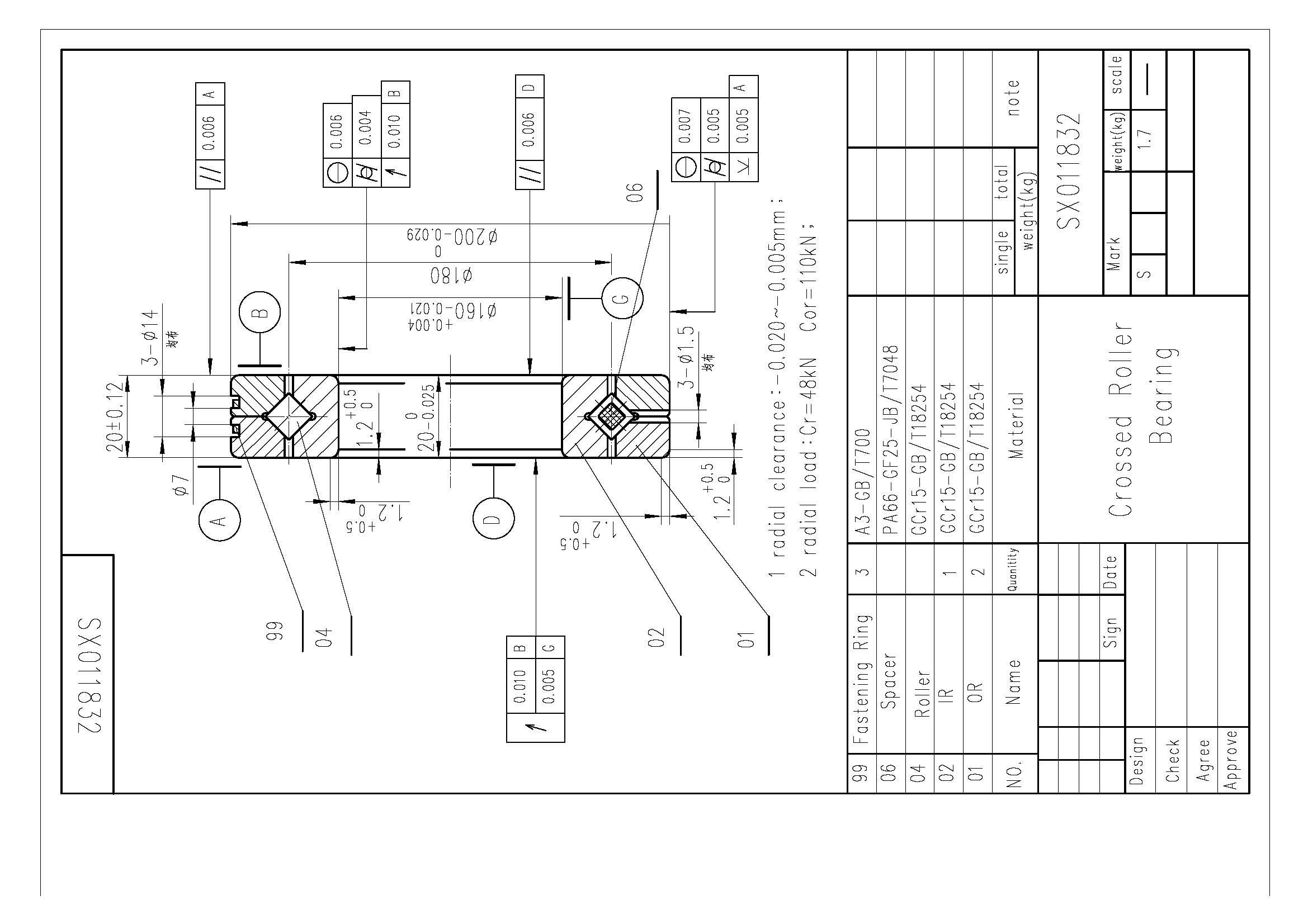

SX011832 GCr15 or GCr15SiMn crossed roller bearing P5 / P4 / P2 Accuracy
| di | 160 mm | Tolerance: K6 |
| +0,004/-0,021 | ||
| Da | 200 mm | Tolerance: h6 |
| 0/-0,025 | ||
| H | 20 mm | Section height of bearing |
| Tolerance: +/-0,1 | ||
| Di | 180,8 mm | |
| DM | 180 mm | |
| da | 179,2 mm | |
| h | 20 mm | Height of individual ring |
| Tolerance: E8 | ||
| 0/-0,025 | ||
| rmin | 1,1 mm | |
| S | 1,5 mm | Lubrication hole: 3 holes spaced evenly around the circumference |
| m | 1,7 kg | Mass |
| 0,015 mm | Running accuracy, radial | |
| 0,010 mm | Running accuracy, axial | |
| sr min | 0,005 mm | Min. radial bearing clearance |
| sr max | 0,020 mm | Maximum radial bearing clearance |
| sk min | 0,010 mm | Min. axial tilting clearance |
| sk max | 0,04 mm | Maximum axial tilting clearance |
| RLOmax | 0,004 mm | Low clearance: Radial clearance |
| RLOmax | 0,008 mm | Low clearance: Preload |
| VSPmin | 0,005 mm | Min. bearing preload |
| VSPmax | 0,020 mm | Maximum bearing preload |
| Ca | 69000 N | Basic dynamic load rating, axial |
| C0a | 255000 N | Basic static load rating, axial |
| Cr | 49000 N | Basic dynamic load rating, radial |
| (for radial load only) | ||
| C0r | 126000 N | Basic static load rating, radial |
| (for radial load only) | ||
| nG ?l | 850 1/min | Limiting speed for oil lubrication with normal clearance |
| nG Fett | 425 1/min | Limiting speed for grease lubrication with normal clearance |
| nG ?l | 425 1/min | Limiting speed for oil lubrication with preload |
| nG Fett | 210 1/min | Limiting speed for grease lubrication with preload |
| 61832 | Dimensions identical to ISO dimension series 18 |
| SX series crossed roller bearings | |||||||||||
Identification number | Main dimensions | Basic load rating(axial) | Basic load rating(radial) | Weight | |||||||
| Ca | Coa | Cr | Cor | ||||||||
| d | D | Dpw | B B1 | S | r | kN | kN | kN | kN | kg | |
| SX011814 | 70 | 90 | 80 | 10 | 1.2 | 0.6 | 18 | 60 | 12 | 30 | 0.3 |
| SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 26 | 96 | 17 | 47 | 0.4 |
| SX011820 | 100 | 125 | 112 | 13 | 1.2 | 1 | 28 | 106 | 18 | 52 | 0.5 |
| SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 41 | 153 | 26 | 75 | 0.8 |
| SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 64 | 237 | 41 | 116 | 1.1 |
| SX011832 | 160 | 200 | 180 | 20 | 1.5 | 1.1 | 69 | 272 | 44 | 133 | 1.7 |
| SX011836 | 180 | 225 | 202 | 22 | 2 | 1.1 | 98 | 381 | 63 | 187 | 2.3 |
| SX011840 | 200 | 250 | 225 | 24 | 2 | 1.5 | 106 | 425 | 68 | 208 | 3.1 |
| SX011848 | 240 | 300 | 270 | 28 | 2 | 2 | 149 | 612 | 95 | 300 | 5.3 |
| SX011860 | 300 | 380 | 340 | 38 | 2.5 | 2.1 | 245 | 1027 | 156 | 504 | 12 |
| SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 265 | 1148 | 167 | 563 | 13.5 |
| SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 385 | 1699 | 244 | 833 | 24 |
| SX0118/500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 560 | 2538 | 355 | 1244 | 44 |
The Brief Description of Cross Roller Bearings:
Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.
