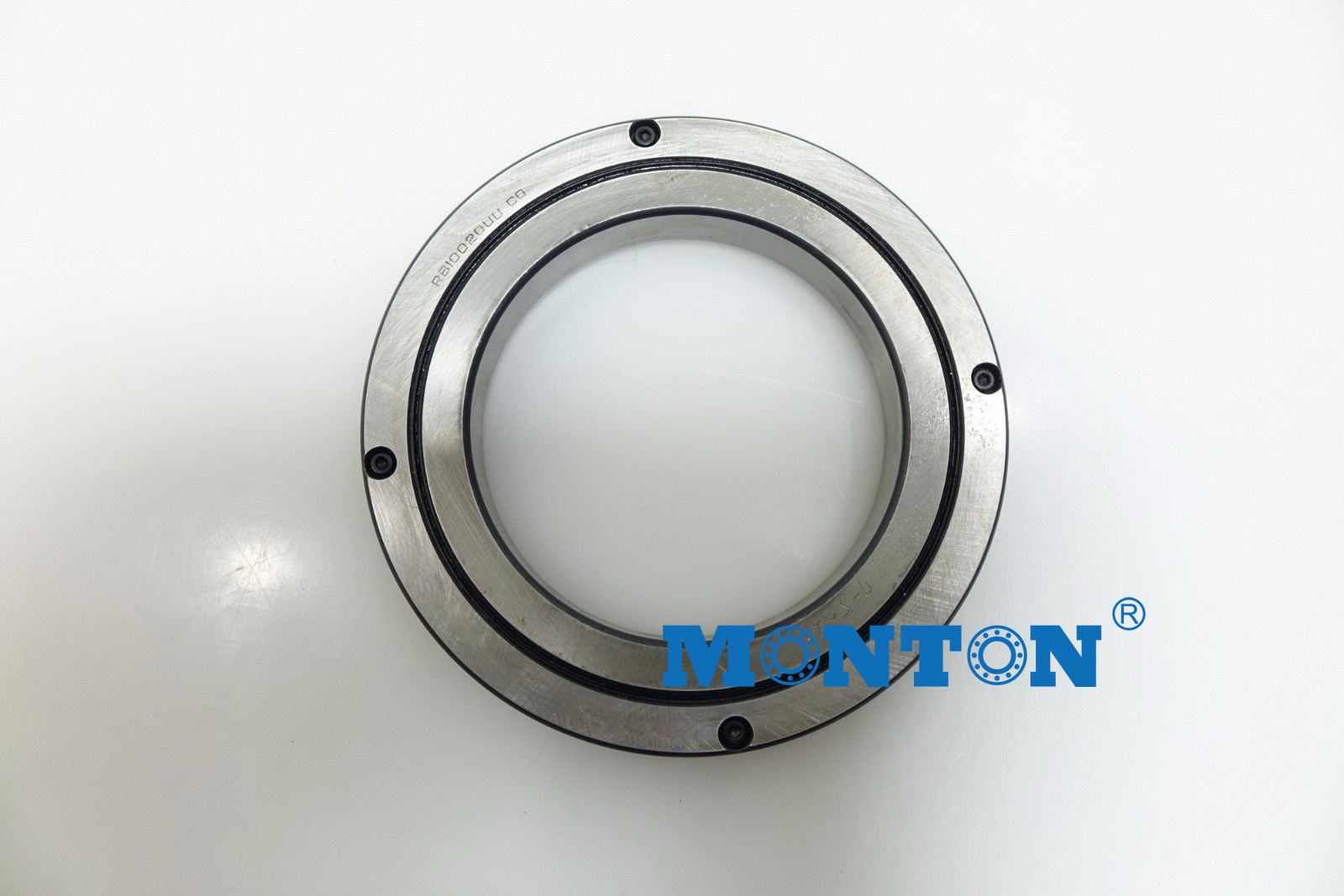

RE2008UUCC0P5 Crossed Roller Bearings Customized Csf Harmonic Drive Special For Robot
- Shanghai or Beijing
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
RE2508UUCC0P5 Robot Crossed Roller Bearing Harmonic Reducer Radar Machine Tools
-
RE3010UUCC0P5 Crossed Roller Bearing Robot For Welding Work In Automobile Manufacturing Lines
-
RE3510UUCC0P5 Crossed Roller Bearing Glass Transport Robot In LCD TV Manufacturing Lines
-
RE4010UUCC0P5 Semiconductor Wafer Transport Robot Rotation Shaft Crossed Roller Bearings
-
RE4510UUCC0P5 Vertical Machining Center Machine Tool Machining Center Rotation Shaft Bearings
-
RE5013UUCC0P5 Vertical Complex Grinder Machine Tool Rotation Shaft Of Table Crossed Roller Bearings
Product Details
| Brand Name | Monton | Place of Origin | China | |
| Model Number | RE2008UUCC0P5 | Number of Row | Single Row | |
| Seals Type | open or sealed | Precision Rating | 50000r/min | |
| Outside Diameter | 10, 260 | Bore Size | 25, 245 |
Product Description

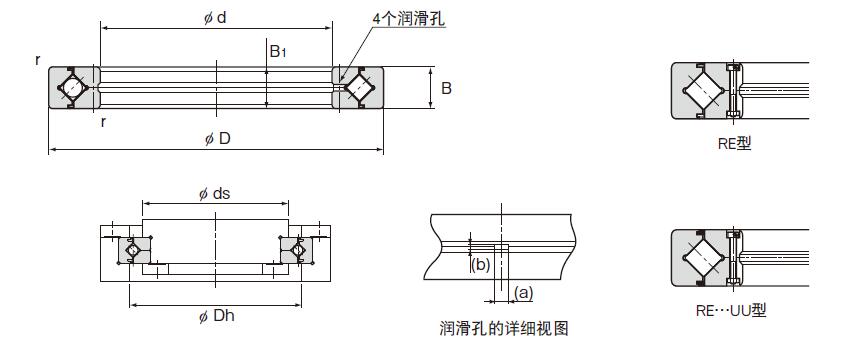

RE2008UUCC0P5
| Shaft diameter | Model No. | Major dimensions | Shoulder dimensions | Basic load rating (radial) | Mass | ||||||||
| Inner diameter d | Outer diameter D | Roller pitch circle diameter dp | Width B B1 | Greasing hole | rmin | ds | Dh | C kN | C0 kN | kg | |||
| a | b | ||||||||||||
| 20 | RE2008 | 20 | 36 | 29 | 8 | 2 | 0.8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
RE type is two pieces Inner Ring Type for Rotation.
Having the same major dimensions as model RB, this model is usedin locations where the rotation accuracy of the outer ring is required.
This type cross roller bearing allows just one bearing to receive loads in all directions including radial, axial and moment loads.
RE series model is shaped by the XRB generated new style design , the main dimensions and XRB same type . Its structure is split inner ring is the type ,the outer ring is the one designed for applications requiring high precision rotation of the outer parts.
With the Cross-Roller Ring, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90゜V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads.
Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the innerand outer rings, it is optimal for applications such as joints and swiveling units of industrial robots,swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medicalequipment, measuring instruments and IC manufacturing machines.
Applications :
Precision Industrial Purpose
joints and swiveling units of industrial robots
swiveling tables of machining centers
rotary units of manipulators, precision rotary tables
medical equipment,
measuring instruments
IC manufacturing machines
