RB15013UUCC0P5 RB15025UUCC0P5 RB15030UUCC0P5 Harmonic Gear Reducer For Robot
- Shanghai or Beijing
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
RB16025UUCC0P5 Crosser Bearings Customized Csf Harmonic Drive Special For Robot
-
RB17020UUCC0P5 Harmonic Cross Over Bearing
-
RB18025UUCC0P5 Harmonic Drive Bearings Csf Harmonic Drive Special For Robot
-
RB19025UUCC0P5 Harmonic Reducer Bearing , Harmonic Drive Reducer
-
7004CTRDULP4Y With 15° Contact Angle Super Precision Angular Contact Ball Bearing for Machine Tool Spindle
-
Angular Contact Ball Bearing 7306C Single Row Bearing 30*72*19mm Ceramic Angular Contact Ball Bearing Manufacturers
Product Details
| Brand Name | Monton | Place of Origin | China | |
| Model Number | RB15013UUCC0P5 | Number of Row | Single Row | |
| Seals Type | open or sealed | Precision Rating | 50000r/min | |
| Outside Diameter | 10, 260 | Bore Size | 25, 245 |
Product Description
RB15013UUCC0P5
RB15025UUCC0P5
RB15030UUCC0P5

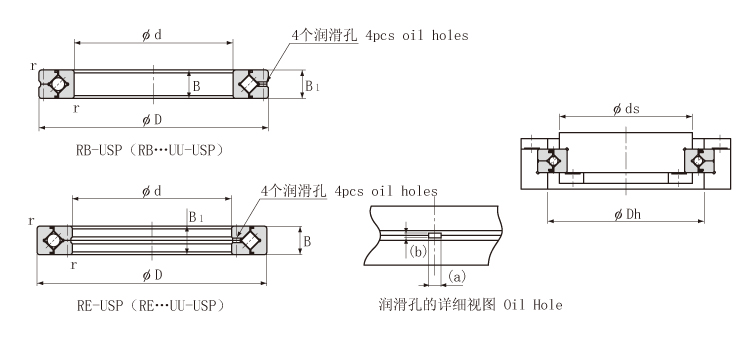

| Shaft Diameter | Bearings | inner ring | outer ring | Roller pitch circle diameter | width | Greasing hole | Chamfer | Shoulder height | Basic load rating(radial) | weight | ||
| d | D | dp | B B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
| 150 | RB15013 | 150 | 180 | 164 | 13 | 2.5-1.6 | 1.6 | 157 | 172 | 27 | 53.5 | 0.68 |
| 150 | RB15025 | 150 | 210 | 178 | 25 | 3.5-2 | 2 | 164 | 194 | 76.8 | 128 | 3.16 |
| 150 | RB15030 | 150 | 230 | 188 | 30 | 4.5-3 | 3 | 173 | 211 | 100 | 156 | 5.3 |
Model RB (Separable Outer Ring Type for Inner Ring Rotation)
Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools.
Structure and Features
With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent
roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows
just one bearing to receive loads in all directions including radial, axial and moment loads.
Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the
inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial
robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables,
medical equipment, measuring instruments and IC manufacturing machines.
Concept of the Cross Roller Ring
The Cross-Roller Ring is a high-rigidity, compact, and easy-to-use product designed based on the
double cone roller bearing and angular contact ball bearing which had been popular.
Applications:
?Industrial Robotic arm,Reducer drive
?precision Turntable,NC rotary table
?Rotation part of Machine tools
?Inspection instrument,Medical equipment
? Aviation equipment,Military radar etc
