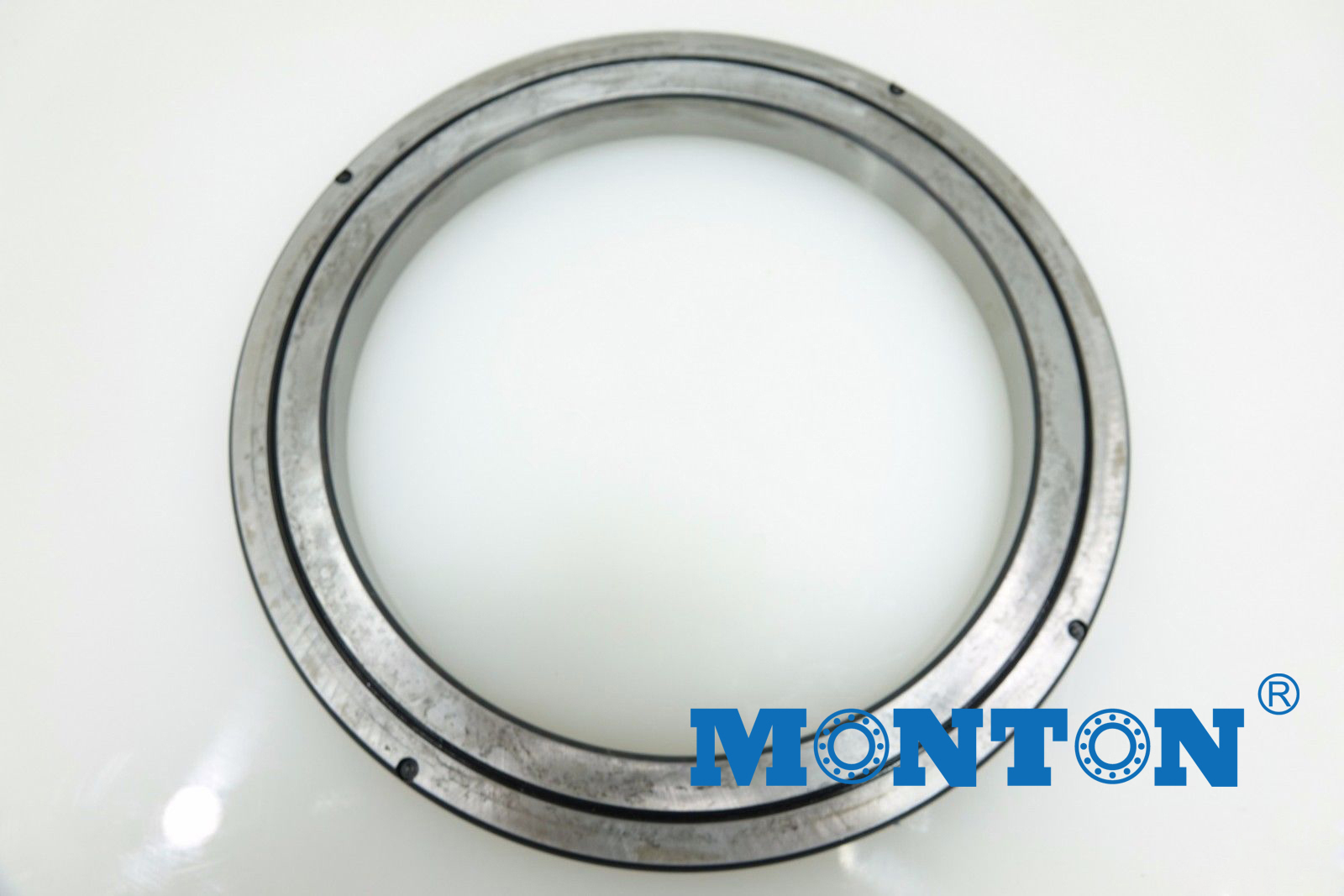

SX011824

SX series crossed roller bearings is one type of INA crossed roller bearings.

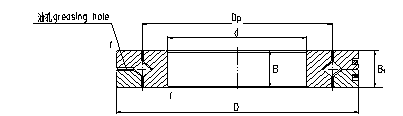

The structure of SX series cross roller bearing is similar to RB series crossed roller bearings, and the outer ring is divided into 2 pieces, with the inner ring rotating, which is connected by three fixed rings. SX series crossed roller bearing is suitable for these parts with high precision of inner ring rotation. Compared with the traditional model, SX series crossed roller bearings’ rigidity is increased by 3 or 4 times. The inner ring or outer ring is two separate structures, the clearance of the bearing can be adjusted. Even if the bearing is preloaded, it can also be rotated with high precision, high rigidity, high bearing capacity, small volume, etc.

Product Application:

Industrial Robotic arm, Reducer drive

precision Turntable, NC rotary table

Rotation part of Machine tools

Inspection instrument, Medical equipment

Aviation equipment, Military radar etc

The Brief Description of Cross Roller Bearings:

Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.

Bearing features:

1. High precision: precision at P4, P2.

2. High rigidity: this series bearings are with preload.

3. High load capacity: this series bearings can support axial load, radial load, and tilting load.

4. Small volume: this series bearings can save space for the machine.

Cross Bearing Advantages:

1. with excellent rotational accuracy

2. Installing simplifies operation

3. Bear large axial and radial loads

4.Significant savings in installation space

5. High speed capability

6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to changes .

7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing

8. Optimization of preload, rigidity, high precision guide rollers running

9. Carburizing steel provides excellent impact resistance and surface abrasion resistance

10. Simple but adequate lubrication
we are a factory to produce crossed roller bearings, high rigidity and accuracy .we have many stock.

INA SX series .
SX011814
SX011818
SX011820
SX011824
SX011828
SX011832
SX011836
SX011840
SX011848
SX011860
SX011868
SX011880
SX0118500
