Product Details
| Brand Name | Taizy | Place of Origin | Henan, China | |
| Model Number | TZ-80 TZ-100 TZ-160 | Type | Cold & Hot Pressing Machine | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 80-600kg/h | Dimension(L*W*H) | 1650*1150*1750 | |
| Voltage | 220/380/110v | Condition | New | |
| Power(W) | 1.5kw ~5.5kw | Automatic Grade | Automatic |
Product Description
peanut oil press machine Pressing screw model - seeds oil press machine
Introduction:
The oil press machine is an advanced oilseed processing machine. Characterized by their high oil output rate, good quality, simple design, easy,and continuous operation. These oil seed mill can be used to preocess various oil seeds, such as peanut, beans, rape and cotton seeds, sesame, olive, sunflower, coconut, grass seed etc.
This kind of oil press machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc. It press soybean and cotton seeds very well. It utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
Advantages:
1.Saving labor:it could saving 60% output and 40% labor cost per day.
2.Pure oil quality:the vacuum oil filtering is used to remove residues completely.
3.Small land-using:an area of 10-20 square meter workshop.
4.It is applicable for more than 20 kinds of oil crops,such as peanuts,sesame and soybean and so on.
5.Packaging and delivery:we could pack the products according to the customers requests and ship the goods within 5-30 working days after payment.
Details parameters :
Model | TZ-80 | TZ-100 | TZ-120 | TZ-130 | TZ-160 | |
Screw speed | 30-45r/min | 30-40 r/min | 30-40 r/min | 28-40 r/min | 28-40 r/min | |
gear ratio | 14/42x19/57 =1:6.63 | 15/40x15/55 =1:9.78 | 15/34x15/55 =1:9.59 | 15/38x19/48 =1:7.38 | 15/38x15/52 =1:8.78 | |
Dimension | 1650x1150 x1750 | 1950x1300 x1900 | 2050x1350 x2000 | 2200x1600 x2150 | 2500x1600 x2500 | |
Productivity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h | |
Equipped with power | power | Y160L-6-5.5KW | Y160M-6-7.5KW | Y160L-6-11KW | Y180L-6-15KW | Y200L-6-18.5KW |
| Y90S-4-0.55KW | Y90S-4-1.1KW | Y100L1-4-1.5KW | Y100L1-4-2.2KW | Y100L1-4-2.2KW | |
| 2KW | 3KW | 3.3KW | 3.8KW | 4KW | |

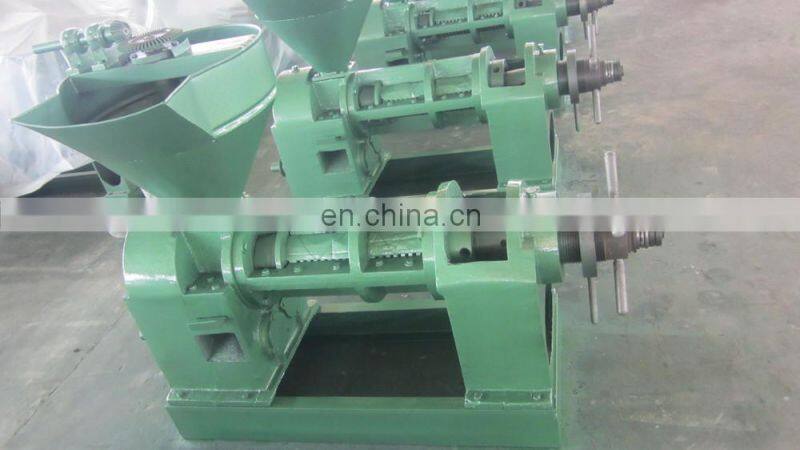

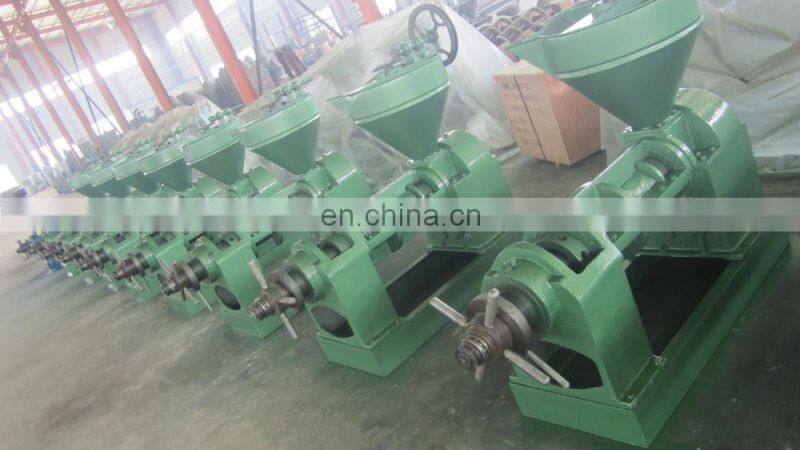

Pictures show:
