2016 New generation Coal powder molding machine/Mine Power Briquette Press Ball Machine

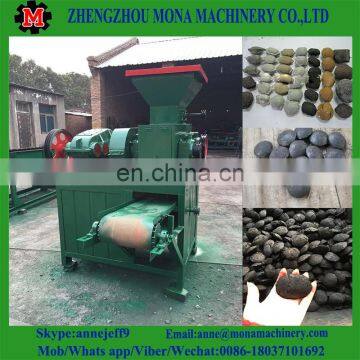

Introduction of Coal ball briquetting press machine

Coal ball briquetting press machine can press coal powder,dry powder,coke powder,carbon powder,iron scale, mineral waste residue,iron powder,variety of powder metallurgy and Sponge iron carbon products into different shape and size balls according to the different moulds. It is mainly used for boiler heating or used at home for cooking,BBQ.The shape and size also could be desingned of oval shape,egg shape,pillow shape,square shape,etc.This machine widely used in coal industry and metallurgy industry.

Features of Coal ball briquetting press machine

1.High briquette ratio and high density,energy saving
2.Professional Ball briquette machine manufacturer
3.Advanced briquette technology
4.Environment friendly briquette machine
5.Shape of briquette could be designed according to the customer requirements
6.High pressures briquette machine

Requirements of raw material:
a) Size of materials: less than 1mm, should be controlled between 30-40%; between 1-2mm, should be 30-40%; the max size should be no bigger than 3mm, with 20%.

b) Moisture of material: should be in8-12%.

c) Not allowed: slad or other massive sundries with high hardness, or the roll and splindle will bedemaged.
d) Agglomerant or other additives(e.g. dedulfurizer): should be prepared by users in accordance with coal type and the operating environment(or supplied by the supplier through consulation)

Moulds of Coal ball briquetting press machine
The moulds could be customized according to the customer's requirements.

Final product of Coal ball briquetting press machine

The shape of the final product can be round shape,square shape,ellipse shape and pillow shape.We could by changing the mold for different shape and size.We also could customized moulds according to the customer's requirements

Working principle of Coal ball briquetting press machine
The working principle of charcoal/coal ball making machine is pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

Technical parameter of coal ball press briquettes making machine
