Cake Edible Cooking Rice Bran Oil Solvent Extraction Plant Machine Production Line

A-2.Raw materials softening

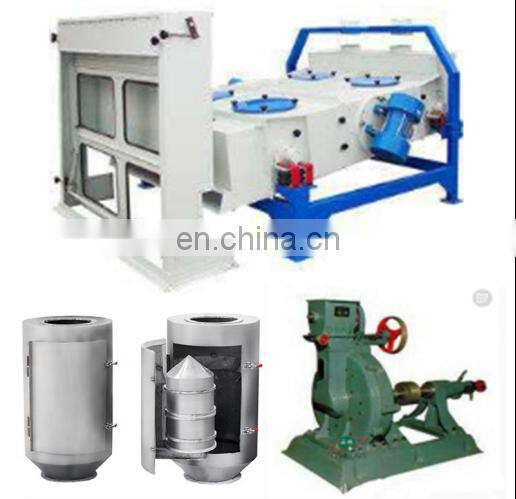

A-3. Raw materials flaking

Solvent-- Extractor--Mixed oil --  1st and 2nd evaporation -- Stripping tower -- Crude oil Wet meal -- DTDC toaster -- Meal

Workshop details:
leaching (extraction), evapo-separate (embryos solvent material separation), evaporation (oil and solvent separation), condensation,
exhaust gas recycling, water recovery and other systems

Working principle:
Leaching system is an oil extraction through soaking or spraying prepressed cake by a certain organic solvent. The principle of this
part is the different solubility of solvent.

Main process:

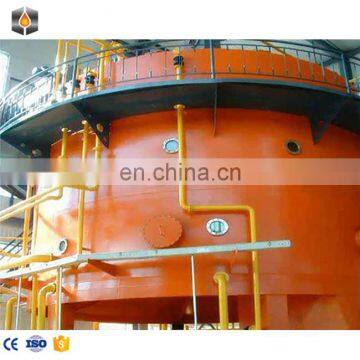

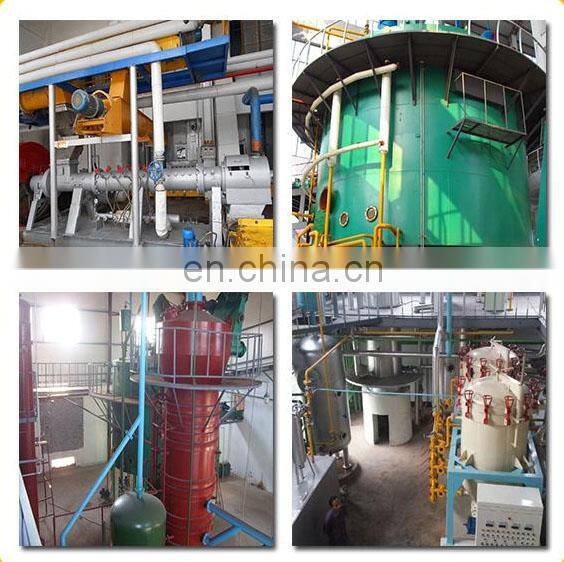

(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.

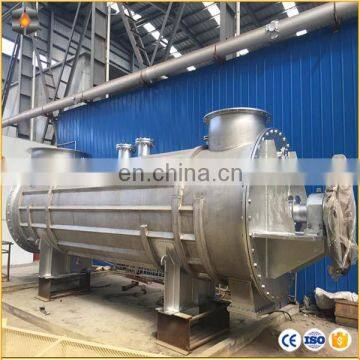

(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.

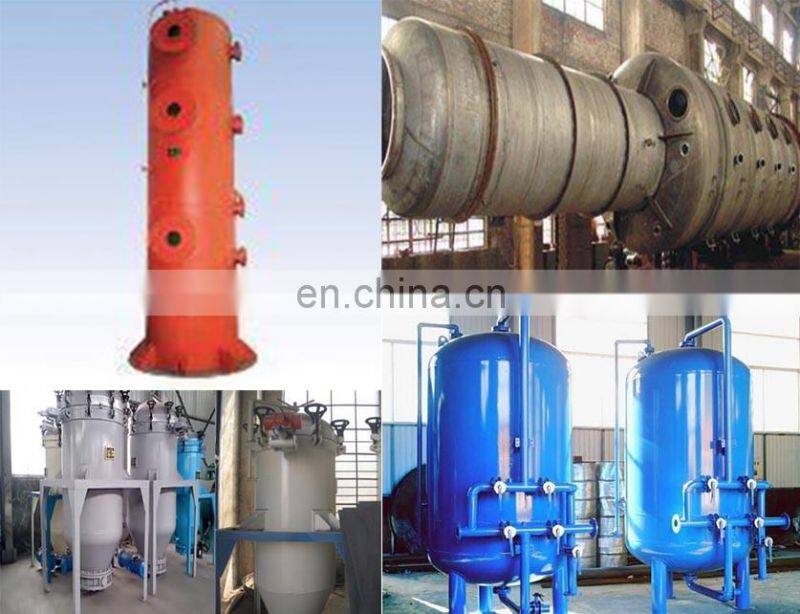

(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is
separated.

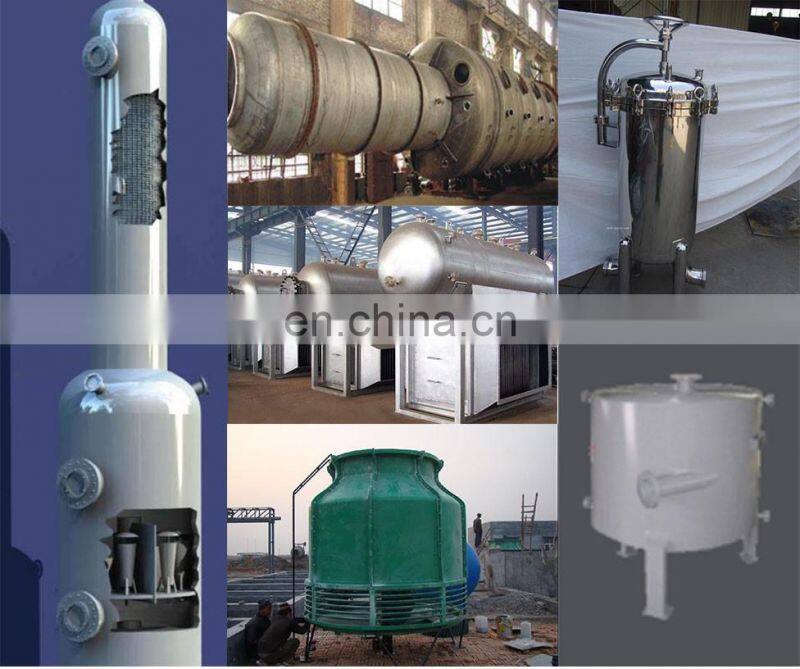

(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can
get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

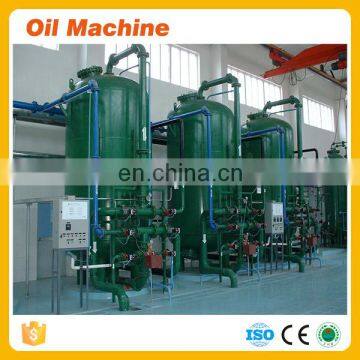

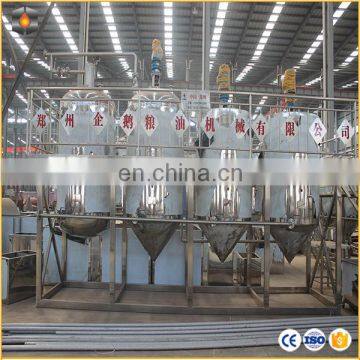

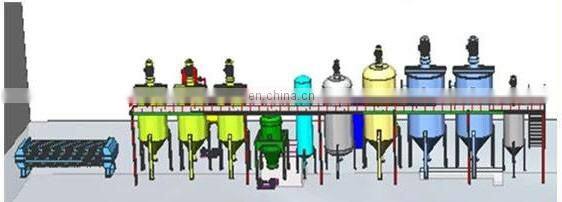

C-1. oil degumming and deacidification: removing the phosphatide by adding hot water and alkalia.

2. oil decolorizing:removing the pigment by adding bleaching earth,and then use the filter to separated the wasted earth.

C-3. oil deodorization: removing the FFA  and other solid particle to get the good smell oil

Wuhan HDC  is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our company and customers in our workshop.

What is the warranty of the machines?
12 months free guanantee and life long standard paid service.

What is the raw material of your machinery?
Stainless steel and carbon steel.

When can I get the price?
Within 24 hours, if urgent, please directly contact us.

How to ask quotation?
Please inform us your crude oil specifications and your target capacity per day, then we will send our proposal as soon as possible.

How many areas are required to build the plant refinery?
The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.

How long will it take to get my products?
In general, it will take us 45-120 days to make the machinery, and 3-7days to shipping port.

Can you install the production line and train our stuffs for free?
Yes we can. We'll send engineers to help you install the equipment and train your workers freely.
