Product Details
| Brand Name | KAIBOCNC | Place of Origin | Zhejiang, China | |
| Certification | CE, ISO9001, ISO14001 | |||
| Warranty | 1 Year | Weight | 4200Kg | |
| Dimension(L*W*H) | 2200*1800*2200mm | Voltage | 380V | |
| Condition | New | Power(W) | 12Kw | |
| CNC or Not | CNC |
Product Description
Small size 5 axis, Voltage 380V router cnc
Standard features:
1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer

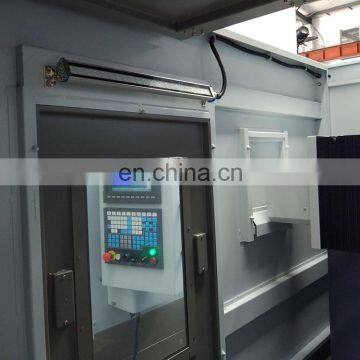

4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motor and drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium

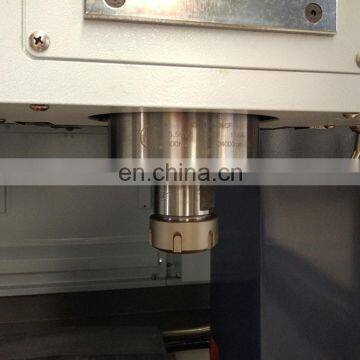

8. Main axle:5.5kw high precision variable frequency main axle turns machining into a kind of artistic model.
Application:
Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
| SPECIFICATION/MODEL | DC6060A |
| Positioning accuracy | 0.01/300mm |
| Repeat positioning accuracy | ±0.005mm |
| X,Y,Z Axis Travel | 600×600×260mm |
| Table Size | 615×600mm |
| Z-Axis to space height | 530mm |
| Max. Loading | 300kg |
| Power supply and total capacity | 380v/12kw |
| Spindle Motor Power | 5.5kw |
| X/Y/Z Axis Motor | 850w/850w/850w |
| Spindle Speed | 24000rpm |
| Max. Engraving speed | 8m/min |
| Tool Holder | Er25 (¢3.17-¢16) |
| Servo Motor | AC servo motor |
| Weight | 4000kg |
| Dimensions | 2300×1840×2240mm |
company information:
With over 20 years of machine tools manufacturing experience,in particular CNC engraving milling machines.Kaibo with independent research and development,design,production,has been named China famous brand.In china,only CNC engraving milling machines share more than 30% market.Kaibo developed the CNC engraving milling machine corporate standars,was designated as the national standard by GB in 2009.
And Kaibo total of three plants,360 staffs,260 technicians.From 2007,output value of more than 20 million dollars.So far remained 20%-30% growth each year,each year produce over 2000pcs.Kaibo excellant quality CNC engraving machines has won wide recognition of mold manufacturing,metal cutting and other sectors.And exported to many countries such as Vietnam,India,Indonesia,Bangladesh,Turkey,Iran,Russia,South American and other places.
We will always work with aim of "Forging competitive engraving products to meet demand of "customers"and will try our best to offer highly active service."
WHY CHOOSE US
1. We are Manufacturer (Not Dealer):
All machineries from NINBO KAIBO CNC MACHINERY CO., LTD are made by ourselves, with lower price, good quality and assured full after service.
2. How to choose the best fit for your machine?
If you have special request for the machine tool configuration,And the budget is limited,We can also according to your need to change the configuration.
3. If you are new for this business:
Many thanks for your trust;So please give us some more information about your requirement in your enquiry.
What is the type and size of raw material?
What is required size of final product(mm)?
4.Where can we buy the machine's parts:
Our company can provide machines for your any time.
Training and maintenance
1. In order to you more efficiency for production,At the end of the contract is signed,You can send someone to my company for professional CNC programming and operation training.
2. Warranty is 12 months which begins from the day when the machine has arrived at the importer's port.
If the device can 't work normally,My company after received your notice, We will solve it for you as soon as possible.If it is artificial damage,The Need to charge a cost.
Warranty expires,Machine tools are still support maintenance.
