Frame 3 Axis With Syntec System Sheet Metal Aluminium Mold Engraving Machine Cnc 6040
- 1000 per Month
- T/T Credit Card
You May Like
-
DC6040A cnc machine, 3 Axis milling and engraving machine
-
DC6040A High Accuracy Ball Screw Copper Milling CNC Machine For Mold
-
Special For Shoe Mold Making Engraver Cnc Machine Manufacturer
-
DC6040A CNC Engraving Machine for shoe sole mould making
-
DC6040A HIGH PRECISION MACHINE FOR MOLD MAKING,MACHINE CNC
-
DC6040A High Speed Mini Refinements Mould Making CNC Milling Machine
Product Details
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Condition | New |
Product Description
Standard features:
1. Cooling system:Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Qualityassurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motorand drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium
8. Main axle:1.5kw high precision variable frequency main axle turns machining into a kind of artistic model.
Application:

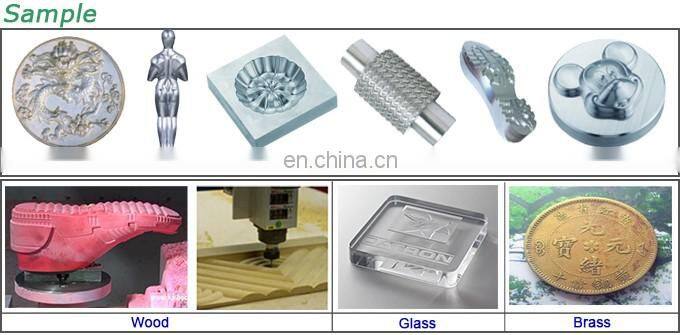

Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
1.Description of CNC Machine
| Main Specification | Unit | cnc 6040 |
| X-axis travel | mm | 600 |
| Y-axis travel | mm | 400 |
| Z-axis travel | mm | 140 |
| Z-axis space | mm | 300 |
| Positioning accuracy | mm | 0.01/300 |
| Repeatable Accuracy | mm | 0.01 |
| Worktable size | mm | 625X450 |
| Max. Loading | kg | 150 |
| Rapid speed | m/minute | 8 |
| Spindle speed | rpm | 24000 |
| Machine weight | T | 2.0 |
| Overall size | mm | 1910X1730X1870 |
| Power | three-phase 380V | 4KW |
| Servo motor power | W | 400W |
| Servo motor drive | W | 400W |
| Tool holder | Er16 | |
| Standard Accessories | Linear Guides(HG20) | Hiwin/Taiwan |
| Ball Screw(2005) | Hiwin/Taiwan | |
| Servo Motor(400w) | Panasonic/Japan | |
| Servo Motor Drives(400w) | Panasonic /Japan | |
| High-speed Spindle(1.5kw) | Bohua / China | |
| Spindle Inverter(1.5kw) | Taian/Taiwan | |
| Electronic Hand-Wheel(EHDW-BA5S-1) | Yuanzhan/Taiwan |

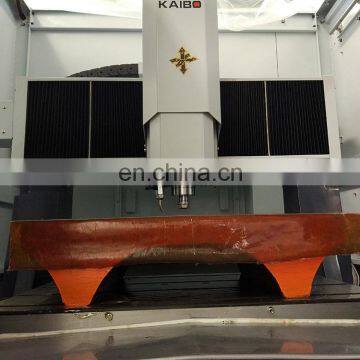

2.Pictures of CNC Machine
Trade Item Of Products
| Transportation | always by sea |
| Payment terms | T/T,L/C At Sight or as your request |
| Package | 1 piece/carton,piece into a master carton |
| Delivery time | by sea,within 45 work days |
Our Best Services For You
1.Technician available for training and installation at customer's company
2.Internet service by sending emails and videos,communicating online or calling
3.We will reply you as soon as possible after we receive your email
4.We can offer both OEM and ODM service according to customers' request
5.If novelties exist in any non-human-made problems,please contact us at your first time and we will offer you a satisfied
solution according to your suitation
About Us
With over 20 years of machine tools manufacturing experience,in particular CNC engraving milling machines.
Kaibo with independent research and development, design, production, has been named China famous brand.
In china,only CNC Engraving milling machines share more than 30% market.
Kaibo developed the CNC engraving milling machine corporate standards, Was designated as the national standard
by GB in 2009.Kaibo total of three plants, 360 staffs,210 technicians. From 2007,output value of more than 20
millon dollars,So far remained 20% -30% growth each year,each year produce over 2000pcs .
Kaibo excellent quality CNC engraving machines has won wide recognition of mold manufacturing, metal cutting
and other sectors.And exported to many countries such as Vietnam, India,Indonesia,Bangladesh,Turkey,Iran,Russia,
South America.
We will always work with aim of "Forging competitive engraving products to meet demand of customers"and will
try our best to offer highly active service."
2.Our Company Show
3.Certificates For Our CNC Machine
4,Welcome To Contact Us
