PUR Flexible Drum-reeling Cable, Lift cable, crane control cable
- SHANGHAI PORT
- T/T D/P D/A Other
- 7 days
You May Like
Product Details
| Brand Name | ECHU | Place of Origin | China | |
| Model Number | RVV-NBR RVV-NBR-PUR | Application | Overhead | |
| Insulation Material | PVC | Jacket | PVC | |
| Conductor Material | Copper |
Product Description
Applications:
As connecting and control cable for lift or crane, it is also used for various kinds of electric installation in dry or wet indoor as well as outdoor.
Properties:
The Butadiene-acrylonitrile rubber insulation and SPECIAL PUR outer sheath makes the cable is flame retardant and self-extinguishing,waterproofing , oil resistance, cool resistance,abrasion resistance, anti-ultraviolet.

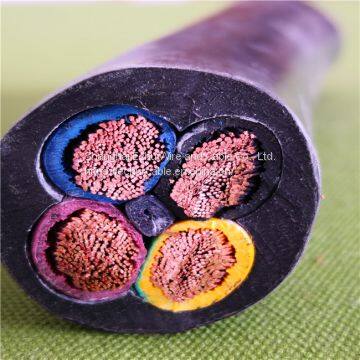

Structure:
Conductor:superfine copper strands acc. to VDE 0295, class 5
Insulation: Butadiene-acrylonitrile rubber/based on with Butadiene-acrylonitrile rubber as torsion protection.
Colour: various colour cores with number acc. to JISC3306 or wth
green/yellow
Inner liner: non-woven fabric wrapping to release impact
Outer sheath:Special PUR
Uted insulated cable rope among cores functions as tensile resistance
The outer sheath is flame retardant and self-extinguishing,waterproofing , oil resistance, cool resistance,abrasion resistance, anti-ultraviolet.
(acc. to VDE 0482, part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1).colour black.
Technical data
Rated voltage:450/750V
Test voltage: 2500V
Temperature range:
fixed installation: -50℃ to +90℃
flexible application: -30℃ to +90℃
Minimum bending radius: 10X outer diameter
