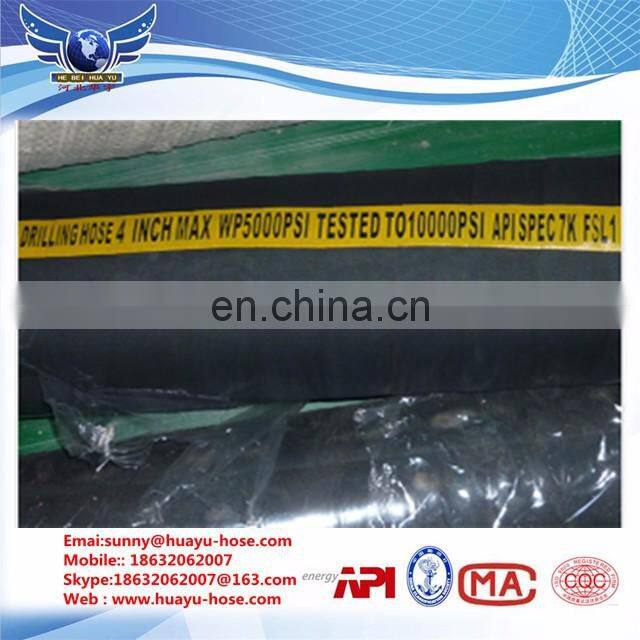

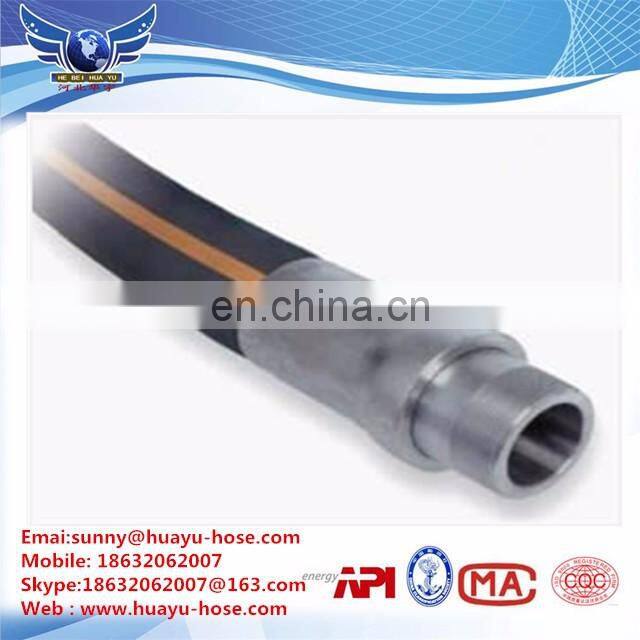

High Pressure Black Rotary Vibrator Hose5000psi

5,000 psi W.P. - 10,000 psi Test- Grade D- 12,500 psi Minimum Burst
Certification/Standards:
API Spec 7K--ISO 14693--ABS approval
Recommended For:
Flexible connection between standpipe and swivel (Rotary Drilling) or between pump and standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work. Meets the high demands of directional drilling and down linking with negative pressure pulses and elevated temperatures. This hose can also be used as a Motion Compensator hose for stabilization of rotary drilling and pumping equipment against vertical wave action on offshore drill platforms. The Motion Compensator hose is not recommended for phosphate ester fluids.
Tube:
Modified Nitrile. 3/16” thick. Black. Specially designed for handling abrasive, corrosive and oily drilling mud.
Reinforcement:

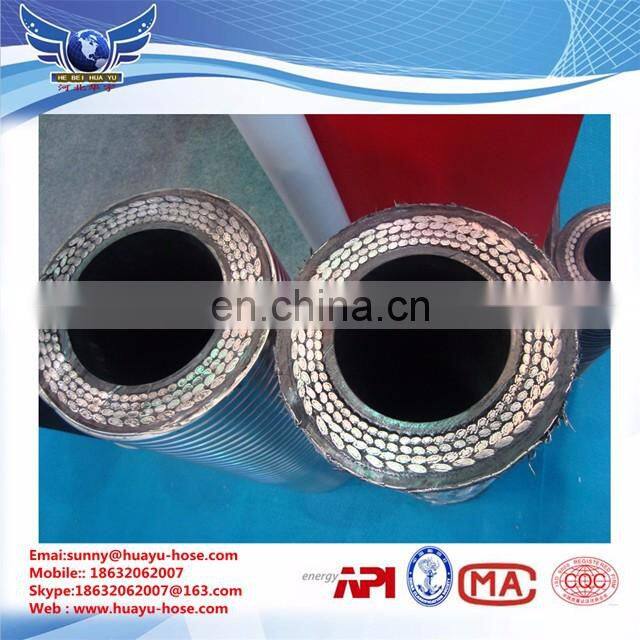

Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Modified Nitrile. Black. Specially designed Ultra abrasion cover is resistant to abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:

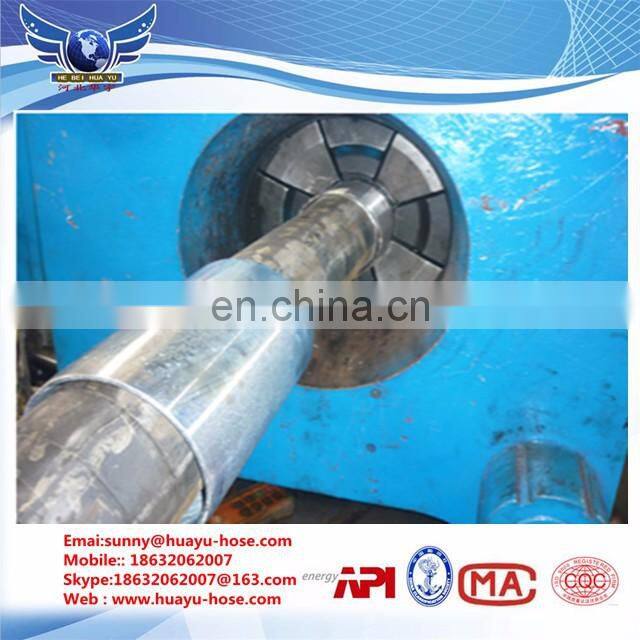

Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.

Temperature:
-4℉ to +180℉ (-20℃ to +82℃) continuous service.
Options:

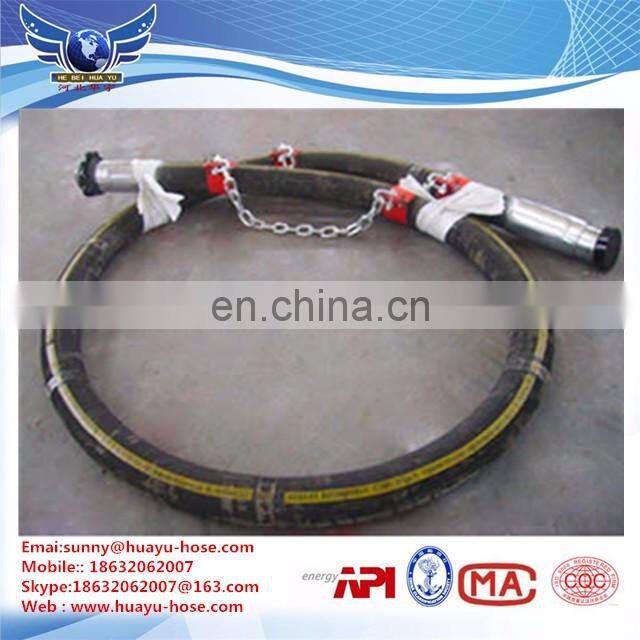

Accessories such as safety clamps, hose lift eyes and stainless steel armor are available upon request.
Test:

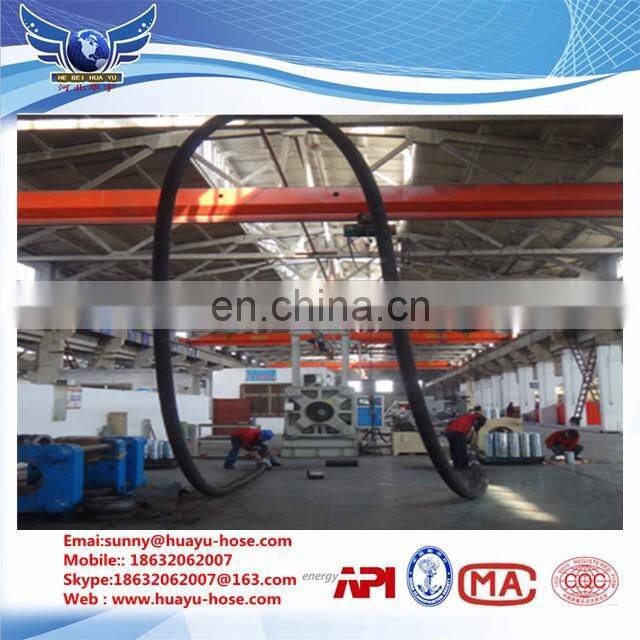

Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.

Fast delivery.
We will manufacture the products try our best after we receive the deposit. And we will deliver the products to our customers as soon as possible after we finish producing the products. What's more, our products are well-packaged before they are delivered to customers to ensure that the products are undamaged in the transportation.
Considerate after-sale service.
We have professional staff giving you specialized instructions according to your questions. And we supply free drilling hose knowledge, including the matters need to attention, correct using method, the specification of drilling hose, how to choose drilling hose correctly and so on.

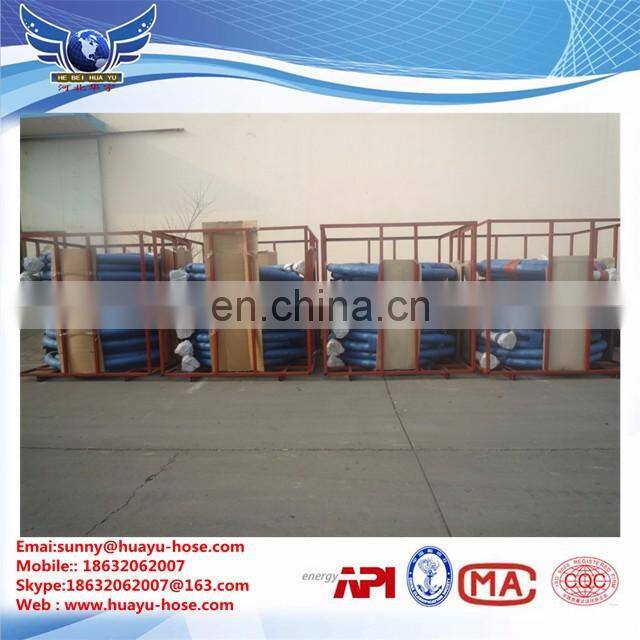

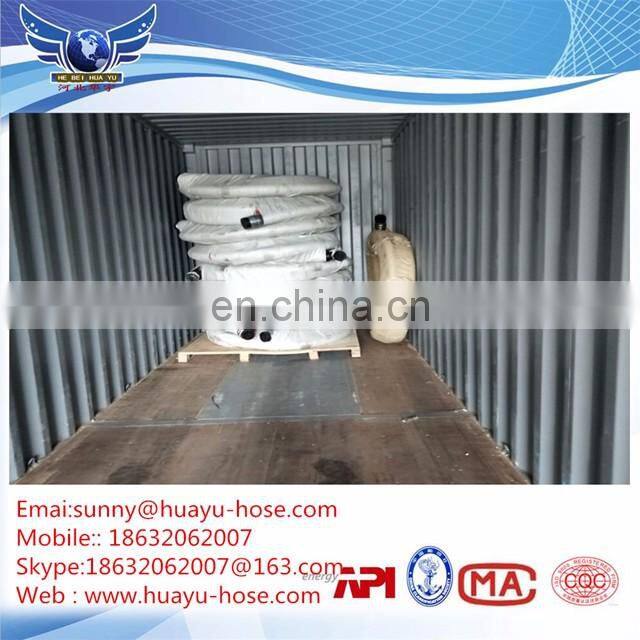

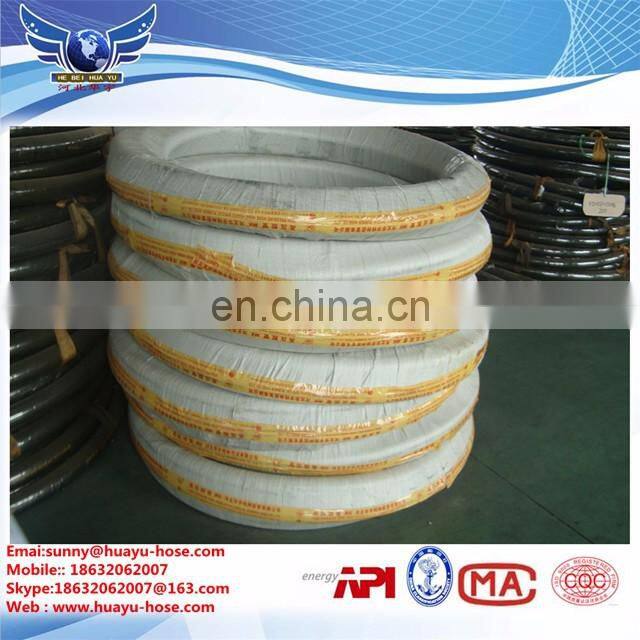

Packing Details  : wooden package, steel wire package or as your special requirement

Delivery Details : About 15 days after advance payment

The working pressure of drilling hose is designed based on the maximum working pressure of drilling machine. The minimum burst pressure of drilling hose is 2.5 times as high as the working pressure. Therefore, even though the pump breaks down, the drilling hose will not burst.

The tube of drilling hose is made from nitrile rubber, which can prevent the oil-based mud from permeating out of hose leading to the hose damage in the process of conveying the oil-based mud.

Our drilling hose is manufactured with integral connectors and the connectors are resistant to pull-off, which can avoid the connectors falling off and hurting the workers in the process of pressure test. And this feature improves the pressure resistance and safety performance of drilling hose greatly.
