RFTYT WG2525X VHF 0.35-4.0 GHz High Frequency Range TAB SMA N RF Drop in Isolator
US$ 1 - 100
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
You May Like
-
RFTYT TG6466E 0.03-0.23 GHz Low VSWR IBS High Quality RF Coaxial Isolator
-
RFTYT WG6060E VHF 30-230 MHz Low VSWR Insertion Loss RF Drop in Isolator
-
RFTYT WG5050E 160-330 MHz VHF High Forward Power 400W RF Drop in Isolator
-
RFTYT WGH5032X 0.35-4.0 GHz UHF SHF TAB RF Dual Junction Drop in Isolator
-
RFTYT SHF TG3434E 0.7-3.1 GHz SMA N Connector Low VSWR RF Coaxial Isolator
-
RFTYT Customized TG3234A 2.0-4.0 GHz SMA Connector RF Coaxial Isolator
Product Details
| Brand Name | RFTYT | Place of Origin | China | |
| Model Number | WG2525X |
Product Description
Product Description
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
10MHz-26.5GHz Power(Max) 2000W Drop in Isolator
| Model | Frequency range | Power (max) | Reflected power | Size (mm) | Connector Type |
|---|---|---|---|---|---|
| WG6466E | 30 - 230MHz | 150W | 10-150W | 64.0*66.0*22.0 | TAB |
| WG6060E | 30-230MHz | 100W | 10-100W | 60.0*60.0*25.5 | TAB |
| WG7070X | 130-200MHz | 500W | 10-250W | 70.0*70.0*15.0 | TAB |
| WG5050X | 160-330MHz | 500W | 10-100W | 50.8*50.8*15.0 | TAB |
| WG4545X | 300-1100MHz | 500W | 10-100W | 45.0*45.0*13.0 | TAB |
| WG3546X | 300-1850MHz | 300W | 100W|30,20dB | 35.0*46.0*11.0 | TAB |
| WG3538X | 300-1850MHz | 300W | 10-100W | 35.0*38.0*11.0 | TAB |
| WG2532X | 350-3600MHz | 250W | 100W|30,20dB | 25.4*31.7*10.0 | TAB |

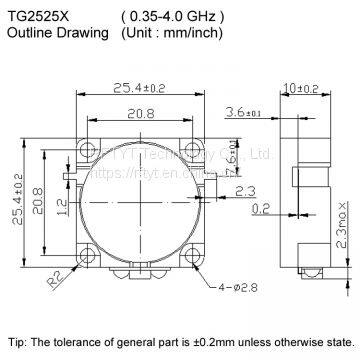

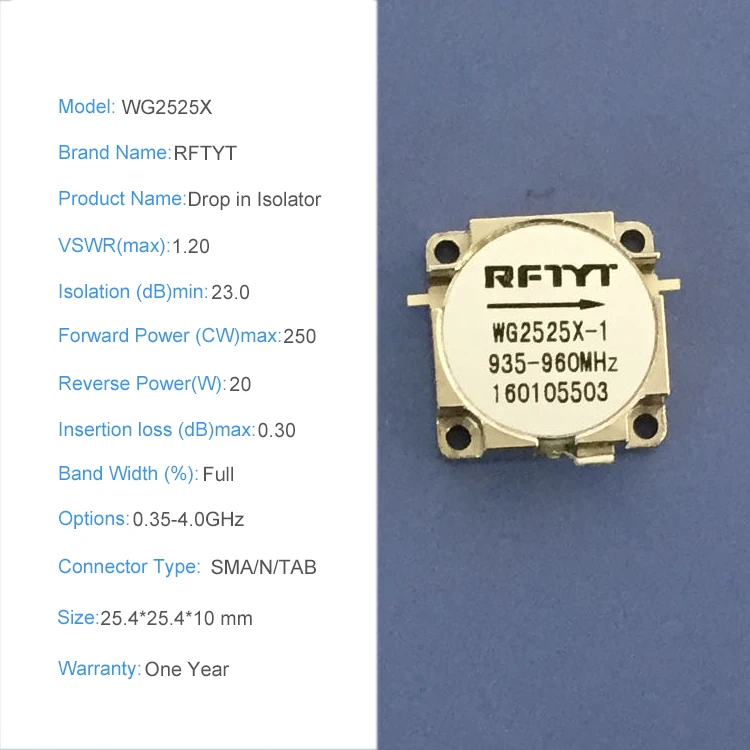

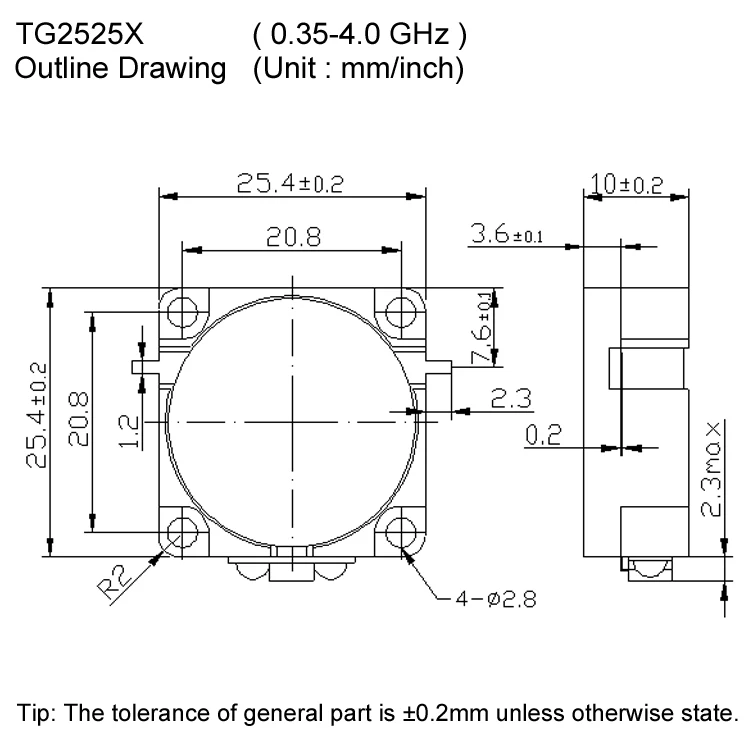

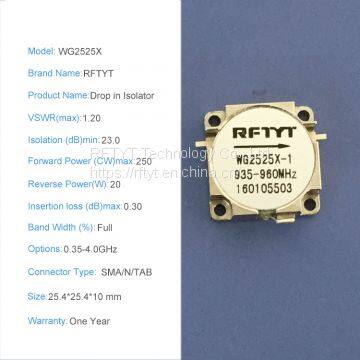

| WG2525X | 350-4000MHz | 250W | 10-100W | 25.4*25.4*10.0 | TAB |
| WG2027X | 600-3600MHz | 150W | 100W|30,20dB | 20.0*27.5*8.6 | TAB |
| WG2020X | 600-4000MHz | 150W | 20W | 20.0*20.0*8.6 | TAB |
| WG1925X | 800-3600MHz | 100W | 100W|30,20dB | 19.0*25.4*8.6 | TAB |
| WG1919X | 800-4000MHz | 60W | 20W | 19.0*19.0*8.6 | TAB |
| WG6466E | 950-2000MHz(full) | 100W | 10-100W | 64.0*66.0*26.0 | TAB |
| WG1313T | 1800-6000MHz | 60W | 10W | 12.7*12.7*7.2 | TAB(Through hole) |
| WG1313M | 1800-6000MHz | 60W | 10W | 12.7*12.7*7.2 | TAB(Screw hole) |
| WG3234A | 2.0-4.0 GHz(full) | 100W | 20W | 32.0*34.0*21.0 | SMA/N/TAB |
| WG1626D | 3.7 -5.0 GHz | 60W | 5W | 16.0*26.0*10.5 | TAB |
| WG1623D | 5.0 - 7.0 GHz | 100W | 5W | 16.0*23.0*9.7 | TAB |
| WG1220D | 5.0 - 7.0 GHz | 50W | 5W | 12.0*20.0*9.5 | TAB |
| WG0915D | 7.0 - 18.0GHz | 30W | 5W | 8.9*15.0*7.8 | TAB |
For more detail specifications, please cgo to the official website.
(WWW.RFTYT.COM)
Forms are specify frequency range and other ranges available
(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
Tip:These informations are needed for your enquiry.
*1.The frequency range that you need. *2.Power capacity (Forward ,Reverse,Peak,etc.). *3.Joint form
4.Your special requirements (Insertion loss.Isolation.VSWR.Temperature.Dimension.etc.)
