Portable Panoramic Borehole Camera Used for Underground Pipe Inspection

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Water Level Meter; Borehole Drilling Equipment&Accessory and Geodetic Surveying Instrument.

Portable Panoramic Borehole Camera Used for Underground Pipe Inspection

Technical Specification
1. Hole type: vertical, slant hole.
2. Depth: 0-2000m.
3. Camera resolution: 850TVL.
4. Pressure: Max. 15Mpa.
5. Probe diameter: φ40-120mm.
6. Cable tensile strength: 250kg.
7. Power supply: AC 220V50Hz (DC12/24V optional)
8. LED display: 8 inch 4:3, 1024*768 pixel.
9. Storage: SD card/U disk, standard 16G SD card, 32G optional.
10. Sensor: Sony 1/3 inch CCD, 0.1 lux.

Application

1. Water well
2. Oil & gas well
3. Ocean engineering
4. Engineering construction
5. Underground pipe inspection
6. Well maintenance and repair
7. Coal borehole inspection
8. Mineral borehole inspection
9. Other application

Function

1. To inspection the water leakage of the well.
2. To imaging the blockage of the well.
3. To help the repair of the well.
4. Provide broadcast quality video of the underwater world, back to the surface from up to within 1000m below.
5. This camera can be viewed in real time or recorded for later viewing.

Feature

1. Super high resolution color picture.
2. Low light operation.
3. Led underwater light.
4. Stainless steel housing.
5. Military grade water tightness cable.
6. Ability to attach up to deep place and stand large pressure of water.

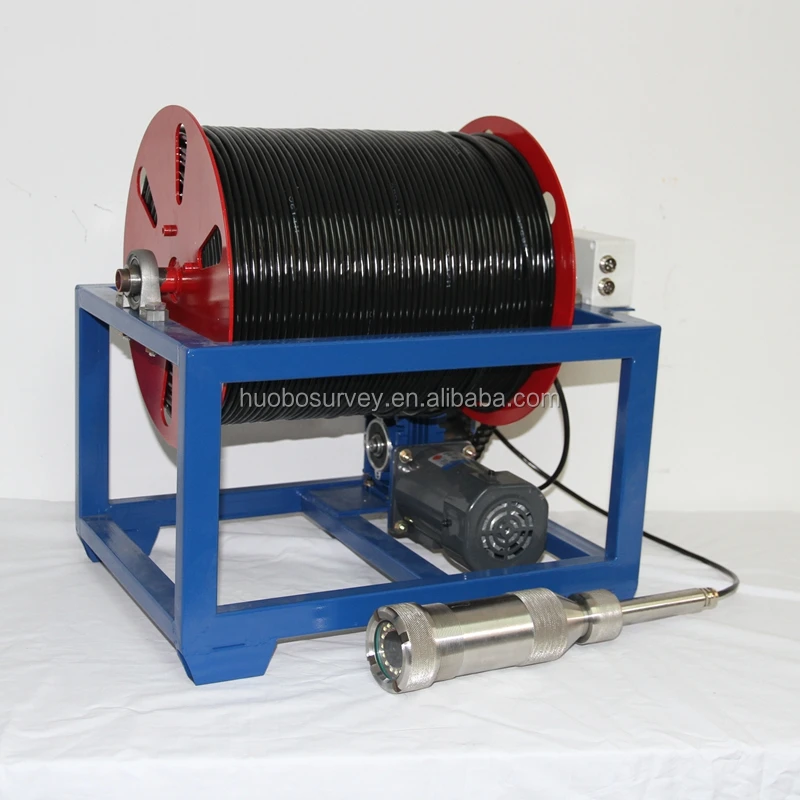

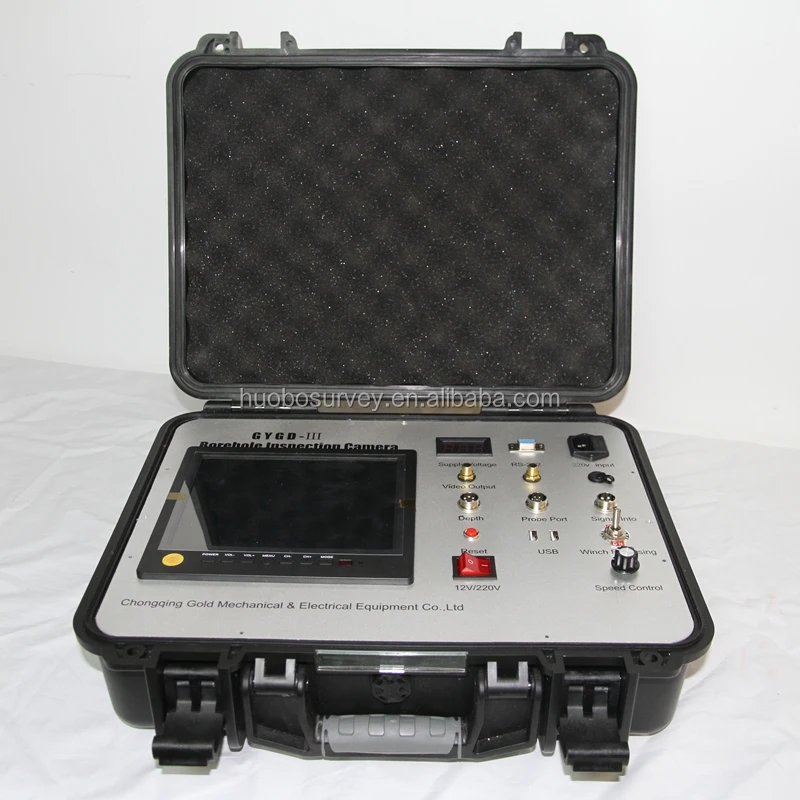

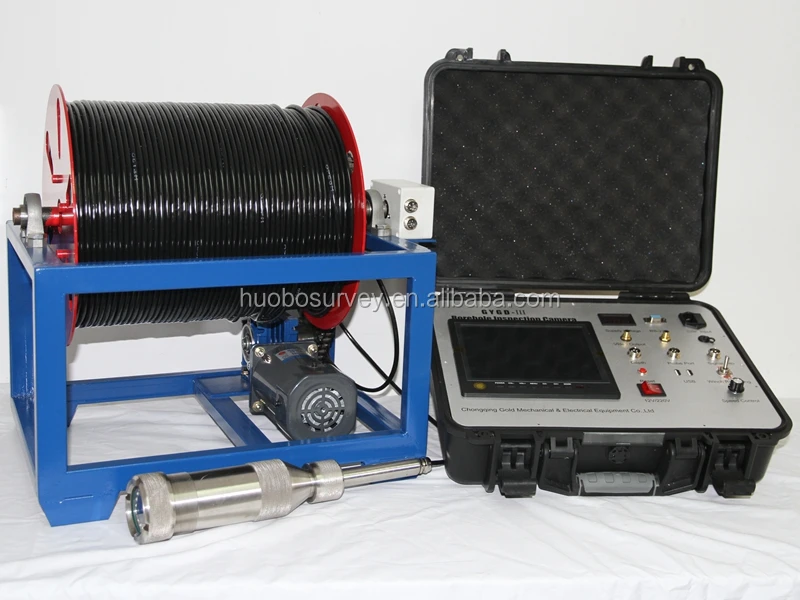

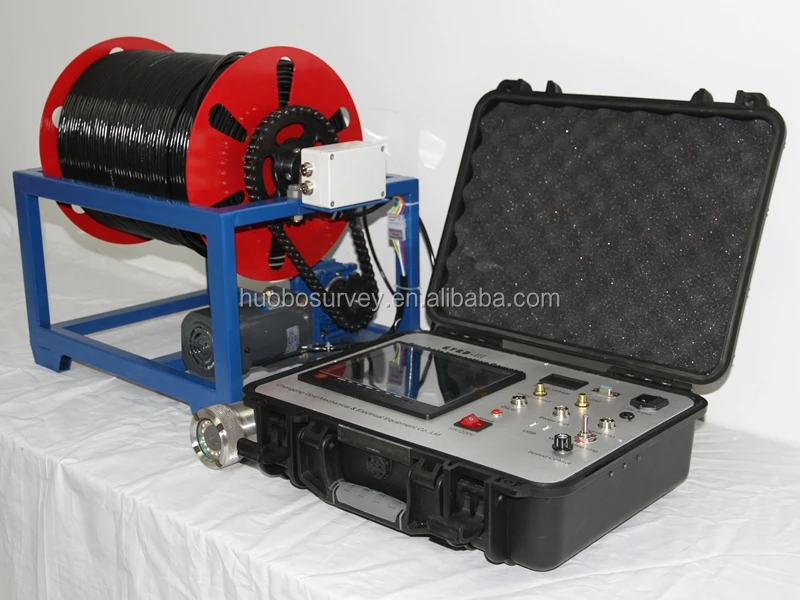

Product Show

Packing

Produst Testing

Exhibition Show

Our Team

Product Series Show

Contact Information

Pls contact me if you are interested

Elaine Wang(Sales Manager)
