Technical Specification

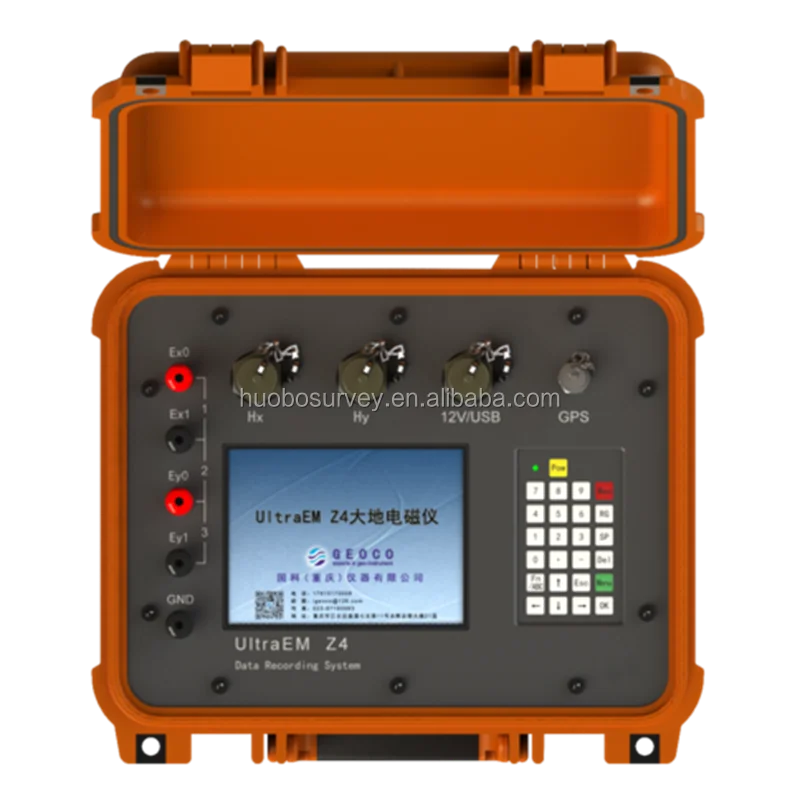

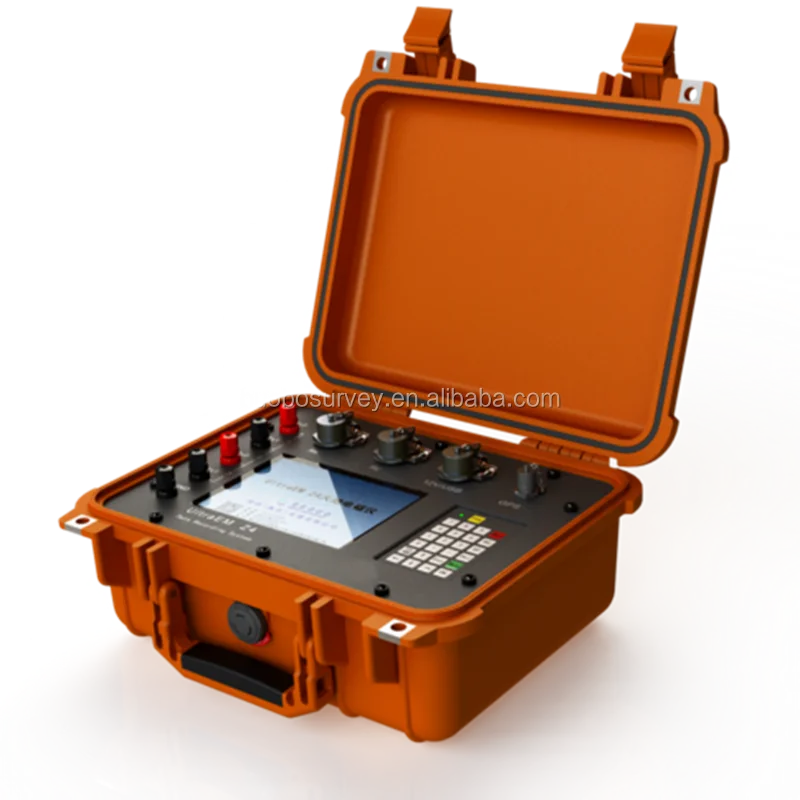

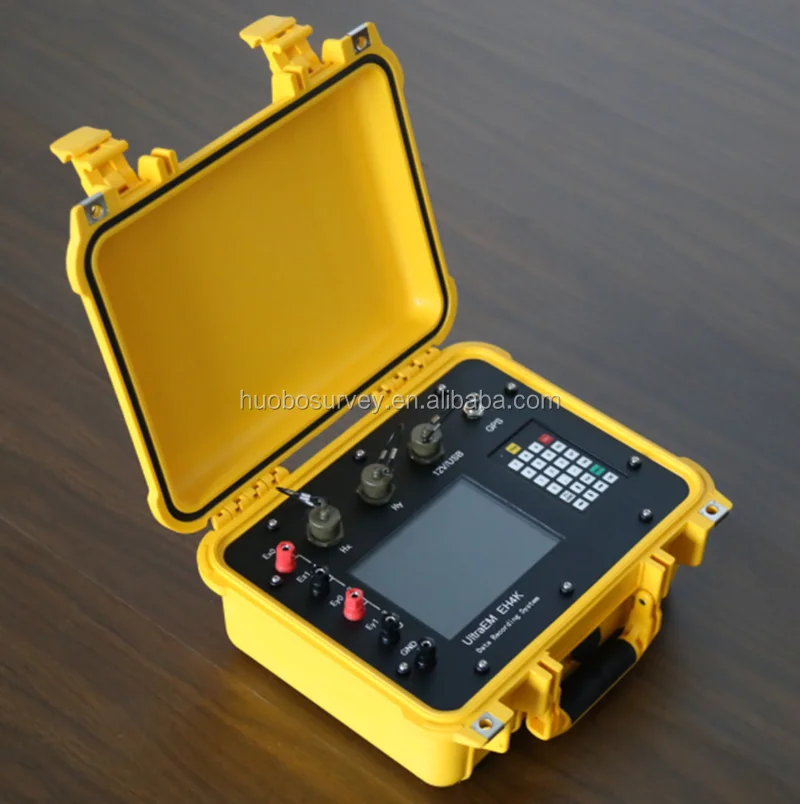

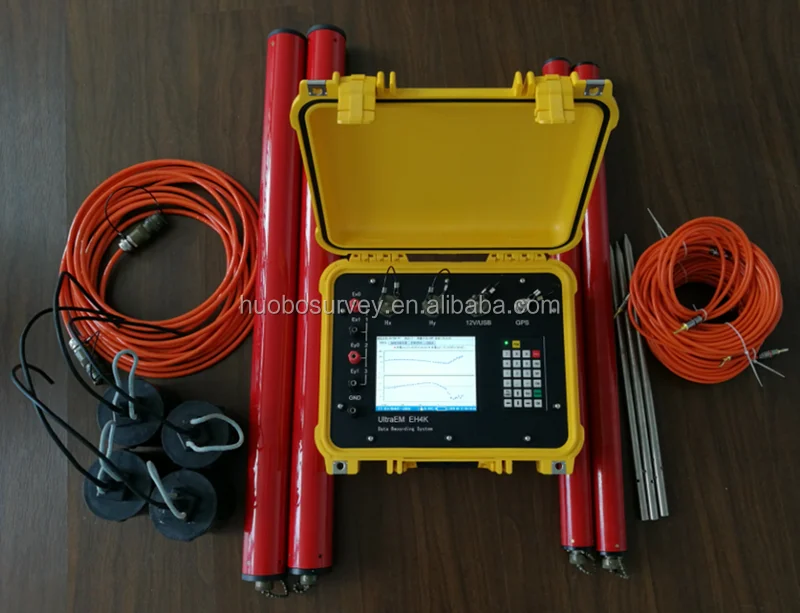

Technical index of electromagnetic receiver Z4
Detection method: artificial source and natural sources, artificial and natural mixed source;
Number of channels: 4 channel (channel 2 Channel 2 electric, magnetic);
AD converter: 32 bit high speed ADC (the maximum sampling rate of 192ksps);
Dynamic range: 160dB system, 130dB@24kHz moment, 0dB;
Bandwidth: DC to 92kHz;
Input range: 10 V PP @ 0dB;
Noise level:<5nV/ V Hz@24kHz, 36 dB;
Input impedance: electric magnetic channel >10MOhm channel >20kOhm;
Gain control: 0dB, 12dB, programmable 24 dB, 36dB;
Synchronization accuracy: + 100ns;
Power consumption:<10W@12VDC;
Size: 26 x 17.3x 10.6 cm;
Weight: 4.0kg;
Waterproof level: IP67.
Test content: instrument gain, dynamic range detection, acquisition box, magnetic sensor sensitivity calibration;
Embedded operating system: Linux;
Display: 6.5 inch industrial LCD;
LCD brightness: 1200cd/m2, visible light;
Storage capacity: 32G;
Data transmission: USB2.0 high-speed transmission;
Battery capacity: 12.6V 13.4Ah, 16 hours of continuous work;
Power interface: external battery or 12V adapter work.

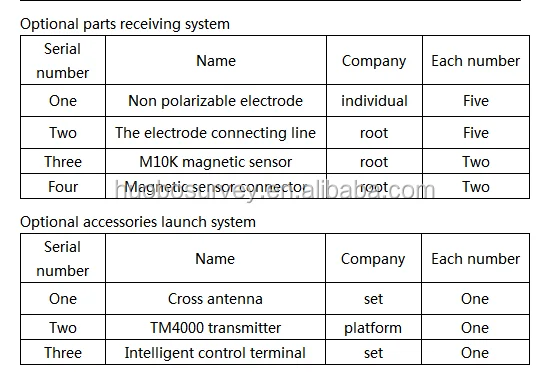

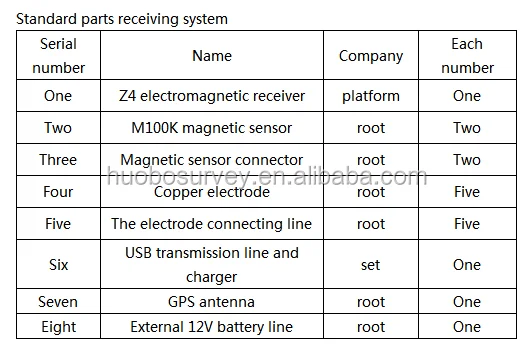

M100K magnetic sensor performance index
Bandwidth: 1Hz to 100kHz;
Noise level: 100fT/ Hz@10Hz<10fT/ Hz@10kHz tick tick;
Power supply: 20mA@ + 12V;
Sensitivity: 150mV/nT;
Size: 4.1 diameter cm*76.2cm;
Weight: 2.1kg.

M10K magnetic sensor performance index

Bandwidth: 0.1Hz to 10kHz;
Noise level: 1pT/ Hz@1Hz<10fT/ Hz@1000Hz tick tick;
Power supply: 20mA@ + 12V;
Sensitivity: 100mV/nT;
Size: 6cm*81cm;
Weight: 3.0kg;

The TM4000 transmitter performance index

Frequency: 1.0-6.0kHz (dead band compensation);
The number of frequency sweep frequency: 27;
Launch moment: 4000A.m2;
Antenna area: 25m2;
Transmit input power: 12-24V;

Size: 25 x 10cm 30x transmitter;
Weight: 5kg;
Waterproof level: IP66.

About Product

Introduction

GD-4 magnetotelluric instrument is based on the mature magnetotelluric theory, the random signal processing technology, embedded real-time operating system technology, large-scale field programmable logic array technology, 32 A/D high precision and high speed recording technology and the latest electronic technology, electromagnetic high frequency earth (HMT), audiomagnetotelluric (AMT) and magnetotelluric (MT or LMT) as one of the wide band magnetotelluric instrument.

Features

1. Wide band magnetotelluric instrument.

it can use the high frequency magnetotelluric sounding (100kHz-10Hz) to carry out a few meters to a kilometer in the shallow depth of the human activity is the most active exploration, also can use audio frequency magnetotelluric sounding (10kHz-0.1Hz) or long period magnetotelluric (1kHz-1000s) to carry out deep research of macro geological problems.

2. The natural source and artificial source mixed mode

Theapplication of magnetotelluric sounding principle, which can be carried out natural source magnetotelluric sounding, can also carry out artificial source electromagnetic sounding, or a mixture of the two acquisition.

3.Tensor and scalar can be observed

Itcan be carried out for fast screening of scalar measurement, can also carry out two or three dimensional geological structure tensor measurement.

4.Efficient multi rate realtime parallel acquisition

192kHz, 24kHz, 2400Hz, 150Hz, 15Hz five high speed sampling rate and parallel acquisition, the acquisition time is shorter, more efficient, complete 1000m (100kHz-5Hz) of the sounding point only 30 seconds, can effectively carry out the continuous EMAP observation; multirate sampling and processing, frequency higher resolution.

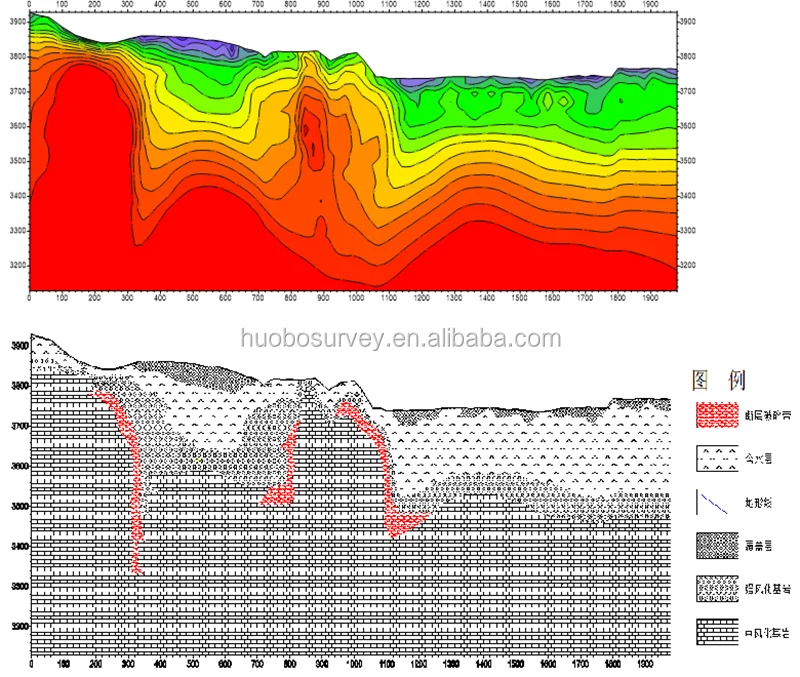

5. Portable real-time imaging

Z4 receiver with lithium battery is only 4kg, easy to move; the embedded real-time operating system, with parallel hardware processor, realize the full band acquisition at the same time, the electromagnetic power spectrum, apparent resistivity, phase correlation, real-time calculation, and can view the scene or scalar tensor of apparent resistivity and apparent phase profile.
