huaxiamaster ZLJ400 Tunnel Drilling Rig For Coal Mine for sale

FOB Price

US$ 1200 - 1300 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	huaxiamaster	Place of Origin	China
Model Number	ZLJ400	Type	Core Drilling Rig
Certification	ISO	Weight	615kg
Dimension(LWH)	12506401265mm	Power Type	Diesel
Usage	Coal	Condition	New
Power(W)	7.5kw

Product Description

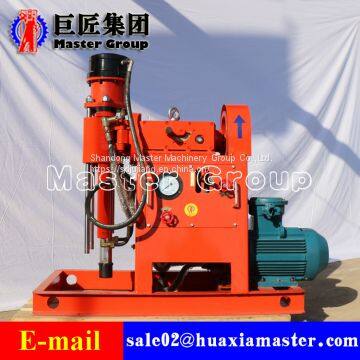

1. The brief introductions of ZLJ400 coal mine drilling rig

ZLJ 400 series coal mine tunnel drilling rig is mainly used for exploring water, exploring coal,drawing out methane, water injection dust control different kinds of engineering hole and geologic hole. The rig can work in various kinds

of angles .

This drill rig adopts mechanical drive, hydraulic feed with small size, light weight, The rig is reliable and convenient to operate.

2. The specifications of ZLJ400 coal mine drilling rig

Drilling diameter	50-Φ113mm
Hole depth	200m
Drill rod caliber	42mm-50mm
Non-coring bit	76-Φ108mm
Core bit	56-Φ89mm
Vertical rated speed	360 /205/115 r/min
Vertical shaft torque rating	130 /230 /400 n.m
Main shaft angle	0-360
Spindle stroke	400mm
System pressure rated	8mpa
Feed force	9kn
Elevating power	12kn
Winch lifting capacity	7.35kn
Drum capacity	26.8m
Wire rope diameter	8.85mm
Oil pump type	YBC-12/125
Motor power	7.5kw
Dimension	12506401265mm
Weight	615kg
