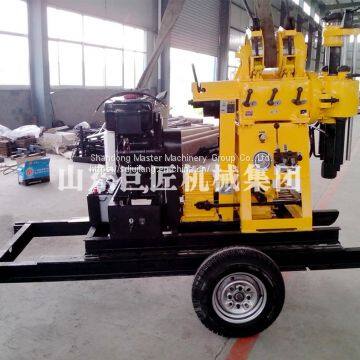

XYX-200 Wheeled Hydraulic Rotary Drilling Rig water well drilling rig machine for sale
USD $1200 - $1300
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A
- 7 days
You May Like
-
XYC-200 Vehicle-mounted Hydraulic Rotary Drilling Rig full hydraulic core drilling rig water well drilling rig machine for sale
-
wholesale manufacturer small mineral exploration water well drilling rig
-
Small portable geological investigation soil and rock sample core drilling rig machine
-
Light weight portable mountain geophysical exploration drill rig
-
huaxiamaster Hydraulic portable drilling rig mountain drilling machine for sale
-
diesel/electric borehole rotary tractor mounted water well drilling rig
Product Details
| Brand Name | huaxiamaster | Place of Origin | China | |
| Model Number | XYX-200 | Type | Core Drilling Rig | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 950kg | Dimension(L*W*H) | 2000*1500*3000 | |
| Power Type | Diesel | Voltage | 220v | |
| Usage | Water Well | Condition | New | |
| Power(W) | 13.2kw |
Product Description
XYD-200 crawler drilling rig | |
Drilling depth | 200m |
Maximum opening diameter | 75-300mm |
Final hole diameter | 75mm |
Kelly | 53/59*4200mm |
Drill pipe diameter | 50/60mm |
Drilling angle | 90°-75° |
Auxiliary power diesel engine | 16.2kw 2200r/min |
Structural weight/Size | 3000kg 3800*1950*2700 |
Spindle | |
Spindle speed | 64/128/287/557r/min |
Spindle stroke | 450mm |
Windlass | |
Single rope lifting force | 24kn |
Single rope lifting speed | 0.12/0.22/0.49/0.95m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Wire rope capacity | 35m |
Derrick | |
Rated load | 5t |
Effective height | 6m |
Tower leg specification | 89mm |
