New Magnetic Card and EMV IC card Reader/Writer for Lo&Hi Co Track 1, 2 & 3 MCR200

FOB Price

US$ 120 - 158 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsPayPal Other
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	postech		Place of Origin	China
Model Number	MCR200

Product Description

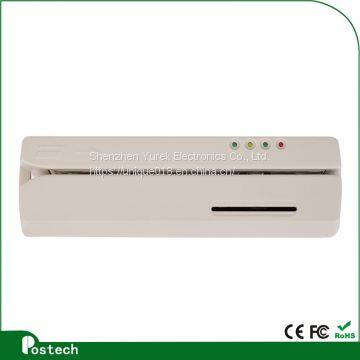

MCR200 Multifunctional Reader (Magnetic card, Smart card reader writer) provides reliable magnetic stripe reading/writing and Smart card reader/writer solution for bank business, retail, security and other related systems, it offer user a card reader/writer solution that will complement many applications.

Features:
? Compact size
? Support PBOC2.0, EMV IC card
? manual swipe to read/write data with a single pass
? Read/ write magnetic stripe card or passbook in both ISO & IBM format
? Read/ write up to triple tracks (track 1&2&3, 300-4000Oe)
? Tri-color LED & beeper for power on/read/write operations
? PIN pad port & two extra serial port expander available
? Well designed software/hardware and imported key components ensure the whole excellent performance
? Module structure technology applied to ensure high efficiency and reliability

Card standards	IBM, ISO, DIN, ANSI
Manual feeding speed	20~120mm/sec
Writing density	1st track 210 BPI (max 76 characters)
	2nd track 75 BPI/210 BPI (max 36/104 characters)
	3rd track 210 BPI (max 104 characters)
Smart card reader module (Main/Sub)	Asynchronous Protocol for kinds of memory,logic cards Synchronous Protocol for various of smart cards
Interface	RS232, 2400/4800/9600 bps at option
Reliability	MTBF > 20000H, MTTR<30 MIN
Lifetime	Magnetic header : Min. 300,000 swipes IC card: min100,000 insertions SAM card : min 5,000 times
Power supply	DC 9V 750mA / 5V 320mA by host computer
Working conditions	0~40° C, 15%~85% RH non-condensing
Dimensions (LW H)	210mm60mm 60mm
Cable length	2m
Weight	1.4Kg
Housing	Plastic PC, Ivory or Black color
