LM Series Sorting Equipment

LM (Linear Vision): Mini split belt conveyor inspection machine US/CE Compliant.
1000 thru 4000: Standard, Non-Telecentric lens, 4 camera limit. Camera quantity (1000 = 1 Camera)

Product Description

Product Type: Ferrous and Non-Ferrous base headed fasteners. Sizes M1 to M4 x 15mm in length.
Production Rate: 600 to1200ppm, based on M2-.4 x 10mm long fastener. Vision Field of
View (FOV): 20mm Horizontal x 20mm Vertical

Inspection Machine Capabilities

Camera 1:
Top down view with adjustable front lighting (20mm FOV), Resolution >.0005″
Perimeter and open burst cracks, open cracks visible at OD, in silhouette view
of part, part standing on head viewed down ? Diameter; min/max/avg ? Ovality/Roundness
of head OD ? Hex(no flange) min/max diameter

Camera 2:

Side view with backlight (20mm x 20mm FOV), Resolution >.0005″
Length ? Head Height ? Shank Length ? Shoulder Diameter, min/max/avg/angle and variance ?
Point (Pilot) attributes. Threads: Major diameter ? Major Variance ? Minor diameter ?
Maximum ? Average ? Thread Match ? % Pattern detection of filled or missing threads

Camera 3 @ 90°:

Side view with backlight (20mm x 20mm FOV), Resolution .0014″Turned Head; Side view
comparison and average of hex head width ? Bolt straightness, features of bolt can
affect reading

4.Flat Part Inspection Systems

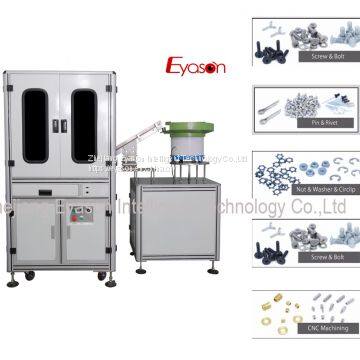

The RY001 is a flat part inspection system (nuts, washers, bushings, rings, etc.).
It’s a high-speed vision based measuring machine that uses a series of front and
back lit cameras to calculate a part’s height, profile and inner/outer diameters.

Microsoft Windows based software makes part setup easy, and allows for part storage
and retrieval. Optional cameras are available to check for internal threads and surface
imperfections. And optional Eddy Current lets you check for metallurgical defects such as
cracks, seams, and missing features (like weld nibs and chamfers) along with plating or
hardness variations.360° Internal Thread Inspection – Gi incorporates hole inspection
optics to specifically image and measure both the bottom of a hole and its vertical walls.
This allows great detail of I.D. threads and the detection of very small defects like;
Chips in threads, weld splatter, a single damaged thread, torn threads, reamed threads,
short or missing thread(s).
? Measures Flat Parts
? Windows Software
? Optional Vision and Eddy Current
? Up to 500 Parts Per Minute
flat parts that can be inspectedVision can be added to detect defects like
missing internal threads, nylon ring presence, and missing crimp.

The RY001 is the perfect machine for flat part manufacturers whose goal is zero.
