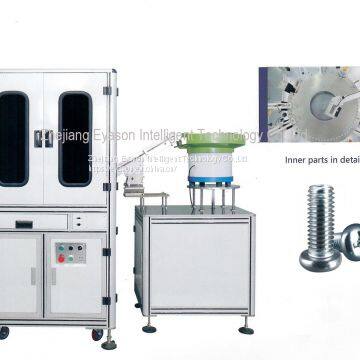

Rotary Disk Sorting Machine

Feature:

For M3~M8 Screws and bolts, under head length less than 80mm

Available for 2~5 cameras

Can install rotating mechanism to inspect recess depth or broken pin

Optional: wheel crack checking system (LS-1501)for head crack inspection

Optional: bottom sorting system(LS-1503)for inspecting cutter presence.

Optional: Bending checking module

Optional: Eddy current system for material mix-up or with/without heat-treatment

Sorting items

? Screw-head height, width ? Recess depth ?  Pinhole Excess Material

? Ineffective thread length ? Minor Thread Diameter ? Feature Angle

? Major Thread Diameter ? Pitch Distance ? Feature No.

? Bevel Thread ? Screw Length ? Feature Similarity

? Cone Point ? Zinc:Yes or No（Head Top View） ? Feature Length

?  Pinhole Alignment  ? Head Crack ? AF/AC

? Head Mark ? Roundness ? Mixed Material

? Inner Roundness ? Inner Concentricity ? Broken pin

? Inner Excess Material ? Shorten AF ? Deformed thread

? Feature-Center Distance

Optional Function:

? Bottom Sorting

? Screw Bending (Multi-Images) ? Head Wheel Crack ? Rotation Recess depth

Specifications:

? Wire Diameter: φ3~8mm ? Head Width: φ5~15mm ? Head Height: 2~10mm

? Length Under Head: 5~80mm ? Sorting Speed: 100~600/PPM ?Sorting Precision: ±1 pixel
