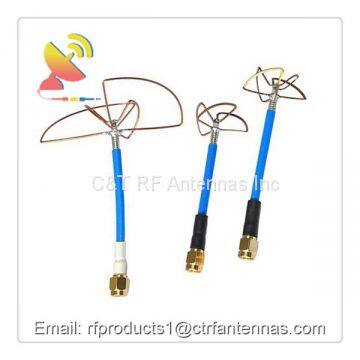

5.8 GHz Circular antenna with Clover Leaf Omni-Directional FPV antenna for UAV Drone RC

5.8 GHz Circular antenna with Clover Leaf Omni-Directional  FPV antenna for UAV Drone RC

An antenna converts electrical power into electromagnetic waves and vice versa. In FPV, antennas (or antennae) enable wireless communication between the video transmitter (VTX) and receiver (VRX). Antennas in your FPV system are critical elements that determine the range and signal quality.

Specifications & Product Features:

- Circularly polarized for reduced interference.
- Runs on 5.8GHz commonly use for FPV systems.
- Clover-leaf style antenna and omnidirectional.
- Greatly increases video and audio signal.
Frequency Range: 5800MHz
Antenna: the 3-blade antenna is for transmitting
Antenna Connector: Bent and an inner bore
Plug Type: RP-SMA plug for the transmitter
Gain: 1dBi
VSWR: <1.5
Material: Metal + Plastic
Color: Blue
Item Size (H x W): 82 x 32mm
Plug Size (Diameter): 7.5mm
Item Weight: 7g

The CloverLeaf omnidirectional antenna is the perfect choice to use RF Explorer in 2.4Ghz and 5.8GHz bands.

CloverLeaf antennas have circular polarization and therefore can detect all direct and bouncing signals, making a way superior choice to detect interference and wanted radiations.

The main difference with other dual band antennas is the perfect coverage in all directions, as opposed to whipping and rubber duck dipoles which are limited to vertically polarized signals.

It comes with standard SMA connector and robust ABS coverage to protect internal Cloverleaf multi-petal design from damage.
