MMCX to U.FL connector antenna extender RF coaxial cable assembly with RG 137 cable 300mm
- 100000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Antenna extender RF coaxial cable assembly with RG 1.13 cable 100mm RP SMA to U.FL antenna adapter
-
Antenna extender RF coaxial cable assembly RP SMA two holes to MMCX connector antenna adapter
-
Antenna extension pigtails U.FL to opening end rf coaxial cable assembly rg 1.32 cable antenna
-
RF Antenna extension pigtails RP SMA to U.FL rf coaxial cable assemblies rg 1.32 cable antenna
-
RF cable Antenna extension semi-steel cable antenna RF coaxial cable assemblies
-
RP SMA Female right angle to U.FL rf coaxial cable assemblies RF Antenna extension pigtails
Product Details
| Brand Name | C&T | Place of Origin | China | |
| Model Number | C&T-Coax-UFL-200 |
Product Description

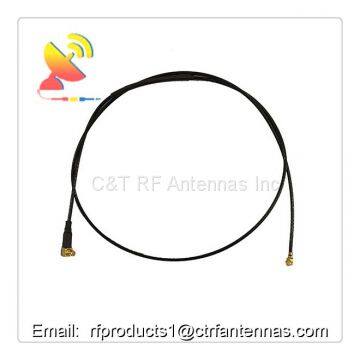

MMCX to U.FL connector antenna extender RF coaxial cable assembly with RG 137 cable 300mm
This RF coaxial cable assembly is directory supplied by C&T RF Antennas Inc.
Specifications：
Electrical | |
Frequency Range | DC to 6GHz |
Connector 1 | Standard MMCX Straight |
Connector 2 | Standard U.FL Male Right Angle |
Plating | Goldplated |
RF Cable Type | RF137 |
Cable length | 300mm(According to customer customize) |
Impedance | 50ohms |
VSWR | 1.5:1 |
Rated Voltage | AC 60V |
Contact Resistance | 20m ohm max-signal and ground |
Withstand Voltage | AC 200V |
Insulation Resistance | 500M ohm minimum/DC 100V |
RoHs | YES |
Temperature | -40℃ to +85℃ |
C&T RF Antennas Inc offers a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths. Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. Custom assemblies are also available.
For further information, please feel free to contact us.
Our service:
●7 years experience The C&T RF Antennas Inc. mainly manufactures outdoor antenna, indoor antenna, marine antenna, base station antenna and tv antenna products.
● Our sales will reply to your inquiry in 24 working hours.
● Customized design is available, OEM is welcomed.
● Excellent after-sales service.
Tag: RF coaxial cable assemblies, coax cable assemblies, u.fl coaxial cable assembly,
