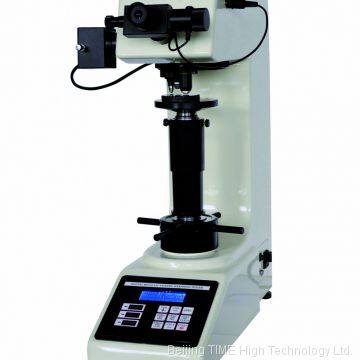

Digital Vickers Hardness Tester TH723/724
- 100 Unit / Units per Month
You May Like
Product Details
| Brand Name | TIME | Place of Origin | China | |
| Model Number | TH723/724 |
Product Description
Features
● New high-tech product with mechanical and photoelectrical technologies.
● Equipped with a digital microscope, direct display of the measuring method, test force, indentation length, hardness value, dwell time of test force.
● Especially suitable for testing the hardness of micro and thin specimen, fragile material.
● Closed-loop control system :CPU control test force to load, dwell and unload, with high accurate pressure transducer sense feedback, the loss of test force automatically compensated.
Standard Delivery | Optional Accessory | |
Screw drivers | 2 | CCD measuring device |
Horizontal regulating screws | 4 | |
Level | 1 | |
Power cable | 1 | |
Cross testing table | 1 | |
10× digital micro lens | 1 | |
Vickers hardness blocks | 2 | |
Repair fuses (1A) | 2 | |
TIME certificate | 1 | |
Warranty card | 1 | |
Instruction manual | 1 |
Technical Specification
Type | TH723 | TH724 | |
Testing Force | N | 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03 | 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07 |
KGF | 0.3, 0.5, 1, 2, 2.5, 3, 5 | 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 | |
Carriage Control | Loading/ dwell/ uploading (automatic) | ||
Amplification of the Microscope | 200x, 400x | 100x, 400x | |
Dwell Time | (0-60)s | ||
Min. Graduation Value of the Testing Drum Wheel | 0.125μm 0.0625μm | 0.25μm 0.0625μm | |
Testing Field | 1HV-2967HV | ||
Lens/Indenter switch | with Hand Turret | ||
Max. height of the specimen (mm) | 180 | ||
Max. width of the specimen (mm) | 130 | ||
Light Source | Cold light source | ||
Power Supply | 110V/220V, 60/50Hz | ||
Dimensions (mm) | 530x225x630 | ||
