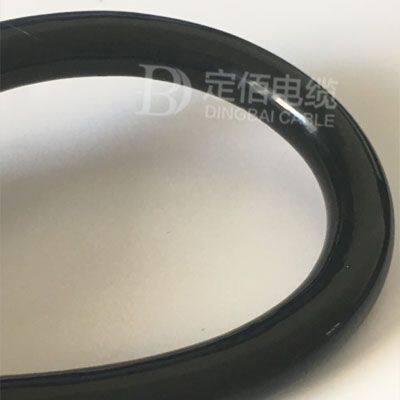

Water Resistance 0.12mm2-16mm2 Rov Cable Ship

Parameters:

Voltage: 0.6/1kv

Test voltage: 3500V/5min (AC)

Minimum bending radius:

Fixed laying 5x cable outer diameter

Mobile installation 7.5x cable outer diameter

Temperature range:

Fixation temperature:-20℃-70℃

Moving temperature:-15℃-70℃

Oil resistance: ordinary

Weather resistance: UV resistant , suitable for indoor

Flame retardancy: IEC60332-1

Maximum moving speed:

Overhead speed: 3m/s

Sliding speed: 2m/s

Acceleration: 20m/s2

Application:

This cable is specially designed for applications requiring high bending and continuous movement, is widely used for towing system, robot and mobile drive system. The advantages of the outer sheath material, such as wear resistance, hydrolysis resistance, antibacterial and flame retardancy, make the cable play the most advantage in the towing system.

Product Structure:

1, Twisted shield data cable

2, Conductor:VDE02956

3, Insulation layer: special low viscosity PVC mixture

4, Special tensile core

5, Inner sheath: high elastic PVC mixture

6, Yellow green ground wire

7,Tin plated copper braided shield:optical coverage 90%

8, Outer sheath:special low viscosity wear-resistant PVC mixture

(Special specifications \ color and more complex applications can be customized according to the requirements)

Features:

1. Long service life and high performance. Wearable and stable PVC material, suitable for indoor applications.

2.Wear resistance and bending resistance. The special tensile strengthening layer has greatly improved the service life and tensile property of the product.

3. Using twisted pair process to avoid the internal channeling sound and signal interference.

4. The inner sheath makes the core structure more compact, which greatly avoids the phenomenon of core channeling and increases the service life.

5. Shielding layer uses tin plated copper wire to reduce oxidation phenomenon, and the coverage rate is very close to 90%, so as to reduce the interference in the use process.
