Od 3mm Gb / T3956 Energy Release Rov Tether Cable

Why choose us?

Our factory add for you check: ensure lowest price and good quality and best service for you, we service 7*24 hours online, happy meet in our factory.

Good factory supplier save you time and money and help you win the market, contact us : dbaimr_chen@163.com

Description:
The cable is mainly used for electrical connection between devices and requires work in an underwater environment. According to the signal transmission requirements, the signal control line can be multi-stranded single-core, multi-core, many pairs of different combinations of the core composition; according to the isolation requirements, shielding forms can be individually single shield, separate 2 layer shield, single Layer total shielding, 2 layers of the total shielding, etc .; according to the use requirements, can be vertical underwater robot cable form, horizontal seal form.
Vertical underwater cable: for the ship to wear a warehouse connection, high reliability of the use of the environment. Requires the cable end (axial) to withstand water pressure, in the eng_provisions of the test pressure and time, not allowed to water seepage.
Horizontal underwater cable: non-wear underwater use of the environment. Requirements cable jacket (radial) to water pressure, in the eng_provisions of the test pressure and time, the cable insulation resistance does not decline, the cable is not deformed.

Cable Hydraulic Rating:

Parameter：

Rated voltage: U0 / U<0.5mm2
                                   ≥ 0.5mm2
Test voltage: U 3000V according to DIN VDE 0281
Temperature range: ℃ Mobile installation: -45 ℃ ~ +105 ℃
                                     Fixed installation: -45 ℃ ~ +105 ℃

Company Advantages：

Shanghai Dingbai cable manufacturers imported PUR as a new type of underwater robot cable materials, easy to use, environmental protection. Flexible, wear resistant, oil resistant, acid and alkali resistant, tensile and anti-aging. As the connection line of various submersible motor, it is widely used to connect the submersible pump and all kinds of underwater electric appliances from underwater to water.

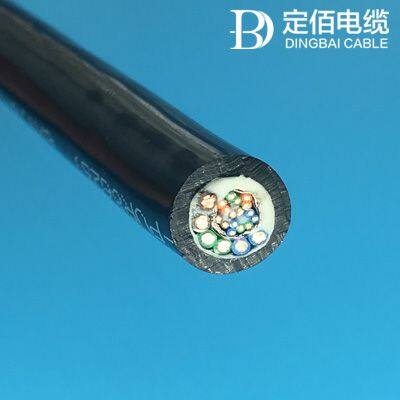

Cable Structure

Conductor: multi strand fine twisted superfine oxygen-free copper wire insulation: special mixed PVC insulation

Color: less than 0.5mm2 color logo, brown, black, blue, purple, pink, orange > 0.5mm2 black digital white number number, 3 core with yellow green line inner sheath: optional

Shielding: tin plated copper net woven shielding, density more than 85%

Sheath: Imported PUR material, the color can be chosen.

Features:

1) high flexibility-----multi strand fine twisted oxygen-free copper wire is used as conductor to ensure the softness of the wire.

2) bending resistance-----optimized cable spacing, special structure design and careful material selection, which is suitable for continuous core of high frequency bending.

3) easy to use-----core line insulation color, sheath color and cable length can be customized according to customer requirements.

4) anti electronic jamming-----The overall tin plated copper wire braided shielding density is more than 85%, which effectively resists the external high-frequency electromagnetic interference.

5) Highly tensile-----flexible package material, the non-woven fabric wrapped body and the anti wire filling, can effectively buffer the cable when it moves back and forth.

6) wear resistant, oil resistant and anti aging-----special flexible sheathing material (color can be selected by customers), bending life is more than 6 million times.

7) water proof, acid and alkali resistance, radiation protection and corrosion resistance-----Newly imported environment-friendly PUR  material sheathed.
