PE Material Heat Shrinkable Tubing Cable Wire Insulation Sleeve
- shanghai or ningbo
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
Product Details
| Brand Name | LDDQ | Place of Origin | China | |
| Model Number | DRS-1 | Material | PE | |
| Type | Insulation Sleeving | Application | Low Voltage | |
| Rated Voltage | 600-1000v | Tensile Strength | ≥10.4MPa |
Product Description
Name: Low voltage flame retardant heat shrink tube
Specification: Radial shrinkage ratio ≥50%
Longitudinal shrinking ratio≤5%
Work Temperature: Suit temperature: -55℃～125℃
The lowest shrink temperature: 70°C
Complete shrink temperature:110°C
General complete shrink temperature: 120°C
Work Voltage: less than 1KV

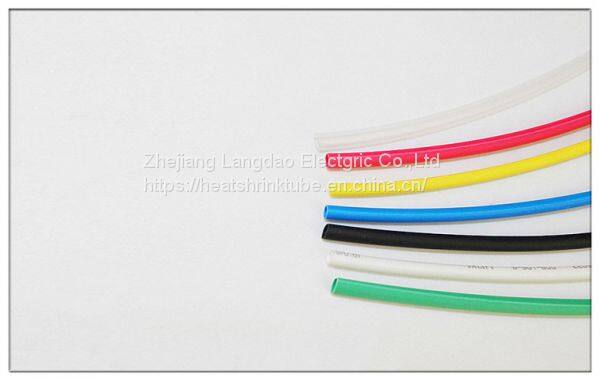

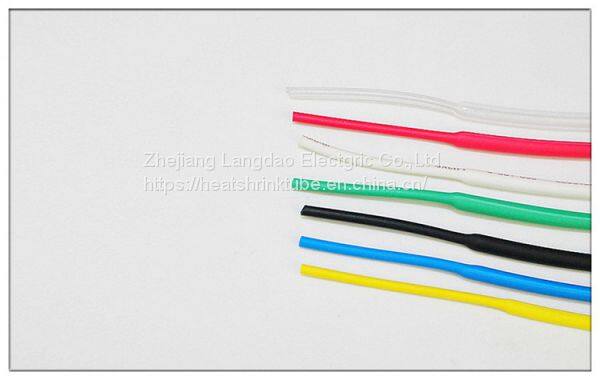

Color: red, green, yellow, blue, black, white, transparent
Characteristic; good insulation, soft and elastic, low shrink temperature, and fast shrink, convenient to use, heating by the alcohol lamp or heat gun.
Specification: Φ1.0mm-Φ200mm
Type | Inner diameter before shrinking | Inner diameter after shrinking | wall thickness before shrinking | wall thickness after shrinking | Available Range | Packing Length |
(mm) | (mm) | (mm） | (mm) | (mm) | (m/roll) | |
1.0/0.5 | ≥1.3 | ≤0.05 | 0.18±0.02 | 0.36±0.02 | 0.5--0.9 | 200 |
1.5/0.75 | ≥1.8 | ≤0.75 | 0.18±0.02 | 0.36±0.02 | 0.75--1.4 | 200 |
2.0/1.0 | ≥2.3 | ≤1.0 | 0.2±0.02 | 0.4±0.02 | 1.0--1.8 | 200 |
2.5/1.25 | ≥2.8 | ≤1.2 | 0.2±0.02 | 0.4±0.02 | 1.25--2.3 | 200 |
3.0/1.5 | ≥3.3 | ≤1.5 | 0.22±0.02 | 0.44±0.02 | 1.5--2.7 | 200 |
3.5/1.75 | ≥3.8 | ≤1.75 | 0.22±0.02 | 0.44±0.02 | 1.5--2.7 | 200 |
4.0/2.0 | ≥4.3 | ≤2.0 | 0.25±0.02 | 0.5±0.02 | 2.0--3.6 | 200 |
5.0/2.5 | ≥5.3 | ≤2.5 | 0.25±0.02 | 0.5±0.02 | 2.5--4.5 | 100 |
6.0/3.0 | ≥6.3 | ≤3.0 | 0.25±0.02 | 0.5±0.02 | 3.0--5.4 | 100 |
7.0/3.5 | ≥7.5 | ≤3.5 | 0.3±0.05 | 0.6±0.05 | 3.5--6.3 | 100 |
8.0/4.0 | ≥8.5 | ≤4.0 | 0.3±0.05 | 0.6±0.05 | 4.0--7.2 | 100 |
9.0/4.5 | ≥9.5 | ≤4.5 | 0.3±0.05 | 0.6±0.05 | 4.5--8 | 100 |
10/5.0 | ≥10.5 | ≤5.0 | 0.35±0.05 | 0.7±0.05 | 5.0--9 | 100 |
12/6.0 | ≥12.5 | ≤6.0 | 0.35±0.05 | 0.7±0.05 | 6.0--10 | 100 |
14/7.0 | ≥14.5 | ≤7.0 | 0.35±0.05 | 0.7±0.05 | 7.0--13 | 100 |
16/8.0 | ≥17 | ≤8.0 | 0.4±0.05 | 0.8±0.05 | 8.0--15 | 100 |
18/9.0 | ≥19 | ≤9.0 | 0.4±0.05 | 0.8±0.05 | 9.0--17 | 50 |
20/10 | ≥21 | ≤10 | 0.4±0.05 | 0.8±0.05 | 10--19 | 50 |
22/21 | ≥23 | ≤11 | 0.4±0.05 | 0.8±0.05 | 11--21 | 50 |
25/12.5 | ≥26 | ≤12.5 | 0.4±0.05 | 0.8±0.05 | 12.5--24 | 50 |
28/14 | ≥29 | ≤14 | 0.4±0.05 | 0.8±0.05 | 14--27 | 25 |
30/15 | ≥31 | ≤15 | 0.45±0.05 | 0.9±0.05 | 15--29 | 25 |
35/17.5 | ≥36 | ≤17.5 | 0.45±0.05 | 0.9±0.05 | 17.5--34 | 25 |
40/20 | ≥41 | ≤20 | 0.5±0.05 | 1.0±0.05 | 20--39 | 25 |
50/25 | ≥51 | ≤25 | 0.5±0.05 | 1.0±0.05 | 25--49 | 25 |
60/30 | ≥61 | ≤30 | 0.5±0.05 | 1.0±0.05 | 30--59 | 25 |
70/35 | ≥71 | ≤35 | 0.5±0.05 | 1.0±0.05 | 35--69 | 25 |
80/40 | ≥81 | ≤40 | 0.55±0.05 | 1.1±0.05 | 40--79 | 25 |
90/45 | ≥91 | ≤45 | 0.55±0.05 | 1.1±0.05 | 45--89 | 25 |
100/50 | ≥101 | ≤50 | 0.6±0.05 | 1.2±0.05 | 50--99 | 25 |
120/60 | ≥121 | ≤60 | 0.6±0.05 | 1.2±0.05 | 60-119 | 25 |
150/75 | ≥151 | ≤75 | 0.65±0.05 | 1.3±0.05 | 75--149 | 25 |
180/90 | ≥181 | ≤90 | 0.65±0.05 | 1.3±0.05 | 90--179 | 25 |
200/100 | ≥201 | ≤100 | 0.65±0.05 | 1.3±0.05 | 100--199 | 25 |

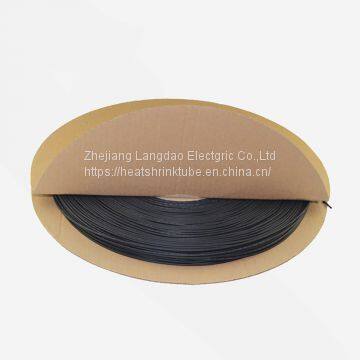

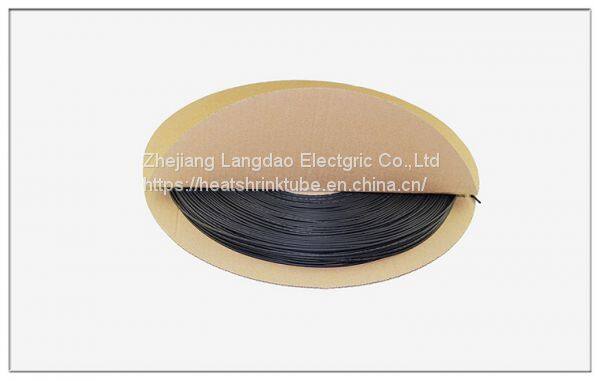

Product Display
We can offer free samples, if you pay for shipping fees.
We can change the lable according your design.
Best after-sales service. We provide detail packing photos and good communication during whole production.
A: We are factory.
A: The shippment will be arranged within 1 week for the stock products,or others will be arranged in 15- 20day after the payment confirmed according to the order QTY.
A: Yes, the sample is free, would you mind bear the freight cost?
A: Payment
Contact :
Email: killy@cnlddq.com/lddq@cnlddq.com
Tel: 86 180 8661 1078
Wechat: 86 180 8661 1078
Skype: ljj0926
