Home > Products > Ultrasonic Sensor > HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module

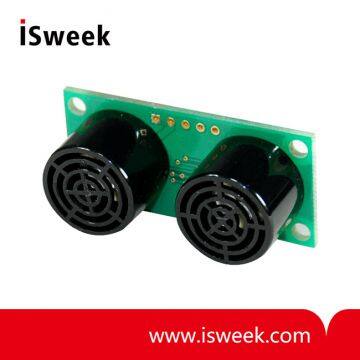

HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module
Negotiable
/ Piece
1 Piece(Min. Order)
- HK
- T/T PayPal
- 7 days
You May Like
-
HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories
-
HG-P40WP Ultrasonic Proximity Sensor Module for Water Proof Types of Ultrasonic Sensors
-
HG-P40C Ultrasonic Proximity Sensor & Module (Conventional)
-
PbSe 4 Channel Infrared Detector
-
VST-C598IH AC/ DC Operated Carbon Monoxide Alarm (CO Alarm)
-
GM220 Film/Coating Thickness Gauge
Product Details
| Brand Name | Hagisonic | Place of Origin | South Korea | |
| Model Number | HG-B40A/HG-B40C | Theory | Ultrasonic Sensor |
Product Description
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Features
? Low-power, high-sensitivity module.
? Choose from a wide variety of input/output Mode.
? Auto sensitivity control function as a distance proportional to the distance error captain.
? The same standards as existing foreign products and mutually replaceable.
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Specification
| Frequency (KHz) | 40±2 | |
| Transmit Mode | Free Run | No Connection |
| External Trigger | TTL Pulse (100~700 ?) | |
| Repetition Rate (10~30 time / sec) | ||
| Receiver Output Signal | Analog | ±2 V max at 2.5 V Base Line |
| Real Time Pulse | 4~5 V TTL, All the objects detected | |
| Distance Pulse | 4~5 V TTL Only the nearest Object | |
| Input DC & Detecting Range (at in front angle flat plate) | Low Voltage Type (5 V dc) | 0~3 m (Conventional, HG-B40C) |
| High Voltage Type (12 V dc) | 0~6 m (Conventional, HG-B40C) 0~3 m (Anistropic, HG-B40A) | |
