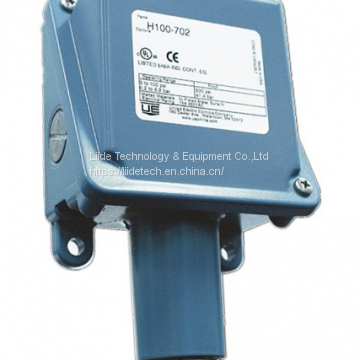

UE 100 Series Pressure Switch

UE 100 Series Pressure  SWITCH

The 100 Series is a cost-effective pressure and temperature switch

for process plants and OEM equipment. The rugged, one piece

enclosure features a slanted cover for wiring accessibility.

A wide variety of microswitch and process-connection options

make this versatile series ideal for applications requiring a rugged

weather-proof mechanical switch.

Typical applications that utilize the 100 Series are heat tracing,

freeze protection, processing equipment (pumps, compressors),

inputs for annunciator panels, and fire suppression systems.

features

? Single Switch Output

? Epoxy Coated and Gasketed Cast Aluminum

Enclosure Type 4X

? Tamper-Resistant Set Point “Lock”

? Heat Trace and Freeze Protection Thermostats

? Proof Pressures to 10,000 psi (689,5 bar)

? Adjustable Ranges:

Pressure:

30 “Hg Vac to 5000 psi

(-1 to 344,7 bar)

“wc Ranges:

300 “wc Vacuum to 250 “wc Pressure

(-746,7 to 622,3 mbar)

Differential Pressure:

0.2 “wcd to 500 psid

(0,5 mbar to 34,5 bar)

T emperature:

-180 to 650°F

(-117.8 to 343.3°C)

UL listed and cUL certified.

? CE compliant to low voltage

directive and pressure

equipment directive.

? Optional ATEX or GOST intrinsic

safety compliance

? Single switch (SPDT or DPDT)

output

? Welded stainless steel

diaphragm models

? Ultra low pressure, “wc models

? Optional sensor material for

corrosive media

? Polished stainless steel flushmount

connection

? Pump switch models with wide

adjustable dead band

specifications

Storage temperature -65 to 160°F (-54 to 71°C)

Ambient TEMPERATURE -40 to 160°F (-40 to 71°C); models 520-525, 540-548, 700-706, 15731-15736: 0 to

limits 160°F (-18 to 71°C); Set point typically shifts less than 1% of range for a 50°F (28°C)

ambient temperature change

Set point repeatability Temperature models: ± 1% of adjustable range

Pressure models 15623, 15731-15737, 171-174, 218, 270-376, 520-535, 540-543, 700-

706, 560-564: ± 1% of adjustable range; models 190-194, 183-189, 483-494, 544-548,

565-567, 610-680, 15884: ±1.5% of adjustable range

Internal set point lock on all pressure models

Shock Set point repeats after 15 G, 10 millisecond duration

Vibration Set point repeats after 2.5 G, 5-500 Hz

Enclosure Die cast aluminum, epoxy powder coated, gasketed, captive cover screws

Enclosure classification Enclosure type 4X

Switch output One SPDT snap action switch; switch may be wired “normally open” or “normally closed”

Electrical rating 15A 125/250/480 VAC resistive except for H100-15623, 15731-15737, 15884, 20A

125/250/480 VAC resistive, B100-13546 and E100-13545, 22A/480 VAC. Electrical

switches have limited DC capabilities at 24-30 VDC, 2A resistive and 1A inductive. 125

VDC, 0.5A resistive, 0.03A inductive. Consult factory for additional information.

Weight 2-7 lbs; Varies with model

Electrical connection 1/2” NPT (female); Two 7/8” diameter knockouts

Pressure connection Models 15623, 218, 270-376, 610-680, 701-706, 15731-15884: 1/4” NPT

(female); Models 171-194, 483-494, 520-535, 15737: 1/2” NPT (female); Models 540-

548: 1/8” NPT (female); Models 560-564: 2” Sanitary Fitting; Models 565-567: 1.5”

Sanitary Fitting (Sanitary fittings mate with Tri-ClampR fitting systems)

Temperature assembly Bulb and capillary: 6 feet 304 stainless steel except for E100-13545, 10 feet 304

stainless steel

Immersion stem: nickel-plated brass (standard) except for B100-13546 stainless steel;

optional 316L stainless steel

Fill Models 1BS/BC are solvent filled, models 2-8 non-toxic oil filled

Temperature deadband Type F typically 1% and type B, C, and E typically 2% of range under laboratory

conditions (70°F ambient circulating bath at rate of 1/2°F per minute change)

Heat tracing or Thermostats designed specifically for heat tracing and freeze protection ambient sensing

Freeze protection applications are available with types B100 and E100.
