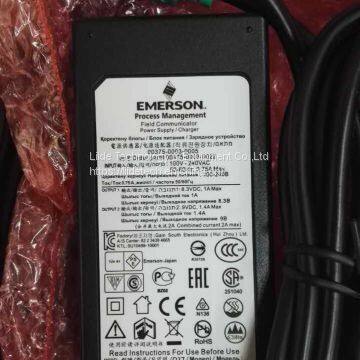

Emerson 475 Field communicator Power Supply/Charger 00475-0003-0022

Emerson 475 Field communciator Spare Part Power Supply/Charger (Li-Ion/NiMH) US/UK/EU connection types

part no.: 00475-0003-0022

Make: Emerson

Origin: China.

Used for Emerson 475 field communicator

Weight:0.7kg.

SUPPLY/CHARGER SPECIFICATIONS

Connection Green six-pin mini din (male) plug

Voltage 100-240 VAC, 50/60Hz, US/UK/EU connection types included

Technical data

Input voltage 100 - 240 VAC ±10%

Input current 750 mA max.

Standby current 20 mA max.

Input fuse type TES 2A 250 V Timelag

Output voltage 1 0 - 8.3 V

Output current 1 1000 mA max.

Output voltage 2 0 - 9.0 V

Output current 2 1400 mA max.

Output power rating 20 W

Operating temperature 0°C - +40°C

Storage temperature -20°C -+80°C

Measurements [L x B x H] 112 mm x 51.5 mm x 29.5 mm

Total Mass 240 g.

Altitude Up to 2000m

Pollution Degree 2

Installation Category 2

IEC Protection Class Double Insulation.

Power supply/charger lights

Three lights are on the power supply/charger to indicate the conditions

below. Each light displays a different color。

Color :

Green:          The battery is fully charged.

Flashing green:  The battery is nearly fully charged.

Yellow:          The battery is charging.

Flashing yellow: The power supply/charger is not connected to the 475 Field Communicator.

Flashing yellow and red:  The remaining charge in the battery is very low.

Red:       Charging cannot occur. Contact Technical Support for more information.

To charge the battery:

1.Plug the power supply/charger into a power outlet.

2.Plug the green power supply/charger connector into the green

connector on the battery. The flat side of the power supply/charger

connector should face the front of the 475 or the inside of the battery,

if the battery is not attached to the 475. The battery is fully charged

when the light on the power supply/charger is green.
