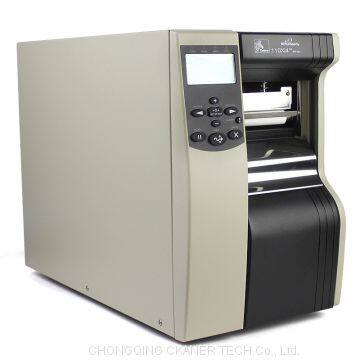

Zebra 110xi4 Industrial Barcode Label Printer Thermal Printer

Zebra 110xi4 Industrial Barcode Label Printer Thermal Printer

Specification :

Industry
Government
Manufacturing
Consumer Goods
Transportation & Logistics

Used For:
?    Asset Management
?    Cross Docking
?    Inventory Management
?    Receiving/Shipping
?    Work-in-Process Tracking
?    Compliance Labeling
?    Order Labeling
?    Quality Control

Standard Features
?    Print methods: Thermal transfer or direct thermal
?    Construction: 12-gauge steel frame
?    Single 32 bit 133 Mhz RISC processor

More Standard Features
?    16 MB SD RAM; 8 MB non-volatile Flash memory
?    Automatic media/ribbon sensing capability
?    Improved head test for element out
?    Auto calibration
?    Clear media side door for ease of supplies monitoring
?    300 unique darkness settings
?    RS-232, Parallel ports
?    USB 2.0 port
?    Internal ZebraNet 10/100 PrintServer
?    ZPL or ZPL II Programming Language
?    XML enabled printing
?    Mirror feature allows user-defined printer configurations to be retrieved from the network
?    Create and design customizable printer LCD menus
?    Large (240W x 128H pixel), graphical, multilingual, backlit LCD display
?    Transmissive and reflective media sensors
?    Multi-level Element Energy Equalizer (E3) for superior print quality
?    Unicode? - Compliant
?    Intelligent printhead

Printer Specifications
Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory
?    16 MB SDRAM
?    8 MB Flash
Print width: 4.0" (102mm)
Print length: 150" (3810 mm) maximum with 110Xi4 203 dpi using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive

Media Characteristics
Maximum label and liner width: 4.5" (114mm)
Minimum label and liner width: .79" (20mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150"
(3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold

Ribbon Characteristics
Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: .79" (20mm) to 4.33" (110mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)

Operating Characteristics
Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals
?    BSMI
?    cTUVus
?    CCC
?    CE
?    C-Tick
?    EN55022 Class B
?    EN55024
?    EN61000-3-2,3
?    FCC Class B
?    GOST-R
?    ICES-003 Class B
?    IEC 60950-1 / EN60950
?    KCC
?    NOM
?    S Mark
?    STB
?    UkrSEPRO
?    VCCI
?    ZIK

Physical Characteristics
Width: 10.31" (261.9mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)

Related Products
Options
?    ZebraNet Wireless Plus Print Server
?    ZebraNet Internal Wireless Plus (Discontinued)
?    Internal IPv6 Print Server
?    IBM Twinax interface
?    IBM Coax interface
?    Rewind with peel
?    Cutter
?    Bi-fold media door with clear panel
?    Media supply spindle for 40 mm cores
?    64MB Flash Memory with ZPL II and XML (with element out detection)
?    64MB Flash Memory with ZPL II and XML (without element out detection)
?    16MB SDRAM (Printhead element out detection) with ZPL II and XML
?    Scalable and international fonts
?    Applicator interface
?    ZebraDesigner
?    ZebraDesigner Pro
?    ZebraDesigner for XML
?    ZebraNet Bridge
?    Enterprise Connector
?    ZebraNet b/g Print Server
Communication and Interface Capabilities
?    USB 2.0 port (12 Mbits per second)
?    RS-232C/422/485 multi-drop (optional adaptor)
?    High-speed, bi-directional, IEEE 1284 parallel interface
?    ZebraNet Wireless Plus Print Server
?    ZebraNet 10/100 Print Server
?    IBM Twinax interface
?    IBM Coax interface
?    Applicator interface
?    IPV6 Print Server
?    ZebraNet b/g Print Server

Programming Languages
Core programming languages: ZPL II, ZPL, XML

barcodes/Symbologies
Linear Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Codabar
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
Aztec
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
?    Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
?    Smooth scalable font (CG Triumvirate? Bold Condensed) is expandable dot-by-dot, height and width independent
?    IBM? Code Page 850 International Characters
