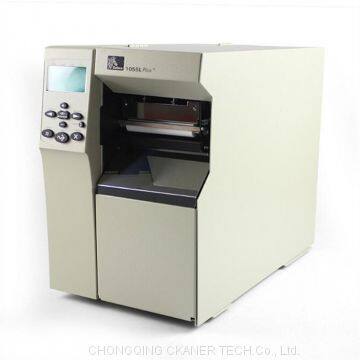

Zebra 105SL/105SL PLUS parallel serial thermal barcode zebra label printer

Zebra 105SL/105SL PLUS parallel serial thermal barcode zebra label printer

When economical and reliable high-performance printing is required, the rugged 105SLPlus is the right choice. Building on the legacy of Zebra's proven high performance printer design, the 105SLPlus provides high speed printing, a multitude of connectivity options, and all-metal construction to withstand tough use.

Industry
Government
Healthcare
Manufacturing
Consumer Goods
Transportation & Logistics

Used For:
?    Asset Management
?    Cross Docking
?    Document & Records Management
?    Inventory Management
?    Lab Sample Tracking
?    Receiving/Shipping
?    Reverse Logistics
?    Work-in-Process Tracking
?    Compliance Labeling
?    Dietary
?    Information Labels
?    Medical Record Labeling
?    Order Labeling
?    Photo Processing Labels
?    Prescription Labeling
?    Quality Control

Standard Features
?    Print Methods: Direct thermal and thermal transfer
?    Resolution: 203 dpi or 300 dpi

More Standard Features
?    Full-function front panel and large multilingual back-lit LCD display — with user-programmable password protection
?    Thin film printhead with Element Energy Equalizer? (E3?) for superior print quality
?    8 MB Flash memory—including 2 MB user-available non-volatile memory storage for downloadable objects
?    Serial RS-232 and bi-directional parallel ports—with auto detect
?    USB 2.0
?    Dual media sensors—transmissive and reflective, selectable through software or front panel
?    Internal ZebraNet 10/100 Print Server—supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks.

Printer Specifications
Resolution:
?    203 dpi (8 dots/mm)
?    300 dpi (12 dots/mm)

Memory:
?    Standard: 16 MB SDRAM; 8 MB Flash

Print width:
?    4.09" (104 mm)

Print length:
?    203 dpi: 105"/3810 mm (with standard memory)
?    300 dpi (optional): 100"/2540mm (with standard memory)

Print speed:
?    203 dpi: 12"/305 mm per second
?    300 dpi: 10"/254 mm per second

Media Characteristics
?    Media types: continuous, die-cut, or black mark, notch
?    Media thickness (label and liner): 0.003"/0.076 mm to 0.012"/0.305mm
?    Maximum media roll size: 8.0"/203 mm O.D on a 3"/76 mm I.D. core
?    Media width (label and liner):  0.79"/20 mm to 4.5"/114 mm
?    Maximum non-continuous label length: 39"/991 mm

Ribbon Characteristics
?    Standard Lengths: 1476'/450 m or 984/300 m
Provides 2:1 and 3:1 media roll to ribbon ratios
?    Maximum ribbon roll size: 3.2'/81.3 mm OD on a 1.0'/25.4 mm I.D. core
?    Ribbon wound coated-side out
?    Ribbon width: 0.79'/20 mm to 4.33'/110 mm

Operating Characteristics
Environmental
Operating environment:
?    Thermal transfer = 40° F/5° C to 105° F/40° C
?    Direct thermal = 32° F/0° C to 105° F/40° C
?    20% to 85% non-condensing relative humidity

Storage/Transportation environment:
?    – 40° F/-40° C to 140° F/60° C
?    5% to 85% non-condensing relative humidity

Electrical
?    Universal power supply with power-factor correction 100-240 VAC, 47–63 Hz

Agency Approvals
?    IEC 60950-1,  EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
?    Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC,  and UkrSEPRO

Physical Characteristics
Width: 10.31" (261.9 mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)

Related Products
Options
?    300 dpi
?    Cutter and catch tray
?    Media rewind spindle — internal finished roll rewind or passive-peel with liner take-up spindle 64 MB
?    On-Board Linear Flash Memory (factory installed only)
?    Scalable and international fonts

Communication and Interface Capabilities
?    ZebraNet? b/g Print Server (internal)

Programming Languages
Core programming languages: XML,ZPL I, ZPL II

barcodes/Symbologies
?    Barcode ratios: 2:1, 7:3, 5:2, and 3:1
?    Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
?    2-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics
?    Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
?    Smooth scalable font ? (CG Triumvirate? Bold Condensed) is expandable dot-by-dot, height and width independent
?    IBM Code Page 850 International Characters
