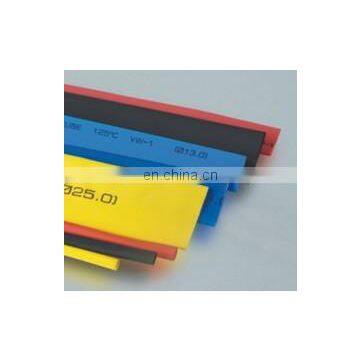

Heat shrinkable tube, plastic tube, insulating tube

FOB Price

US$ 0.02 - 0.2 / Meter

10000 Meters(Min. Order)

Port Ningbo Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	RD
Type	Insulation Tape		Material	PE

Product Description

Non-Halogen flame-retardant (environment-friendly) thermal shrinkable bushing boasts Good flame retardation and Not contain halogen, when burning, with low smoke and no drop. Not contain heavy metal and conforms to SGS standard.
Application: -55℃~125℃.Initial shrinkage temperature:70℃; super-thin fully shrinkage temperature 105℃; and ordinary fully shrinkage temperature:125℃ . Standard Color: Black, Red, Yellow, Green, Blue and White and special colors are upon the customers’needs.
Material: made of PE

Model	Dimension befor shrinking		Diameter after shrinking		Standard packaging (m/disc)	Application (mm)
Model	Internal diameter	Wall thickness	Internal diamenter	Wall thickness	Standard packaging (m/disc)	Application (mm)

Φ0.8	1.0±0.2	0.2±0.05	0.4±0.1	0.22±0.05	200	0.6-0.8
Φ1.0	1.4±0.3	0.2±0.05	0.4±0.1	0.28±0.05	200	0.75-0.9
Φ1.5	1.9±0.3	0.2±0.05	0.6±0.1	0.32±0.05	200	0.95-1.4
Φ2.0	2.4±0.3	0.25±0.05	0.9±0.1	0.35±0.05	200	1.11-1.8
Φ2.5	2.9±0.3	0.25±0.05	1.1±0.1	0.38±0.05	200	1.35-2.3
Φ3.0	3.4±0.4	0.25±0.05	1.4±0.1	0.40±0.05	200	1.6-2.7
Φ3.5	3.9±0.4	0.25±0.05	1.6±0.1	0.42±0.05	200	1.85-3.2
Φ4.0	4.5±0.4	0.25±0.05	1.8±0.1	0.45±0.05	200	2.1-3.6
Φ4.5	4.8±0.4	0.25±0.15	1.9±0.1	0.50±0.15	100	2.35-4.0
Φ5.0	5.4±0.4	0.25±0.15	2.3±0.1	0.55±0.15	100	2.6-4.5
Φ6.0	6.4±0.4	0.28±0.15	2.8±0.2	0.55±0.15	100	3.1-5.4
Φ7.0	7.4±0.4	0.28±0.15	3.3±0.2	0.55±0.15	100	3.7-6.3
Φ8.0	8.4±0.5	0.28±0.15	3.8±0.2	0.55±0.15	100	4.2-7.2
Φ9.0	9.4±0.5	0.30±0.15	4.3±0.2	0.55±0.15	100	4.7-8.0
Φ10	10.5±0.5	0.30±0.15	4.8±0.2	0.55±0.15	100	5.2-9.0
Φ11	11.5±0.5	0.30±0.15	5.3±0.2	0.60±0.15	100	5.7-10
Φ12	12.5±0.5	0.30±0.15	5.7±0.3	0.60±0.15	100	6.2-11
Φ13	13.5±0.5	0.33±0.15	6.2±0.3	0.60±0.15	100	6.7-12
Φ14	14.5±0.5	0.35±0.15	6.7±0.3	0.60±0.15	100	7.3-13
Φ15	15.5±0.6	0.38±0.15	7.2±0.3	0.65±0.15	100	7.8-14
Φ16	16.5±0.6	0.38±0.15	7.7±0.3	0.65±0.15	100	8.3-15
Φ17	17.5±0.6	0.38±0.15	8.2±0.3	0.65±0.15	100	8.8-16
Φ18	19.0±0.6	0.40±0.15	8.7±0.3	0.65±0.15	100	9.3-17
Φ20	21.0±0.8	0.40±0.20	9.7±0.3	0.75±0.20	100	10.4-19
Φ22	22.8±0.8	0.42±0.20	10±0.1	0.75±0.20	100	11.4-21
Φ25	25.8±0.8	0.45±0.20	11±0.1	0.75±0.20	50	12.8-24
Φ28	28.8±0.8	0.45±0.20	13±0.1	0.75±0.20	50	14.4-29
Φ30	30.8±0.8	0.45±0.20	14±0.1	0.75±0.20	50	16-29
Φ35	35.8±0.8	0.50±0.20	16±0.1	0.85±0.20	50	18-34
Φ40	42.0±1.0	0.50±0.20	19±0.1	0.85±0.20	50	21-39
Φ50	51.0±1.0	0.50±0.20	24±0.1	0.85±0.20	50	26-49
Φ60	61.0±1.0	0.65±0.20	29±0.1	0.85±0.20	25	35-55
Φ70	71.0±1.0	0.65±0.20	33±2.0	1.00±0.20	25	40-65
Φ80	81.0±1.0	0.65±0.20	37±2.0	1.00±0.20	25	45-75
Φ90	91.0±1.0	0.65±0.20	43±2.0	1.00±0.20	25	50-88
Φ100	102.0±2.0	0.65±0.20	48±2.0	1.00±0.20	25	55-95
Φ120	122.0±2.0	0.80±0.20	58±2.0	1.50±0.20	15	65-115
Φ150	152.0±2.0	0.80±0.20	73±2.0	1.50±0.20	15	80-145
Φ180	182.0±2.0	0.80±0.20	88±2.0	1.50±0.20	15	95-175
