Digital Rubber Mooney Viscometer

Rubber Mooney Viscosity Tester

MODEL NO.

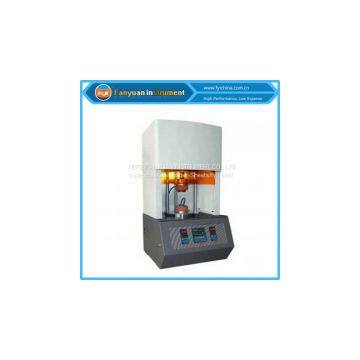

DW5330 Rubber Mooney Viscosity Tester

APPLICATION

DW5330 Rubber Mooney Viscosity Tester

is used for measuring viscosity and relaxation of base rubber, raw rubber stock or rubber mass prevulcanization properties, it also used for measuring viscosity in Mooney value for compounded or uncompounded unvulcanized natural, synthetic or regenerated rubber.

This instrument has excellent performances including automatic calibration, higher stability. It can perform the following tests: viscosity, scorch and stress relaxation.

STANDARDS

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

FEATURES

• 3 testing item: prevulcanization, Mooney viscosity, stress relaxation;

• Automatic calibration, high stability;

• Excellent repeatability and smoothness of curves;

• Steadily temperature control, high heating speed;

• Excellent heat preservation, rapid temperature recovery;

• Powerful function of processing software, easy to operate;

• Automatically data store, possible to printout Excel reports.

KEY SPECIFICATION

• Temperature range                       room temperature~200℃

•  Temperature fluctuation in die:              ≤±0.1℃

•  Resolution of temperature                  0.1℃

• Heating speed                           16~25℃/min

• Torque range                            0~200Mv

• Torque resolution                         0.01Mv

•  Rotor speed                             2±0.02r/min

•  Dimensions                             520×570×1000mm;

• Weight                                 about 120kg;

•   Power                                  AC220~230V, 50/60 HZ, 3A





SOFTWARE USER INTERFACE



Testing result of experiment for Mooney viscosity :

MI - Initial Mooney viscosity.
M1＋4 - Normal Mooney Viscosity, 1min for preheating, 4mins for testing.

Me - Mooney value obtained upon completion of test.
TR80 – The time when stress relaxation reaches to 80% of Mooney viscosity.
MRe - Mooney viscosity at the end of stress relaxation.
MV-t - Mooney viscosity at time t.




Testing result of experiment for prevulcanization :

MI - Initial Mooney viscosity.
ML - Minimum Mooney viscosity.
M5 - ML＋5 Mooney viscosity.

M35 - ML＋35 Mooney viscosity.
t5 - Mooney scorch time when the Mooney viscosity is M5, unit: min.

t35 - Mooney scorch time when the Mooney viscosity is M35, unit:min.
MV-t - Mooney viscosity at time t.

△t30 – Increment of vulcanizing time, △t30=( t35- t5)

STANDARD CONFIGURATION

No.	Item	Quantity
1	Main machine	1 set
2	Base of main machine	1 set
3	Computer	1 set
4	Printer	1 set
5	Allen wrench	1 set
6	Power cord	1 pcs
7	Signal wire	1 pcs
8	Fuse (3A)	10 pcs
9	Software CD and driver	1 pcs
10	Copper brush	1 pcs
11	Tweezers	1 pcs
12	Cellophane (0.02mm thick)	5 pack
13	O-ring	50 pcs
14	Weight	1 pcs
15	Large rotor( in main machine)	1 pcs
16	Small rotor	1 pcs
17	Wirerope( in main machine)	5 m
18	Sensor bars( in main machine)	1 pcs
19	Air pipe	2 m
20	Product qualification certificate	1 copy
21	User manual	1 copy

Good service and quantity .

 A. We supply one year warranty and 12 hours service per day .

 B. Our skilled engineer can go to your company for installation service

 C. Our  Rubber Mooney Viscosity Tester

adopts top quality material including imported parts, most of the critical component are adopting first class brand .

 D. Our company passed ISO and have strict quality control before delivery goods

 E. We can customized and also supply OEM service

 F.. We also can supply different language user's manual . The

    user manual of Digital Rubber Mooney Viscometer  can help you operate our machine easily.

 G ; we supply operation video if customer need it . .

 Payment and delivery :

A..We accept payment  such as TT , Western union, and L/C,DP etc . you can contact with us if you need

B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .
