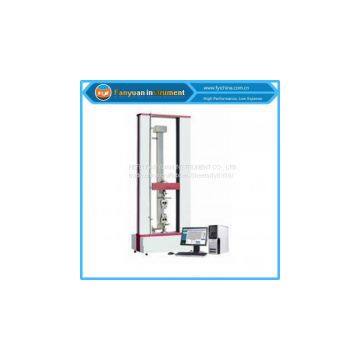

MODEL : UTM-1422 Film Tensil Strength Machine

Application:

UTM-1422 Film Tensil Strength Machine is designed for a wide range of applications, such as elastic modulus for tension, elastic modulus for bending, compression modulus, yield strength, tensile strength, breaking strength, elongation, compression stress, compression strain, shearing, peeling, tearing, puncture tests of thermosetting and thermoplastic plastics. It is suitable for engineering plastics, reinforced plastics, modified plastics, plastic profile, plastic pipe, sheet and film, etc.

Related Standards:

   Note: this Film Tensil Strength Machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features:

1.Precise force measurement with load cell of high quality and advanced digitalization technology to ensure the accuracy of measuring force prior to 0.5%;

2.Wide test speed range of 1~5000mm/min with an error of less than 1% and stable operation; the return speed of 4000mm/min with high test efficiency;

3. Advanced high speed controlling system to ensure the instrument run stable at a constant high speed, thereby, the accuracy and repeatability of test results are improved;

4.  Wide stroke up to 900mm, applicable to various materials;

5.Intelligent load cell with intelligent and digitalized technology can self-recognize its installation state, property, capacity and oefficient; no need to be replaced manually;

5.Well interchangeability between different load cells and no need of on-site calibration;

6. Humanized system-the tester can randomly adjust the crosshead's position so as that operations can be done as he wills, which greatly enhances the test efficiency;

 Powerful software support;

Key Specification:

1. Capacity:                                10000N

2. Load Cell Accuracy:                        grade 0.5

3.Load Measurement Accuracy:                ±0.5% for 2%~100%F.S.

4. Deformation range                         0.2%~100%F.S.

5. Deformation error                          ≤±0.5%

6.Deformation resolution                      0.0125mm

7.Bending deflection range and accuracy         15mm, 0.005mm

8.Bending deflection resolution                 0.001mm

9.Displacement resolution and error              0.001mm,≤±0.5%

10,Cross beam speed                           0.001～500mm/min

11.Effective width                             400mm

l2.Max. tensile travel                           900mm

13. Power supply                     220VAC-15%～220VAC+10% 50Hz 1kVA

14,. Instrument Dimension:                     700mm×470mm×1850mm(L×W×H)

15.Instrument Weight:                          240kg

Standard configuration:
