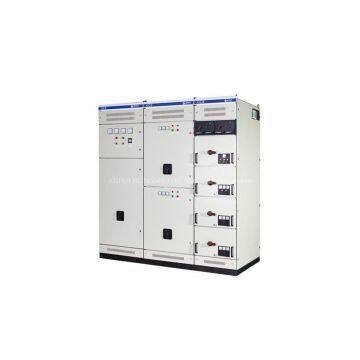

GCK low-voltage draw-out Switch Cabinet

Output Power:  401- 500W

Output Type:     Triple

Input Voltage:   380V

Output Frequency:    50~60Hz

 Specifications

GCK Low Voltageelectrical distribution cabinet 1.Three-phase 380V 50Hz 2.Protectionclass:IP30, IP40, IP54

GCK Low Voltage electrical distribution cabinet

1.Three phases 380V 50Hz

2.Protection class:IP30,IP40, IP54

1.ProductDescription and Applications:

GCK Low voltage draw-out type switch cabinet is dividedinto six categories:receiving electric cabinet,bus tie cabinet,feedingelectrical cabinet,motor control cabinet,power switch cabinet,power factorcompensation cabinet.

This product is widelyused in power plants,metallurgical, petrochemical,textile and light industry,port terminals,buildings, hotels and other places.It applies to thedistribution and motor control of power system with AC, three-phase four-wireor five-phase three-wire,380V,50Hz.

2.Operating environment:

1)Ambienttemperature:-5°C~40°C;

2)Altitude:≤2000Meter;

3) Relative humidity:≤90%,iftemperature is +20°C;≤50%,if temperature is +40°C;

4)The sits of use shouldno dust, no direct sunlight, no rain, no corrosion,no severe vibration.

5)Vertical installation (inclination≤5°)

3.Model Naming Rule:

Model Nunber: G C K-----x---x

Explanation No.: 1 2 3 45

1:Closed type powerdistribution cabinet;2:Draw-out type3:Control center;4:Main circuit designscheme code;5:Auxiliary circuit design scheme code
