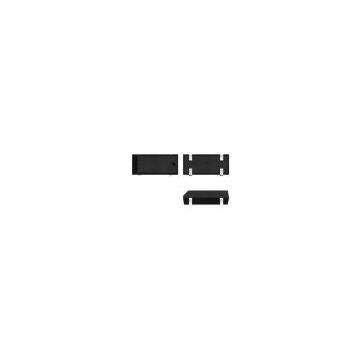

3.8*8mm SMD crystal oscillator
- 10000000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
| Place of Origin | China | |
| Model Number | WX3 |
Product Description
Frequency:30KHz—350KHz
Frepuency Tolerance(at25°C): 5ppm—100ppm
ESR:30KHz—40KHz:40Kohm Max
40KHz—60KHz:30Kohm Max
60KHz—70KHz:25Kohm Max
70KHz—200KHz:22Kohm Max
200KHz—350KHz:20Kohm Max
Turnover Temperature:255°C
Frequency Temperature Curve:-0.034(0.006)ppm/°C2
Storage Temperatue Range: -55°C to +125°C
Operating Temperature Range: -10°C—+60°C , -20°C—+70°C,-40°C—85°C,or Specity
Shunt Capacitance(Co):1.5pF Typ
Dynamic Capacitance(C1):3.0fF Typ
Drive Level(Typical):1μW Max
Load Capacitance(CL):6.0pF—12.5Pf,or specify
Aging @25°C1 st year(Max): 3ppm,5ppm /year
