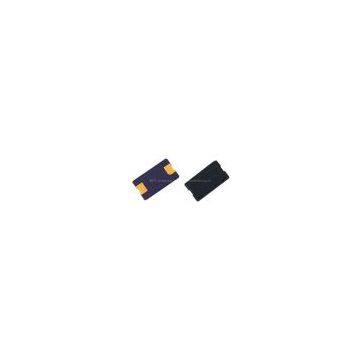

8.0*4.5mm
- 10000000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | WTL | Place of Origin | China | |
| Model Number | TG8 |
Product Description
Frequency Range:8.000MHz to 80.000MHz
Load Capacitance(CL):Series, 16pF, 20pF,30pF, 32pF,or specify
Frepuency Tolerance (at 25°C) :10ppm—50ppm or specify
Operating Temperature Range:-10°C—+60°C(standard),-20°C—+70°C,-40°C—85°C,or Specity
Frepuency Stability Over Operating Temperature range:10ppm—50ppm or specify
Storage Temperatue Range: -55°C to +125°C
Shunt Capacitance(Co):5.0pF Max
Drive Level(Typical):10μW—100μW
Aging @25°C1 st year(Max): 3ppm, 5ppm /year
Shock Resistance:Drop test of 3 times on 2mm stainless plate from 75cm height
