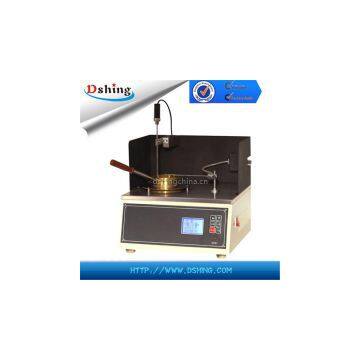

DSHD-3536-1 Cleveland Open-Cup Flash Point Tester

A:Brief description:

   DSHD-3536-1 Cleveland Open-Cup Flash PointTester is designed according the standards GB/T3536-2008 Test Method for FlashPoint and Fire Point of Petroleum Products - Cleveland Open Cup Method,ASTM D92and ISO2592.

   DSHD-3536-1 Cleveland Open-Cup Flash PointTester is applies to determine the flash point and fire point of petroleumproducts which flash points higher than 79 ℃ except fuel oils.

B:Main advantages:

   1. It adopts technology of single chip machineand LCD screen, English man-machine interface. The heating device iscontinuously stepless adjustable, Easy to set parameters.

   2. The LCD screen has prompt menu, prompttype input for operation interface. It shows set parameters and real-timedisplay sample temperature and other parameters. Press the record key whenflash point appearing. The screen will display and save flash point value.

   3. It is newly design, having smallstructure. Stainless steel working table make it elegant and beautiful. Theoperator can do determination as long as connecting with coal gas or othercivil gas. Easy to use and results are exact.

   4. It is equipped with wind-shelter andflame extinguishing cover which are accord with requirements of test.

   5. Accurate heating rate. The instrument cando test automatically, Operator only need to observe the flash point appearing.The cost performance is high.

C: Main technical specifications and parameters

    1.Power supply:  AC（220±10%）V·50Hz.

    2.Heating device: Electric furnace heating,no naked fire, explosion prevented.The power is adjustable from 0W to 600W. Themax heating temperature can reach 400℃.

    3.Temperature control: Single chipmachine.The heating rate can meet the requirement of GB/T 3536-2008 and ASTMD92.

    4.Temperature display: LCD screen showstemperature parameters. The range is 0℃～400℃, accuracy is 0.1℃.

    5.Flame application device: Search theflash point automatically.

    6.Temperature sensor: PT100 RTD

    7.Ignition device: (1) Ignition source:coal gas(or civil gas,the same below)

                             (2) Bore diameterof spout: 0.8mm

    8.Ambient temperature: (-10～50)℃

    9.Relative humidity: ≤85%

    10.Overall power consumption: ≤ 650W

11.Overall dimension: 340mm*320mm*450mm (L*W*H,Temperature sensor is included)
