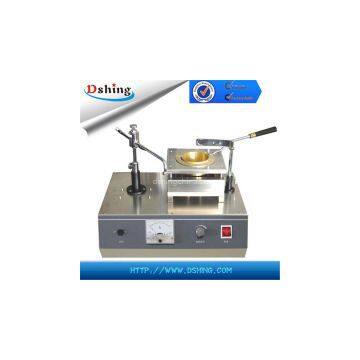

DSHD-3536 Cleveland Open-Cup Flash Point Tester

A:Brief description:

   DSHD-3536 Cleveland Open-CupFlash Point Tester is designed according the standards GB/T3536-2008 TestMethod for Flash Point and Fire Point of Petroleum Products - Cleveland OpenCup Method,ASTM D92,ISO2592.

    DSHD-3536 Cleveland Open-Cup Flash PointTester is applies to determine the flash point and fire point of petroleumproducts which the flash points higher than 79 ℃ except fuel oils.

B:Main advantages

  1.The instrument adopts special heating furnace to ensure the safety oftest. The heating power is continuously adjustable. It can meet requirements oftest.

   2.The instrument adopts desktop structure. Thestainless steel working table and furnace shell make it beautiful and elegant.

   3.The instrument is fully self-containedcomplete. The operator can do determination as long as connecting with coal gasor other civil gas.

   4.The instrument is equipped with flameextinguishing cover which accord with requirements of test.

C: Main technical specifications and parameters

    1. Power supply:  AC（220±10%）V, 50Hz.

   2. Heating device: Quartz tube furnaceheating, no naked fire, explosion prevented.    The power is adjustable from 0W to 600W.

   3. Flame appilication device: Search theflash point automatically.

   4. Thermometer: (-6～400)℃, division value is2℃.The technical specification is accord with GB/T 514.

   5. Ignition device: (1) Ignition source:coal gas(or civil gas, the same below)

                  (2) Bore diameter of spout:0.8mm

   6. Ambient temperature: (-10～50)℃

   7. Relative humidity: ≤85%

   8. Overall power consumption: ≤650W

   9. Overall dimension:350mm*290mm*350mm(L*W*H, Thermometer is not included)
