【YBS Nozzle】offer B3/8GGD-SS9.5,9.5 nozzle,GGD full cone spray nozzle and other products.Tel:86-0769-81609791

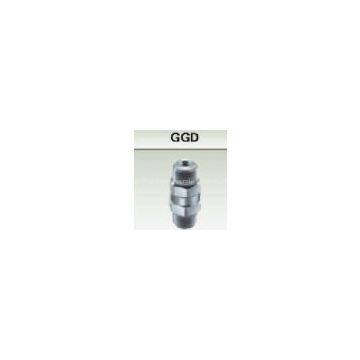

B3/8GGD full cone spray nozzle has a special design which mimimize the clogging with a large,unobstructed free passage.It can produce solid cone-shaped spray with round impact area.

Although the mechanism of atomization of a liquid jet atomization of high-speed liquid jets with a wide range of applications in engineering , but people understand the details of the atomization process and mechanism of the low-speed jet Queyuanburu crushing separatist know so deep . So far, several have been proposed to explain about the atomization mechanism , but none of which can be entirely convincing and subjected to experimental testing.

( 1 ) said aerodynamic interference aerodynamic interference say is more recognized as a hypothesis about the mechanism of atomization , it low to the high-speed jet breakup theory jet promotion. Castleman in 1932 proposed the aerodynamic interference , said he believes that due to the aerodynamic interference between the jet and the surrounding gas , the jet surface fluctuations unstable. As the speed increases speed , nozzle unstable wavelength waves are getting shorter, so the jet spread into a mist . There are also some researchers using linear perturbation analysis, starting from the analysis of the stability of axisymmetric small perturbations on the jet surface waves , ignoring the gas viscosity, and is assumed to be described by a variety of gas and liquid velocity and pressure perturbation N-S linearized equations , solving equations introducing the stream function , and ultimately get the contact rate and wavelength of the wave function of the relationship . Ranz et al based on Taylor 's theory of fluid stability that the droplet size depends on the wavelength of the most unstable wave , and an expression derived spray cone angle . Reitz and Bracco , who summarized the previous research on two-dimensional axisymmetric unstable linear perturbation theory , put forward a unified theory of first-order linear Breakup of liquid derived dimensionless dispersion equation , the numerical solution of fitting out the fastest growing unstable wavelength and frequency of the wave equation .

( 2 ) said in a study of the turbulent perturbation pressure atomized spray in the past have shown that the jet spray characteristics affected by the exit of turbulence. Dejuhasz et al jet nozzle atomization process occurs in the interior , and the turbulence of the liquid itself may play an important role. Lee atomization pressure study showed that the rate of mixing and atomization quality with both the outlet of the jet flow is laminar or turbulent change . Schweitzer considered , for turbulent pipe flow radially inner nozzle movement speed of the nozzle causes the liquid at the nozzle outlet immediately disturbed , resulting in atomization. Grant, Phinney observed jet stability and fragmentation occurs equally affected by the exit of the jet turbulence . They believe the turbulence generated in the flow channel features a large impact on the jet breaking even relatively short orifice also shows the disturbance caused by turbulence flow reattachment point after separation zone generated .

( 3 ) disturbance of cavitation cavitation said Bergwerk first proposed the idea , said the disturbance . He believes that the turbulence of the nozzle velocity in the range of Reynolds numbers discussed together with insufficient atomization phenomenon , large-amplitude pressure inside the nozzle cavitation generated by the fluctuation is the cause of the atomized spray pattern . Hiroyasu that the distinction is completely spray and spray is sprayed incomplete internal hole cavitation flow field plays an important role in promoting the atomization . Nurick proof of circular orifices , the bubble will cause the sharp edges are formed substantially decrease the rate of mixing of the spray , but the rectangular orifices 10 kinds of effects which are not present. Tamaki and Hiroyasu , who use the nozzle inlet and placed a tiny wire mesh at its outlet provided with a small gap to enhance the atomization method , received good results. Screen and crannies of the role is to promote the vacuoles are formed and collapse .

Ordering information of B3/8GGD full cone spray nozzle(YBS Brand)

Thread: B=BSPT

Materials:None=brass                             I=mild steel                   SS=303stainless steel

3/8 B3/8GGD-9.5            B3/8GGD-I9.5              B3/8GGD-SS9.5

B3/8GGD-15                        B3/8GGD-I15   B3/8GGD-SS15

There are many types of full cone spray nozzle (YBS Brand) which can match with you industrial applications.
